Description:

Specifications:

• Air Filter: Standard Kawasaki Air Cleaner
• Anti Scalp Wheels: 3 Standard
• Armrests: Optional
• Bagger Capacity: 4.9 bushels
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Box Dimensions: 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm
• CARB Compliant: Not CARB Compliant
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 x 16.5 cm - 15.2 cm) Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: Standard Suspension
• Cooling System: Air Cooled
• Crankshaft: 1" (25 mm) w/Steel Protector
• Cup Holder: Standard
• Cutter System: Steel Cutting Blade

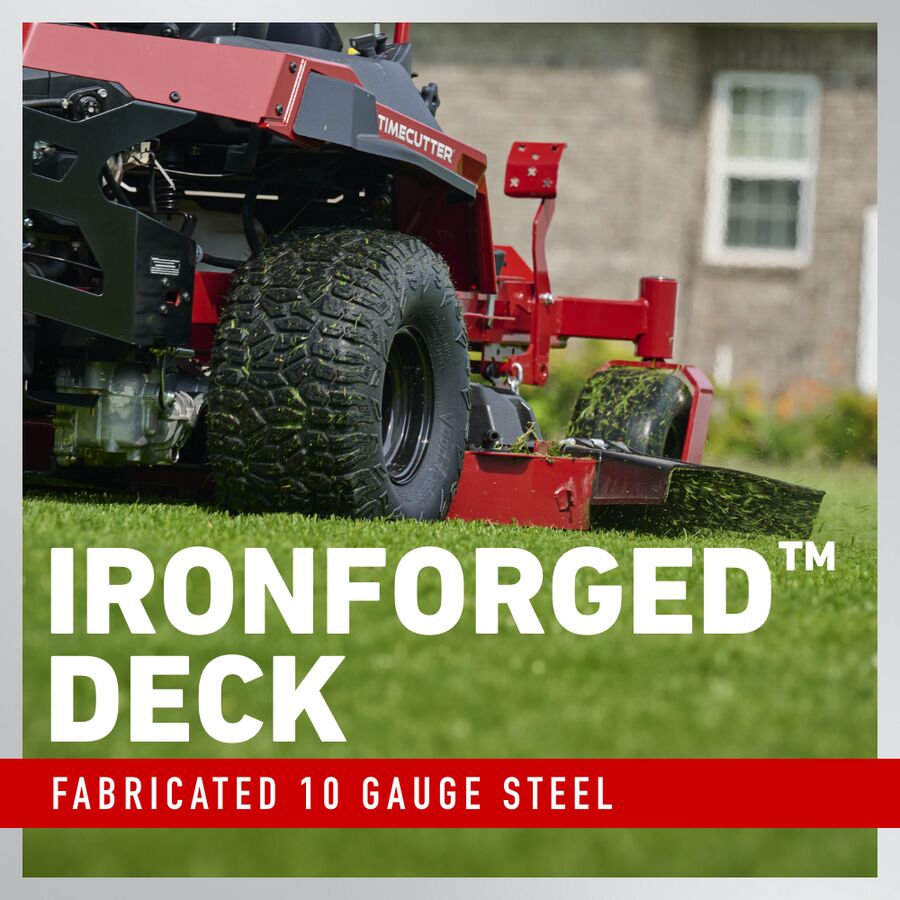

• Deck Design: 10-Gauge steel IrongForged®
• Deck Material: 10 Gauge Steel
• Deck Size: 60 in. / 152 cm
• Discharge Chute: Side
• Drive System: Hydrostatic
• Drive Tires: 20 in. x 10 in. - 8 in. (51 cm x 26 cm - 20.3 cm)
• Drive Type: Rear-Wheel Drive

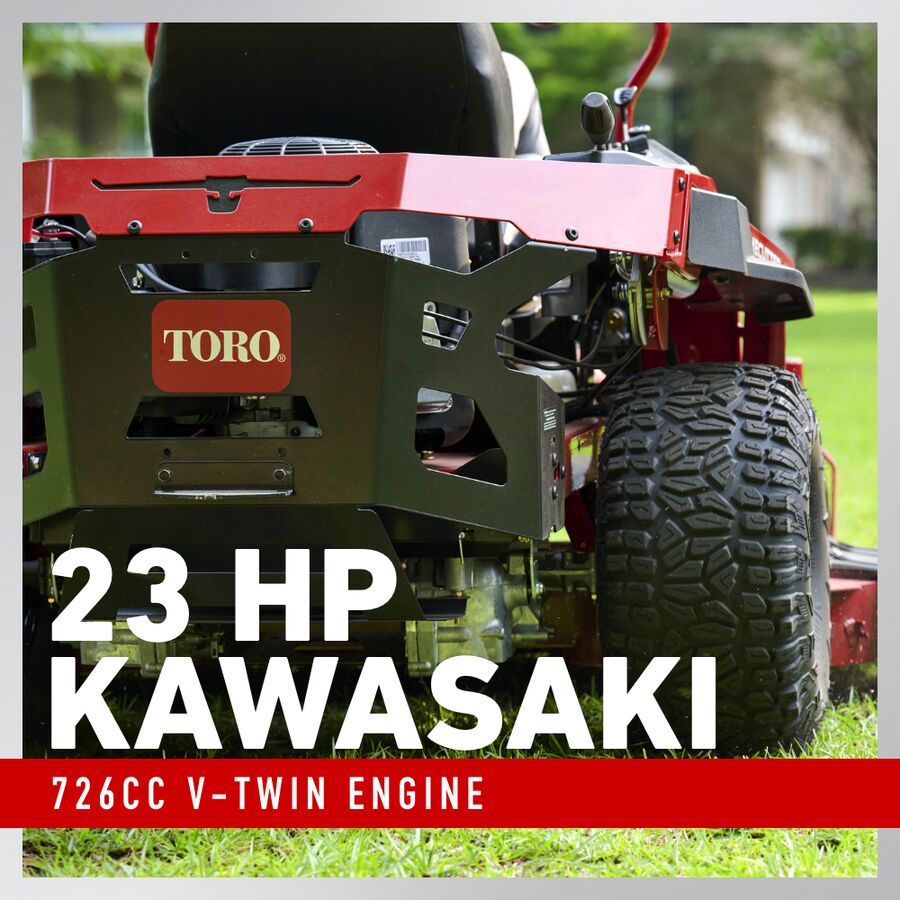

• Engine: 23 hp Kawasaki FR691V 726cc
• Engine Brand: Kawasaki
• Engine Displacement (cc): 726 cc
• Engine Horsepower: 23.0 hp
• Engine Power (kW): 17.2 kW
• Foot Operated Height of Cut: Standard
• Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
• Forward Mowing Speed: Up to 7.0 mph / 11.2 kph
• Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Fuel Type: Gasoline
• Greasable Bearings: Yes
• Height of Cut: 1.0 - 5.0 in. / 2.5 - 12.7 cm
• Hitch Bracket: Standard
• Hour Meter: Standard Hour Meter
• Hydraulic Drive: Standard
• Lighting: Optional
• Number of Blades: 3
• Product Type: TimeCutter Max
• Product Use: Residential
• Recommended Oil Type: 10W-30
• Roll-Over Protection (ROPS): Optional
• Seat: 19" Gaming Style
• Spindle Bearings: Maintenance-free
• Spindle Housing: Cast-Aluminum
• Start Type: Electric
• Steering Controls: Twin Lever
• Steering Dampeners: Standard Dampers
• Terrain Type: Flat with Obstacles
• Tires: 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
• Transmission: Dual Hydrostatic HG-ZT2800
• Washout Port: Standard

Product Specs:

• Engine
• Engine Manufacturer: Kawasaki
• Horse Power: 23.0 hp
• Engine Type: 23 hp Kawasaki FR691V 726cc
• General
• Transmission: Dual Hydrostatic HG-ZT2800
• Wheel Size: 20 in. x 10 in. - 8 in. (51 cm x 26 cm - 20.3 cm)
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Deck
• Deck Size: 60 in. / 152 cm
