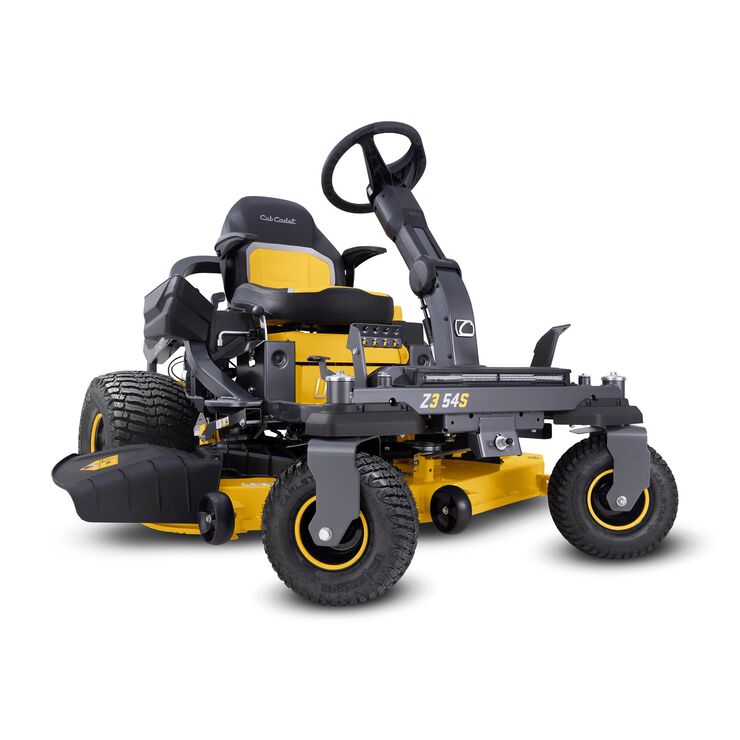

What is the Cub Cadet Ultima Z3 54S?
The Cub Cadet Ultima Z3 54S is a 54-inch steering-wheel zero-turn mower designed for improved stability, precise control and confident mowing on sloped or uneven residential properties.
What is the model number of the Cub Cadet Z3 54S?
The model number is 17CIGGY3A10.
Is the Cub Cadet Z3 54S a zero-turn mower?
Yes. It combines true zero-turn maneuverability with steering-wheel control and Synchro-Steer four-wheel steering.
What is Synchro-Steer technology?
Synchro-Steer coordinates the front and rear wheels through a steering wheel to provide zero-turn performance with greater directional control and stability.
How is Synchro-Steer different from lap-bar steering?
Traditional zero-turn mowers use two lap bars to control the rear wheels. Synchro-Steer uses a familiar steering wheel and maintains active control of all four wheels.
Is the Cub Cadet Z3 54S good for hills?
Yes. Cub Cadet designs the mower for slopes of up to 20 degrees when operated according to the manufacturer’s safety instructions.
Why is Synchro-Steer helpful on slopes?
Four-wheel control helps the mower maintain traction, track in the intended direction and provide greater steering authority on sloped terrain.
Can the Cub Cadet Z3 54S mow straight across a hillside?
Synchro-Steer is designed to improve straight-line control on hillsides, but operators must still follow Cub Cadet’s slope limits and safe-mowing procedures.
What conditions can affect mower stability on slopes?
Wet grass, loose soil, worn tires, hidden obstacles, sudden steering movements and excessive speed can all reduce traction and stability.
What engine does the Cub Cadet Z3 54S use?
It is powered by a 23 HP Kawasaki FR Series twin-cylinder engine.
What are the benefits of the Kawasaki FR Series engine?
The Kawasaki FR Series is designed to provide smooth V-twin power, consistent performance and dependable operation for demanding residential mowing.
Is the Kawasaki engine air cooled?
Kawasaki FR Series mower engines are air cooled.
Does the Cub Cadet Z3 54S have electric start?
The supplied information does not list the starting system. The exact specification should be confirmed using model number 17CIGGY3A10.
How wide is the cutting deck?
The Cub Cadet Z3 54S has a 54-inch cutting deck.
What size property is the Cub Cadet Z3 54S suitable for?
Its 54-inch deck makes it well suited to large residential lawns, acreages and properties where wide coverage and hillside control are both important.
What is the AeroForce Max cutting deck?
AeroForce Max is Cub Cadet’s heavy-duty fabricated deck design, engineered for strong airflow, efficient clipping movement and a clean, even finish.
What is the cutting deck made from?
The mower uses an 11-gauge fabricated steel deck with reinforced leading edges.
What are the benefits of a fabricated mower deck?
A fabricated deck is welded from separate pieces of steel, giving it added rigidity and durability compared with many lighter stamped decks.
Why are the leading edges reinforced?
The reinforced front edges help protect the deck from impacts, wear and damage encountered during regular mowing.
What kind of cut quality does the Z3 54S provide?
Its AeroForce Max deck is designed to deliver even cutting, strong airflow and consistent clipping distribution.
Can the Cub Cadet Z3 54S side discharge grass?
The deck is designed for efficient clipping discharge. Exact discharge and accessory configurations should be confirmed for the model.
Can the Cub Cadet Z3 54S mulch grass clippings?
A compatible mulch kit may be available separately. Confirm compatibility using model number 17CIGGY3A10.
Can the Cub Cadet Z3 54S use a bagger?
A compatible collection system may be available separately. Bagger compatibility should be confirmed for the exact 54-inch deck.
Can the Z3 54S handle thick or tall grass?
Its Kawasaki engine and fabricated deck provide strong cutting performance, although very tall, dense or wet grass may require a slower mowing speed or multiple passes.
How many cutting-height positions does the mower have?
The Cub Cadet Z3 54S offers 15 cutting-height positions.
What is the cutting-height range?
The cutting height can be adjusted from approximately 1 inch to 4.5 inches.
Why are multiple cutting-height settings useful?
They allow the operator to adapt the mower to different grass types, seasonal conditions and preferred lawn finishes.
What transmissions does the Cub Cadet Z3 54S use?
It uses dual Hydro-Gear ZT-2800 hydrostatic transmissions.
What is a Hydro-Gear ZT-2800 transmission?
The ZT-2800 is a serviceable integrated hydrostatic transaxle designed for smooth speed control and demanding residential mowing.
Are Hydro-Gear ZT-2800 transmissions commercial grade?
They are heavier-duty and more serviceable than many entry-level residential transmissions, but they are generally positioned below larger full-commercial hydraulic systems.
What are the benefits of dual hydrostatic transmissions?
Each rear wheel is powered independently, providing responsive control, smooth acceleration and zero-turn maneuverability.
Is the Cub Cadet Z3 54S rear-wheel drive?
Yes. Its dual hydrostatic transmissions independently power the rear drive wheels.
How fast does the Cub Cadet Z3 54S travel?
The mower can travel at speeds of up to 7 mph forward and 3.5 mph in reverse.
Is the Z3 54S easy to maneuver around obstacles?
Yes. Its steering-wheel zero-turn design allows precise turns around trees, garden beds, fences and other landscape features.
What are the benefits of steering-wheel control?
A steering wheel feels familiar to many homeowners and provides direct control of the front wheels, especially on hills and uneven terrain.
Can the Cub Cadet Z3 54S make a zero-radius turn?
Yes. Synchro-Steer allows true zero-turn maneuvering while maintaining steering control at the front wheels.
What is the mower frame made from?
The Z3 54S uses a reinforced 2-inch by 2-inch tubular steel frame.
What are the benefits of the tubular steel frame?
The frame provides strength, rigidity and support for the mower’s deck, engine and drive components during demanding use.
Is the Cub Cadet Z3 54S suitable for uneven terrain?
Yes. Its Synchro-Steer system, strong frame and wide stance are designed to improve control on moderately uneven residential properties.
Does the Cub Cadet Z3 54S have a high-back seat?
Yes. It includes a 20-inch cut-and-sew high-back seat.
Does the seat include armrests?
Yes. Armrests are included.
What is a head bolster?
The head bolster is the raised upper section of the seatback that provides additional support during longer mowing sessions.
Is the Cub Cadet Z3 54S comfortable for long mowing sessions?
Yes. Its high-back seat, head bolster, armrests and ergonomic controls are designed to improve operator comfort.
Does the Cub Cadet Z3 54S have headlights?
Yes. It includes an LED lightbar for improved visibility in lower-light conditions.
Can the mower be used after dark?
The LED lightbar improves visibility, but operators should only mow when there is enough light to clearly identify slopes, obstacles and hazards.
Will the Cub Cadet Z3 54S fit through a standard gate?
Many standard residential gates will not provide enough clearance. The mower’s total width will be greater than its 54-inch cutting width.
What should I measure before buying the Z3 54S?
Measure gates, pathways, storage doors, trailer ramps and the narrowest areas where the mower will operate.
Can the Cub Cadet Z3 54S be transported on a trailer?
Yes. Use a trailer with enough width, payload capacity, ramp strength and secure tie-down points for the mower.
Is the Cub Cadet Z3 54S suitable for small yards?
It is generally better suited to large residential properties. Smaller yards with narrow gates or tightly spaced landscaping may be easier to maintain with a narrower mower.
Is the Cub Cadet Z3 54S suitable for acreage owners?
Yes. Its 54-inch deck, Kawasaki engine and Synchro-Steer hillside control make it a strong option for acreage maintenance.
Is the Cub Cadet Z3 54S a commercial mower?
It is positioned as a heavy-duty residential mower with commercial-inspired components. Commercial use and warranty coverage should be confirmed before professional operation.
What is the difference between the Cub Cadet Z3 54S and Z2 50S?
The Z3 54S has a wider deck, heavier-duty frame and larger mowing footprint, while the Z2 50S is more compact and easier to maneuver through tighter access points.
Should I choose the Cub Cadet Z3 54S or Z2 50S?
Choose the Z3 54S for wider coverage and more demanding acreage mowing. Choose the Z2 50S for improved access and maneuverability around tighter landscaping.
How does the Z3 54S compare with a traditional lawn tractor?
The Z3 54S offers tighter turning, faster maneuvering and more efficient mowing around obstacles while retaining familiar steering-wheel control.
What warranty comes with the Cub Cadet Z3 54S?
It includes a three-year residential warranty, subject to Cub Cadet’s warranty terms and conditions.
Does the mower have a frame warranty?
Yes. The frame includes limited lifetime warranty coverage.
Is the deck shell covered by a separate warranty?
Yes. The deck shell includes limited lifetime warranty coverage.
What maintenance does the Cub Cadet Z3 54S require?
Routine maintenance includes checking engine oil, servicing filters, sharpening blades, inspecting belts and spindles, checking tire pressure, cleaning the deck and maintaining the hydrostatic transmissions.
Are the Hydro-Gear ZT-2800 transmissions serviceable?
Yes. They are generally designed to allow fluid and filter service according to the manufacturer’s maintenance schedule.
How often should the mower blades be sharpened?
Inspect the blades regularly and sharpen them when cut quality declines, grass tips appear torn or visible damage is present.
Should the mower deck be cleaned after use?
Yes. Removing grass buildup helps maintain deck airflow, cut quality and long-term durability.
What are the main benefits of the Cub Cadet Z3 54S?
Its main benefits include Synchro-Steer four-wheel control, a 23 HP Kawasaki engine, a reinforced 54-inch AeroForce Max deck, Hydro-Gear ZT-2800 transmissions and a comfortable high-back seat.
Where can I buy the Cub Cadet Ultima Z3 54S in Canada?
The Cub Cadet Ultima Z3 54S is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.
