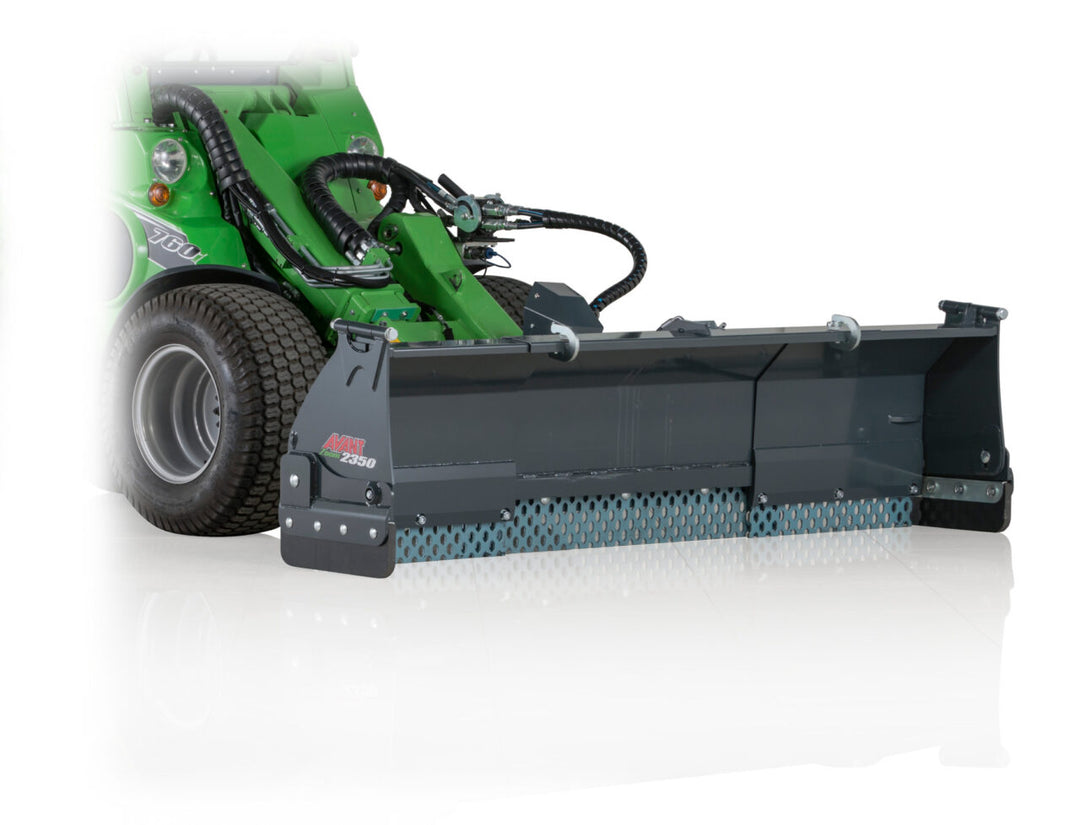

Avant Zoom Snow Plow (A450707)

This snow plow is equipped with a straight main blade and two wings which can be extended and retracted smoothly, powered by two hydraulic cylinders. This gives several different working widths and makes the snow plow very versatile. The plow is also equipped with hinged end plates which can be turned down on the ground. This allows fast and efficient snow collecting. When the end plates are turned up over the blade the plow works as conventional dozer blade and moves snow quickly to the side – and is narrower as well. The end plates are spring loaded which means they follow the contours of the ground well.

Zoom snow plow requires the optional Opticontrol® on the loader. Extension and retraction of the wings and turning of the blade are operated with the switches of the switch pack. The wings can be extended one at a time or both at the same time. Working width is steplessly adjustable between 53.2" – 92.5". The telescoping tubes of the side wings are equipped with maintenance free wear pads.

The mounting frame of the zoom snow plow is the same as on the 2000 and 2500 mm dozer blades. It allows a ±10° vertical floating which can be locked if necessary. The plow is also equipped with ±30° hydraulic blade turning. Ice cutting edge is standard equipment.

• Hydraulically extendable dozer blade allows snow removal also in smaller yards, on parking lots etc.
• Equipped with two wings which can be extended and retracted independently or both at the same time
• Seamlessly adjustable working width between 53.2" – 92.5"
• Hinged, foldable end plates for efficient snow collecting and moving
• Hydraulic blade turning ± 30° and vertical floating ± 10°
