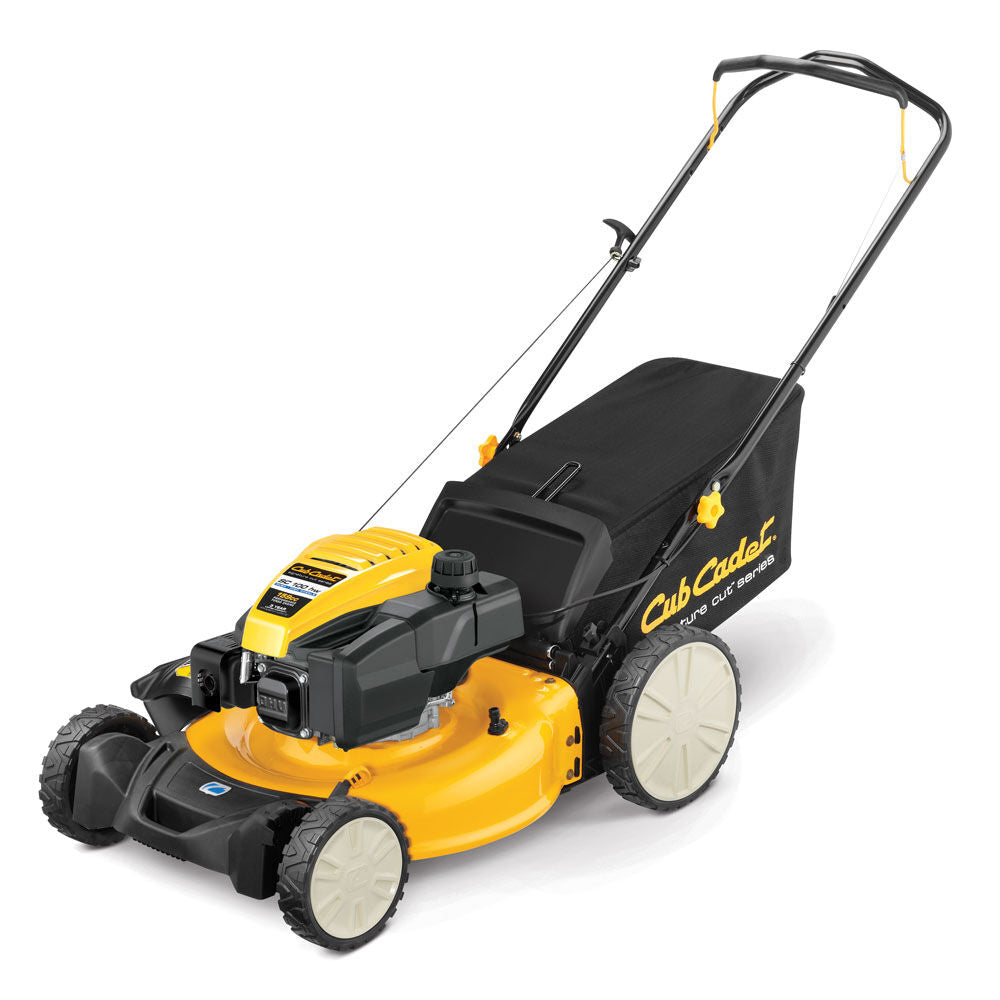

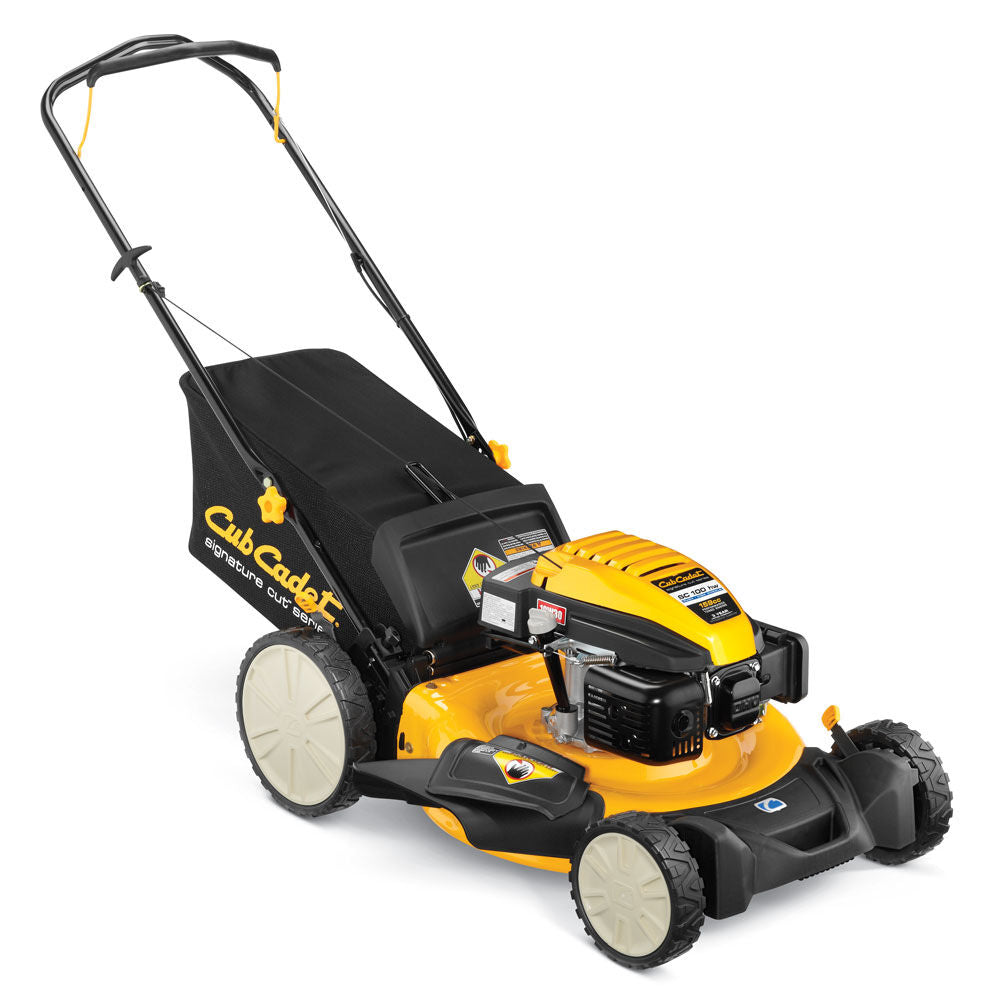

Cub Cadet SC 100HW Walk-Behind Mower (11A-B9M5596)

Engine

• Brand: Cub Cadet®
• Model Number: 5X65MUC
• Displacement: 159cc
• Starter Type: Recoil
• Fuel Tank Capacity: 1.3 qt
• Oil Capacity: 20 oz
• Choke: Autochoke

Drive System

• Type: Push

Cutting Deck

• Cutting Width: 21 in
• Deck Wash: Yes
• Material: Steel
• Cutting Height Range: 1.25" - 3.75"
• Positions: 6
• Height Adjustment: Dual-Lever
• Cutting System: Signature Cut
• Mulch Plug: Integrated
• Discharge Location: Side

Controls

• Handle: Adjustable Ergo with Indent & Overmolded Bail
• Drive Controls: Not applicable

Wheels

• Tread Pattern: Zag
• Front Wheels: 8 in
• Rear Wheels: 11 in
• Bearing Type: Poly Bushing

Dimensions

• Weight (approx.): 63 lbs

Additional Specifications

• Model Number: 11A-B9M5596

Warranty

• Residential Warranty: 3-year limited
• Commercial Warranty: Not available
• Engine Warranty: 3-year limited
• Commercial Engine Warranty: Not available

Grass Collector

• Bag Capacity: 1.9 Bushel
• Bagger Type: Dust Blocking

What engine does the Cub Cadet SC 100HW use?
The SC 100HW is powered by a 159cc Cub Cadet OHV engine with autochoke.

Is the Cub Cadet SC 100HW self-propelled?
No. The SC 100HW is a push lawn mower.

How wide is the cutting deck?
The mower has a 21-inch steel cutting deck.

Can the Cub Cadet SC 100HW mulch grass clippings?
Yes. The mower includes an integrated mulch plug and can mulch grass clippings back into the lawn.

Can the mower bag grass clippings?
Yes. It includes a 1.9-bushel dust-blocking grass bag.

Can the Cub Cadet SC 100HW side discharge?
Yes. The mower supports side discharge as part of its 3-in-1 cutting system.

What does 3-in-1 mowing mean?
The mower can mulch, bag or side discharge grass clippings.

What is the cutting-height range?
The cutting height can be adjusted from 1.25 inches to 3.75 inches.

How many cutting-height positions are available?
The mower offers six cutting-height positions.

How is the cutting height adjusted?
The SC 100HW uses a dual-lever height-adjustment system.

Does the Cub Cadet SC 100HW have a deck-wash system?
Yes. The deck-wash port makes it easier to rinse grass buildup from underneath the cutting deck.

What size wheels does the mower have?
The mower has 8-inch front wheels and 11-inch high rear wheels.

What are the benefits of high rear wheels?
The larger rear wheels help improve traction and maneuverability on uneven or rough lawn conditions.

Does the Cub Cadet SC 100HW have an adjustable handle?
Yes. It features an ergonomic handle with three adjustable positions.

Is the mower easy to start?
The engine features autochoke and is backed by Cub Cadet’s SureStart Guarantee for dependable starting.

How much does the Cub Cadet SC 100HW weigh?
The mower weighs approximately 63 pounds.

What is the fuel tank capacity?
The fuel tank holds approximately 1.3 quarts.

How much oil does the engine hold?
The engine has an oil capacity of approximately 20 ounces.

What warranty comes with the Cub Cadet SC 100HW?
The mower includes a three-year limited residential warranty and a three-year limited engine warranty.

Is there a commercial warranty?
No. The SC 100HW does not include a commercial-use warranty.

What is the model number?
The Cub Cadet SC 100HW model number is 11A-B9M5596.

Where can I buy the Cub Cadet SC 100HW?
The Cub Cadet SC 100HW is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.
