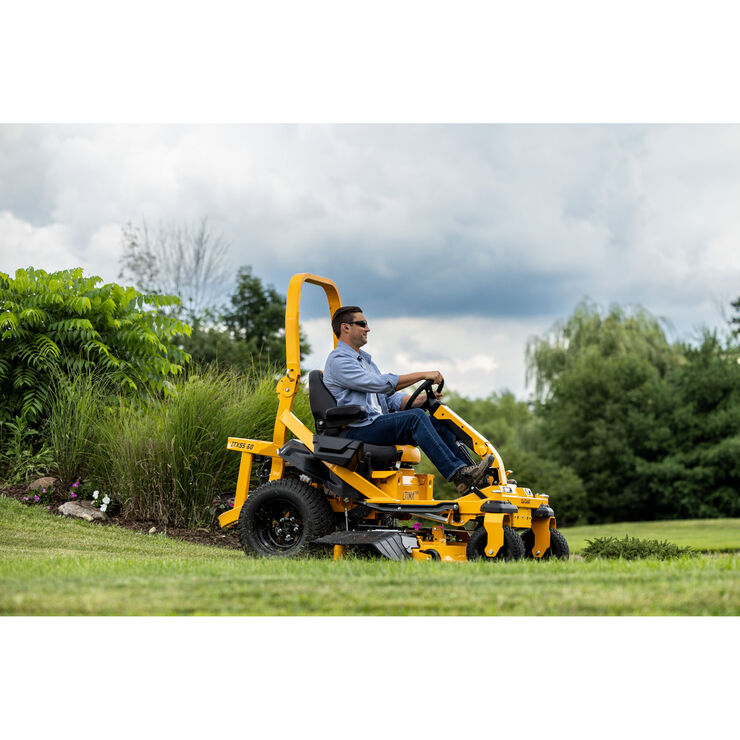

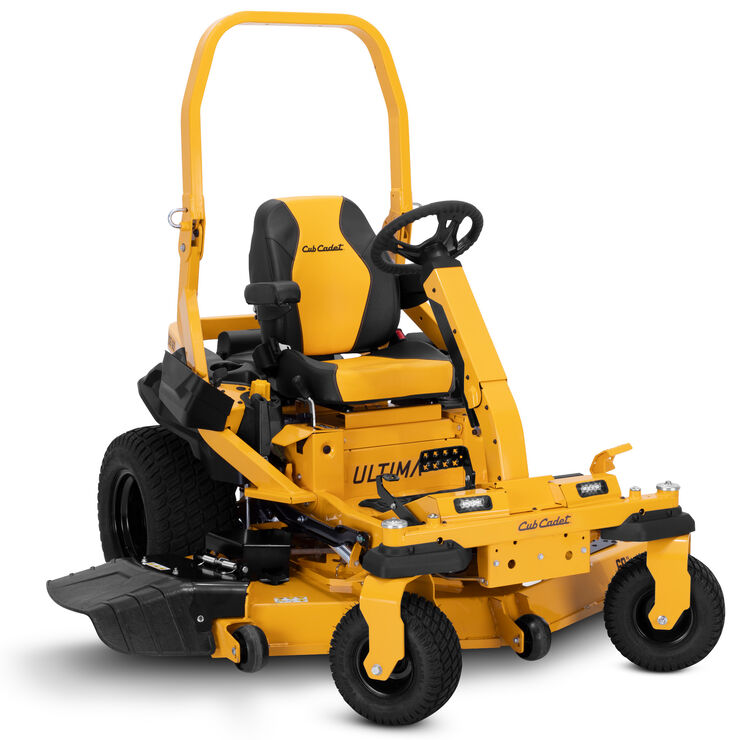

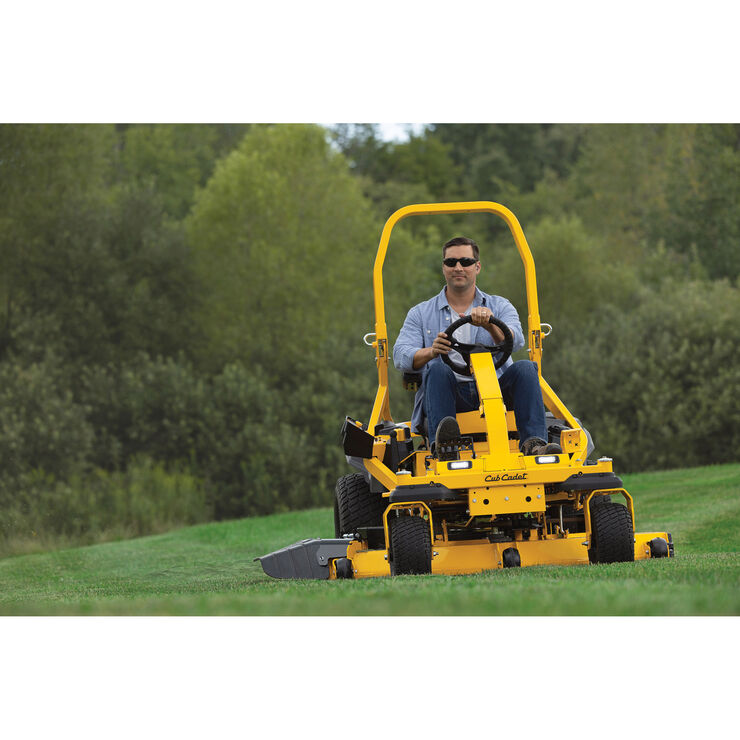

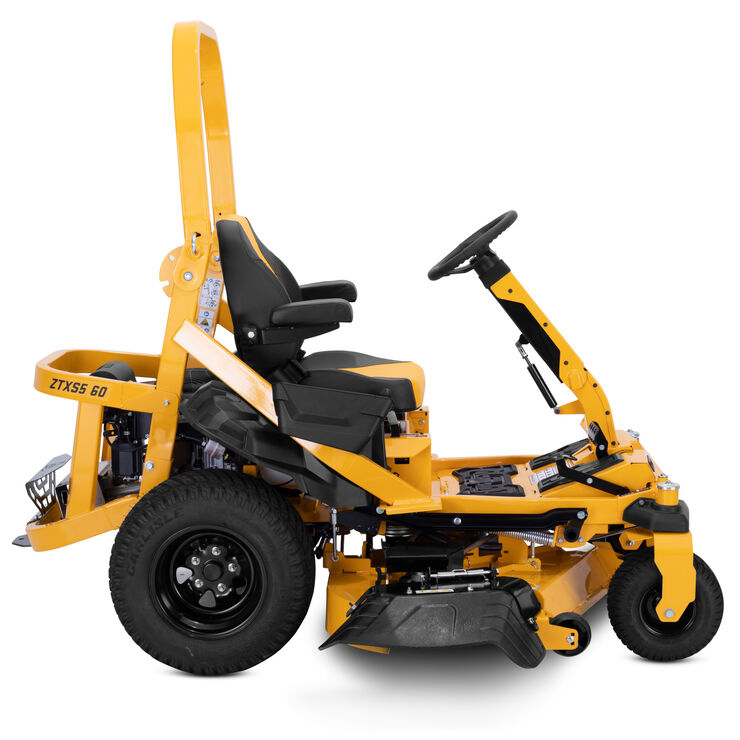

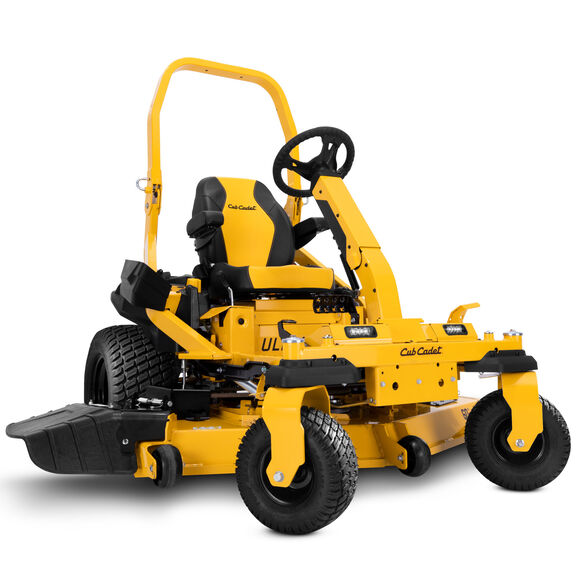

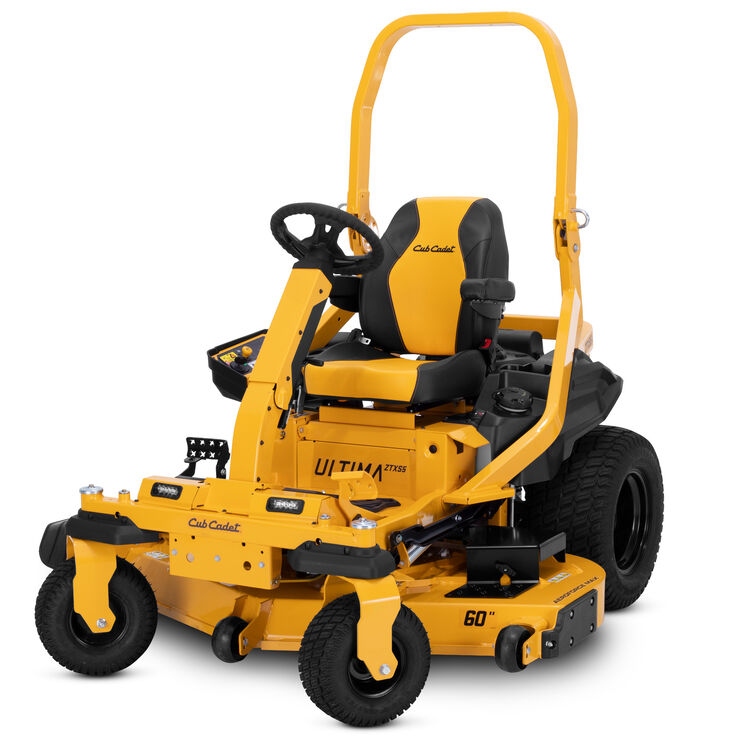

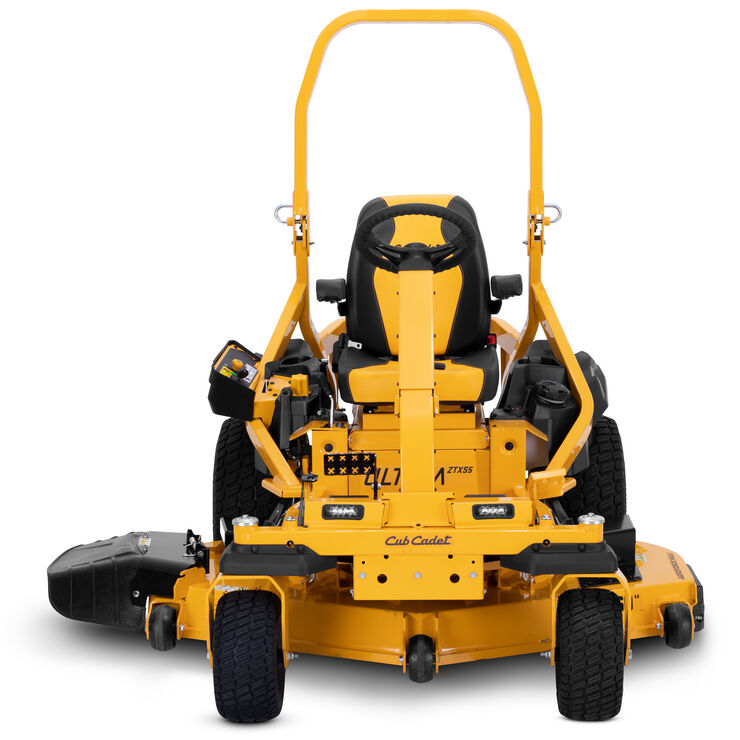

Cub Cadet Ultima Series™ ZT XS 47RKCAB8A10

Description:

Cub Cadet® Ultima Series ZTXS5 60 60-in. 24 HP* Zero-Turn Lawn Mower with Aero Force™ Max Reinforced Fabricated Deck and Synchro-Steer™ Technology is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Synchro-Steer offers 4-wheel control designed to provide stability for straight line mowing on hillsides and slopes up to 20-degrees.

Specifications:

Engine:

• Engine Brand: Kawasaki®
• Engine Model: FS Series
• Engine Model Number: 730R
• Engine Displacement: 726cc
• Engine Output: 24HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US (2 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System:

• Transmission: Hydro-Gear ZT 3200
• Forward Speed: 8.5 MPH / 13.7 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck:

• Deck Cutting Width: 60 in
• Deck Wash: No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" - 4.75"
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

Chassis:

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls:

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort:

• Seat Type: 24" high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels:

• Rear Tires: 23"x 12"-12"
• Front Tires: 13"x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

Additional Specifications:

• Series: Ultima Series™ ZTXS
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Foot Controlled
• Model Number: 47RKCAB8A10
