Description:

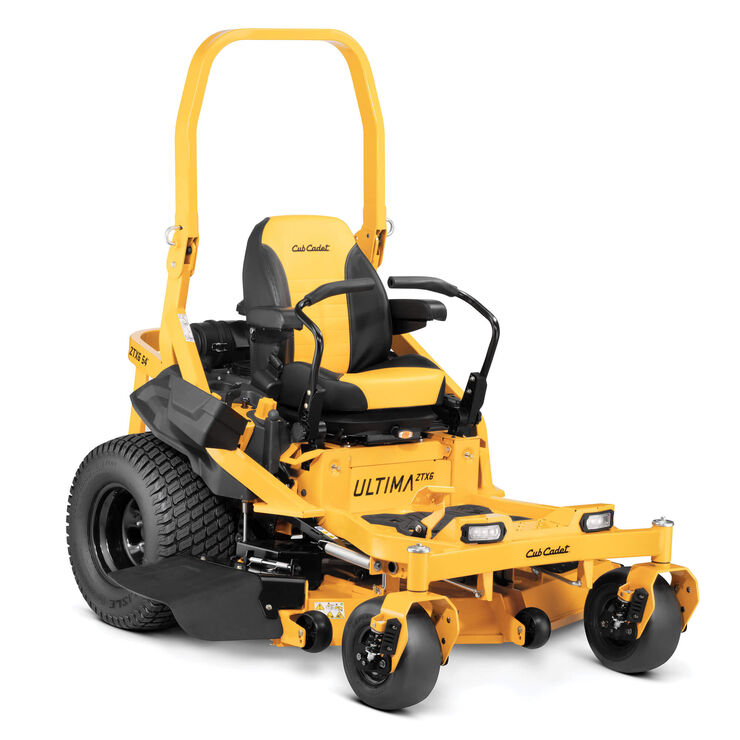

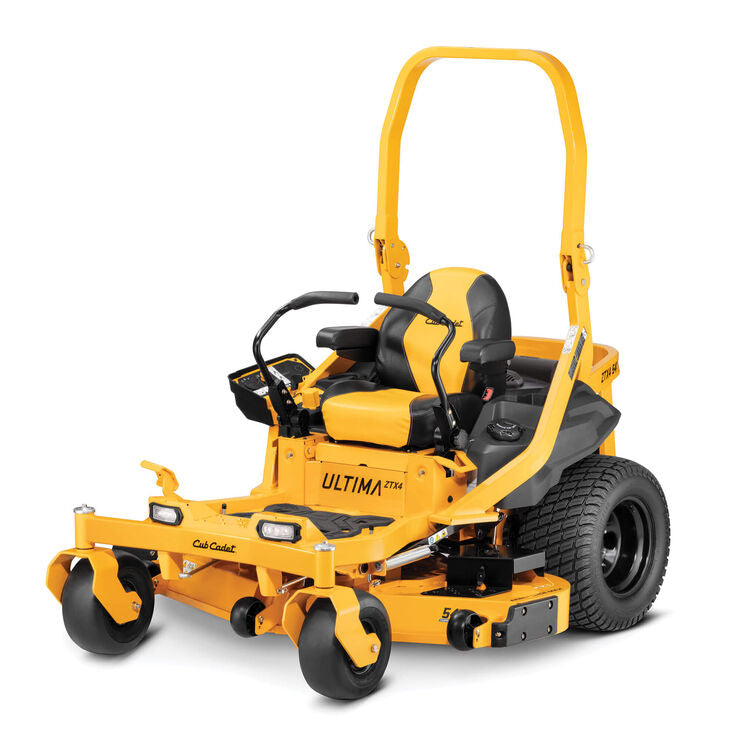

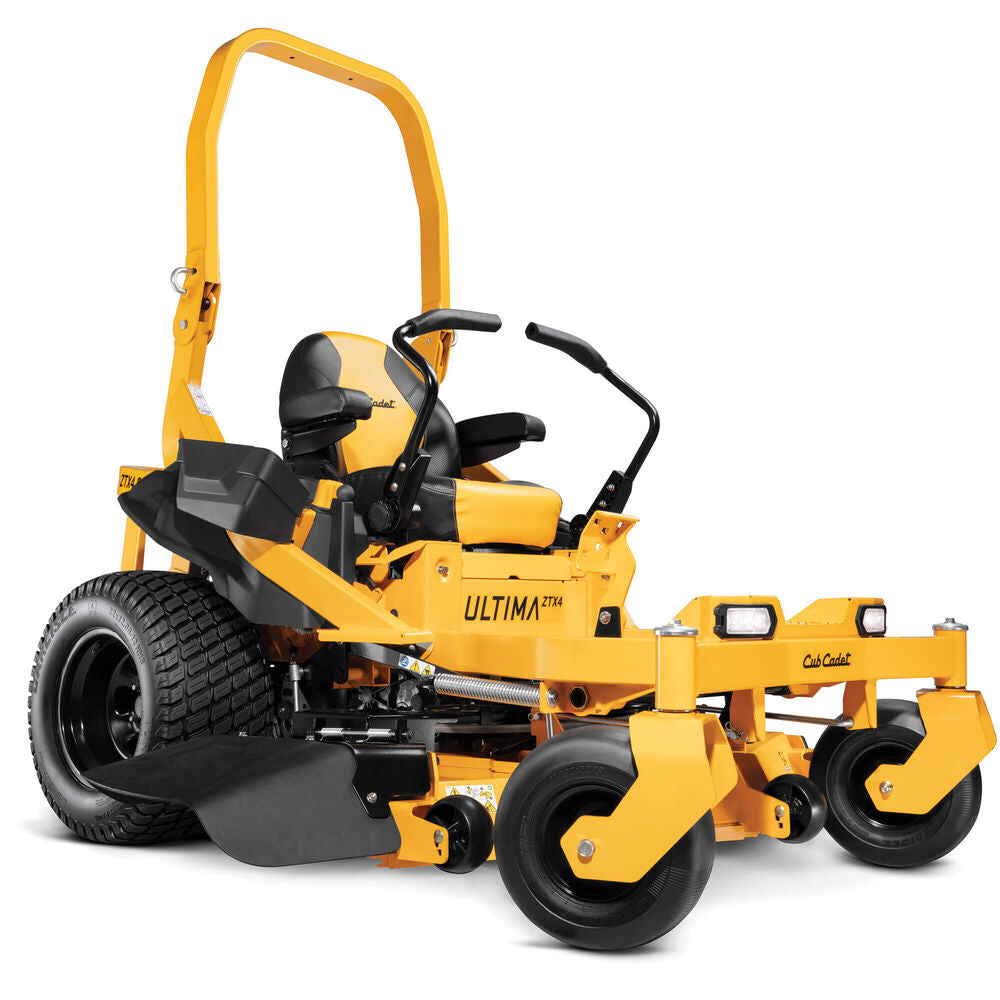

The Cub Cadet® Ultima Series ZTX4 54 54-in. 26 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.

Features:

• 26 HP* 747cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
• Dual hydrostatic transmissions allow for 8 MPH forward (3.5 MPH reverse) ground speeds
• A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
• 54 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provides flawless results, mows a wide area of grass to help reduce cutting time, and helps provide your lawn with a clean, premium cut
• Zero-Turn Mower

Specification:

Engine

• Engine Brand: Kohler®
• Engine Model: Pro 7000 series
• Engine Model Number: KT745
• Engine Displacement: 747 cc
• Engine Output: 26 HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor
• Battery:
• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3100
• Forward Speed: 8 MPH / 12.9 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 54 in
• Deck Wash: No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1" - 4.75"
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

Chassis

• Frame: 1.5" x 3" tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 20" High-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 22"x 12"-12"
• Front Tires: 13"x 6.5"-6"
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTX

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 47TSAAA7A10

Warranty

• Residential Warranty: 4-year / 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: 4-year / 800 hours
