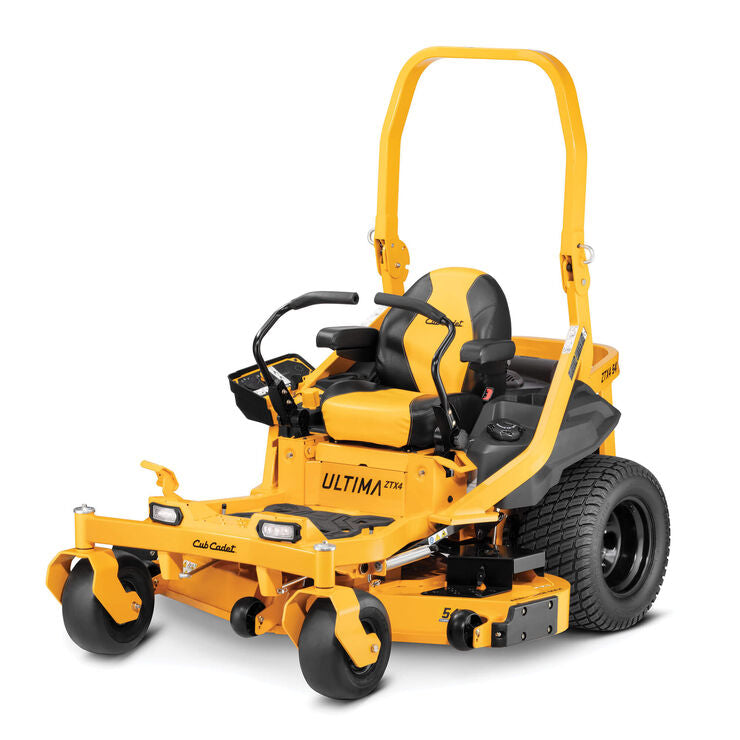

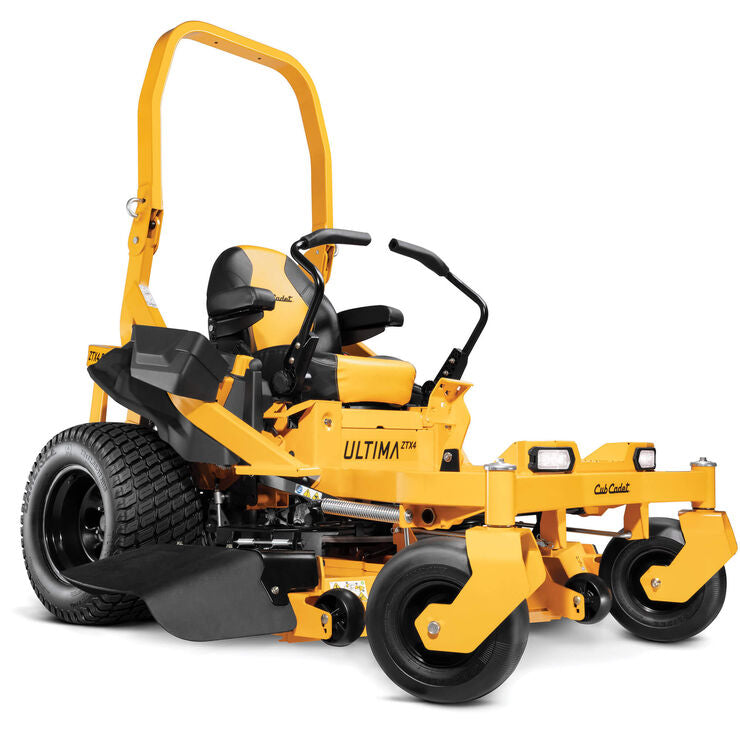

What is the Cub Cadet Ultima ZTX4 54?
The Cub Cadet Ultima ZTX4 54 is a 54-inch zero-turn mower designed to combine commercial-inspired durability with residential comfort and ease of use.
What is the model number of the Cub Cadet ZTX4 54?
The model number is 47TSAAA7A10.
Who is the Cub Cadet ZTX4 54 designed for?
It is designed for homeowners, acreage owners and property managers who need strong mowing performance, a wide cutting deck and durable commercial-style components.
Is the Cub Cadet ZTX4 54 a commercial mower?
It is primarily a heavy-duty residential zero-turn mower with commercial-grade transmissions and reinforced construction.
What engine does the Cub Cadet ZTX4 54 use?
It is powered by a 26 HP Kohler KT745 Pro 7000 Series V-twin OHV engine.
What is the engine displacement?
The Kohler KT745 engine has 747cc of displacement.
What are the benefits of the Kohler Pro 7000 Series engine?
The engine is designed to provide strong torque, dependable starting, smooth operation and durable performance for large-property mowing.
Is the engine fuel injected?
No. The Kohler KT745 uses a carburetor.
Does the Cub Cadet ZTX4 54 have electric start?
Yes. It starts using an ignition key.
What type of lubrication system does the engine use?
The engine uses a fully pressurized lubrication system.
Does the engine have an oil filter?
Yes. An engine oil filter is included.
What is the engine oil capacity?
The engine holds approximately 2 US quarts, or 1.89 litres, of oil.
What type of air filter does the engine use?
It uses a dual-element air filter.
Does the engine use a separate choke?
Yes. The supplied specifications list a separate choke control.
How much fuel does the Cub Cadet ZTX4 54 hold?
The fuel tank holds approximately 5.5 US gallons, or 20.82 litres.
Does the mower have a fuel gauge?
No. A fuel gauge is not included on this model.
What type of battery does the mower use?
It uses a 12-volt AGM battery rated at 210 cold-cranking amps.
What does AGM mean?
AGM stands for Absorbent Glass Mat. AGM batteries are sealed, vibration resistant and require less routine maintenance than traditional flooded batteries.
Is the Cub Cadet ZTX4 54 a zero-turn mower?
Yes. It uses lap-bar steering and has a zero-degree turning radius.
How wide is the cutting deck?
The mower has a 54-inch AeroForce Max cutting deck.
What size property is the Cub Cadet ZTX4 54 suitable for?
Its 54-inch deck makes it well suited to large residential lawns, acreages and open properties where productivity is important.
What is the AeroForce Max cutting deck?
AeroForce Max is Cub Cadet’s reinforced fabricated deck design, engineered for strong airflow, fine clipping distribution and a clean, even finish.
What is the deck made from?
The deck is built from 10-gauge fabricated steel with additional 2-gauge reinforcement.
What are the benefits of a fabricated mower deck?
A fabricated deck is welded from heavy steel for greater strength, rigidity and resistance to wear than many lighter stamped decks.
Why does the deck use 2-gauge reinforcement?
The additional reinforcement strengthens high-stress areas and helps improve long-term deck durability.
How many blades does the Cub Cadet ZTX4 54 use?
It uses three smooth-arc cutting blades.
What are smooth-arc blades?
Smooth-arc blades are designed to support efficient airflow and consistent clipping movement for an even cut.
What does cut overlap mean?
Cut overlap means the blade paths slightly overlap, helping reduce strips of uncut grass between the blades.
What is the benefit of the deep-dome deck design?
The deep-dome shape improves airflow and grass lift, helping produce a cleaner cut and more efficient clipping discharge.
Does the deck have low-maintenance spindles?
Yes. The AeroForce Max deck includes low-maintenance spindle assemblies.
Can the Cub Cadet ZTX4 54 handle tall or thick grass?
Yes. Its Kohler engine and deep fabricated deck provide strong cutting performance, although very tall, dense or wet grass may require a slower speed.
Can the Cub Cadet ZTX4 54 mulch grass clippings?
A compatible mulch kit may be available separately. Compatibility should be confirmed using model number 47TSAAA7A10.
Can the Cub Cadet ZTX4 54 use a bagger?
A compatible bagging system may be available separately. Bagger compatibility should be confirmed for the exact mower and deck.
Does the deck have a washout port?
No. A deck wash port is not included.
How is the cutting deck engaged?
The cutting blades are engaged using an electric PTO switch.
What is the cutting-height range?
The cutting height can be adjusted from approximately 1 inch to 4.75 inches.
How many cutting-height positions are available?
The mower provides 17 cutting-height positions.
How is the cutting height adjusted?
It uses a foot-operated deck lift with a dial adjustment.
Why is a foot-operated deck lift useful?
It allows the operator to raise or lower the deck from the seat and quickly return to a preferred cutting height.
Does the deck have anti-scalping wheels?
Yes. The deck includes three gauge wheels to help reduce scalping on uneven ground.
What transmission does the Cub Cadet ZTX4 54 use?
It uses dual Hydro-Gear ZT-3100 hydrostatic transmissions.
Are Hydro-Gear ZT-3100 transmissions commercial grade?
Yes. They are designed for demanding residential and light commercial mowing applications.
What are the benefits of Hydro-Gear ZT-3100 transmissions?
They provide smooth speed control, responsive zero-turn handling and strong drive performance for large-property mowing.
Is the Cub Cadet ZTX4 54 rear-wheel drive?
Yes. The two hydrostatic transmissions independently power the rear drive wheels.
How fast does the Cub Cadet ZTX4 54 travel?
It can travel at speeds of up to 8 mph forward and 3.5 mph in reverse.
Does the mower use lap-bar steering?
Yes. The ZTX4 54 is controlled using dual lap bars.
Is lap-bar steering difficult to learn?
Most operators become comfortable with lap-bar controls after practicing slowly in a clear, open area.
Can the Cub Cadet ZTX4 54 make a true zero-radius turn?
Yes. The independent rear-wheel drives allow it to pivot tightly around its drive wheels.
Is the mower easy to maneuver around obstacles?
Yes. Its zero-turn design allows precise mowing around trees, garden beds, fences, buildings and other obstacles.
What is the mower frame made from?
The ZTX4 54 uses a continuous 1.5-inch by 3-inch tubular steel frame.
What are the benefits of the tubular steel frame?
The heavy-duty frame provides strength, stability and resistance to flexing over uneven terrain.
Does the frame have corrosion protection?
Yes. The lower frame is fully e-coated as part of Cub Cadet’s corrosion-defense system.
What is e-coat corrosion protection?
E-coating uses an electrically applied protective finish to help guard metal surfaces against rust, moisture and wear.
Does the Cub Cadet ZTX4 54 include a ROPS?
Yes. A rollover protective structure is included.
What is a ROPS?
ROPS stands for rollover protective structure. It is designed to help protect the operator during a rollover when used with the proper restraint system.
Does the mower have a rear tow hitch?
Yes. A rear tow hitch is included.
Can the Cub Cadet ZTX4 54 tow a lawn cart?
Yes, when using a compatible attachment within Cub Cadet’s stated towing limits.
Does the mower have disc brakes?
Yes. It uses disc brakes.
Does the Cub Cadet ZTX4 54 have cruise control?
No. Cruise control is not included.
What type of seat does the mower have?
It includes a 20-inch high-back seat with armrests.
Can the seat be adjusted?
Yes. The seat position can be adjusted using a lever.
Is the Cub Cadet ZTX4 54 comfortable for long mowing sessions?
Yes. Its high-back seat, armrests and ergonomic controls are designed to improve comfort during extended use.
Does the mower have front caster suspension?
No. Front caster suspension is not included on this model.
What size rear tires does the mower use?
The rear tires measure 22 inches by 12 inches on 12-inch rims.
What size front tires does it use?
The front tires measure 13 inches by 6.5 inches on 6-inch rims.
What type of tire tread does the mower use?
It uses Turf Master and Multi Trac tread patterns designed to provide traction while limiting turf damage.
Is the Cub Cadet ZTX4 54 suitable for uneven terrain?
Yes. Its large tires, strong tubular frame and commercial-grade transmissions make it suitable for moderately uneven properties.
Is the Cub Cadet ZTX4 54 suitable for hills?
It may be used on appropriate slopes within the limits stated in the operator’s manual. Wet grass, loose soil and abrupt turns can reduce traction.
Does the ROPS make the mower safe on every slope?
No. ROPS adds rollover protection but does not increase the mower’s permitted slope limit or prevent loss of traction.
What conditions can affect zero-turn mower stability?
Slope angle, wet turf, loose ground, hidden holes, tire condition, speed and operator technique can all affect stability.
Will the Cub Cadet ZTX4 54 fit through a standard gate?
Many standard residential gates will not provide enough clearance. The mower’s overall width will be greater than its 54-inch cutting width.
What should I measure before buying the Cub Cadet ZTX4 54?
Measure gates, pathways, garage or shed doors, trailer ramps and the narrowest areas where the mower will operate.
Can the Cub Cadet ZTX4 54 be transported on a trailer?
Yes. Use a trailer with enough width, payload capacity, ramp strength and secure tie-down points.
Is the Cub Cadet ZTX4 54 suitable for small yards?
It is generally better suited to large lawns and acreages. Small or tightly landscaped properties may be easier to maintain with a narrower mower.
Is the Cub Cadet ZTX4 54 suitable for acreage owners?
Yes. Its 54-inch deck, strong Kohler engine, ZT-3100 transmissions and durable frame make it a strong acreage mower.
Can the Cub Cadet ZTX4 54 be used commercially?
It may be suitable for light commercial property maintenance, but the exact warranty terms and duty rating should be confirmed before professional use.
What is the difference between the Cub Cadet ZTX4 54 and ZTXS4 54?
The ZTX4 54 uses traditional lap-bar zero-turn controls, while the ZTXS4 54 uses Synchro-Steer steering-wheel control for enhanced directional stability on slopes.
Should I choose the Cub Cadet ZTX4 54 or ZTXS4 54?
Choose the ZTX4 54 for traditional lap-bar zero-turn handling. Choose the ZTXS4 54 for steering-wheel control and improved hillside tracking.
What is the difference between the Cub Cadet ZTX4 54 and ZTX5 54?
The ZTX5 54 generally adds higher-spec commercial components and upgraded transmission or comfort features, depending on the exact model year.
What maintenance does the Cub Cadet ZTX4 54 require?
Routine maintenance includes checking engine oil, servicing the oil and air filters, sharpening blades, inspecting belts and spindles, checking tire pressure, cleaning the deck and maintaining the hydrostatic transmissions.
How often should the mower blades be sharpened?
Inspect the blades regularly and sharpen them when cut quality declines, grass tips appear torn or visible damage is present.
Should the deck be cleaned after mowing?
Yes. Removing grass buildup helps maintain airflow, cutting performance and deck condition.
Do the Hydro-Gear ZT-3100 transmissions require maintenance?
Yes. Fluid, filters and drive components should be serviced according to the schedule for the exact mower.
Is professional service recommended for the Cub Cadet ZTX4 54?
Yes. Regular professional maintenance can help preserve cut quality, transmission performance, reliability and warranty compliance.
What are the main benefits of the Cub Cadet ZTX4 54?
Its main benefits include a 26 HP Kohler engine, reinforced 54-inch AeroForce Max deck, Hydro-Gear ZT-3100 transmissions, heavy tubular frame, ROPS and comfortable operator seating.
Where can I buy the Cub Cadet Ultima ZTX4 54 in Canada?
The Cub Cadet Ultima ZTX4 54 is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.
