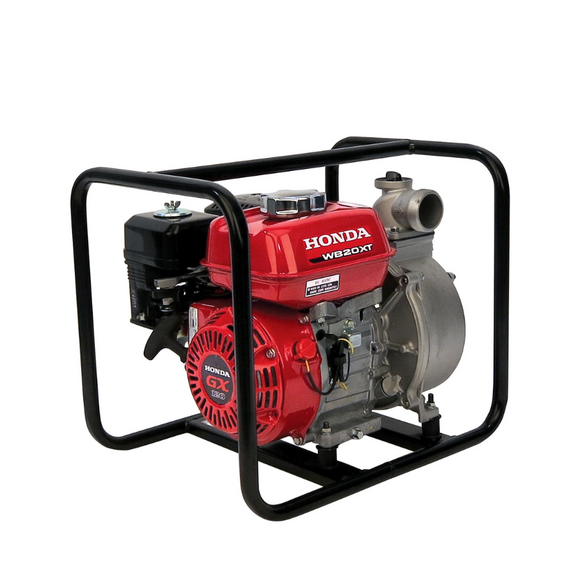

Honda WB20XT4 Water Pump

The Honda WB20XT4 is a versatile water pump designed for a wide range of applications, from irrigation to construction to flood control. With its reliable performance, durable construction, and easy operation, the WB20XT4 is the ideal solution for your water pumping needs.

Features:

• Powered by a dependable Honda GX120 engine, renowned for its reliability and efficiency.
• Recoil starting system for quick and easy startup, even in challenging conditions.
• Oil Alert® system automatically shuts off the engine when oil levels are low, protecting the engine from damage.
• Durable construction with a heavy-duty full-frame protection for added durability and stability.
• Self-priming design allows for quick and easy startup without the need for manual priming.
• High suction and discharge capacity for efficient water transfer, even with high solid content.
• Comes equipped with a strainer to prevent debris from entering the pump, ensuring smooth operation.
• Cast iron volute casing and impeller for increased durability and longevity.
• Easy access to internal components for maintenance and servicing.
• Ideal for use in agriculture, construction, flood control, and other water pumping applications.

Specifications:

• Engine: Honda GX120
• Displacement: 118cc
• Starting System: Recoil
• Pump Type: Centrifugal, self-priming
• Intake Port Diameter: 50mm (2 inches)
• Discharge Port Diameter: 50mm (2 inches)
• Maximum Capacity: 600 liters per minute (132 Imp. gallons per minute)
• Total Head Lift: 32 meters (105 feet)
• Suction Head Lift: 8 meters (26 feet)
• Fuel Tank Capacity: 2.5 liters (0.55 Imp. gallons)
• Run Time: Approximately 2.0 hours at full throttle
• Dry Weight: 21 kg (46 lbs)
• Dimensions (L x W x H): 470 x 350 x 375 mm (18.5 x 13.8 x 14.8 inches)

Warranty:

• Residential: 3-year limited warranty
• Commercial: 3-year limited warranty

The Honda WB20XT4 water pump combines reliable performance, durable construction, and easy operation, making it the perfect solution for a wide range of water pumping tasks. Whether you're irrigating crops, draining a construction site, or controlling floods, the WB20XT4 is up to the challenge
