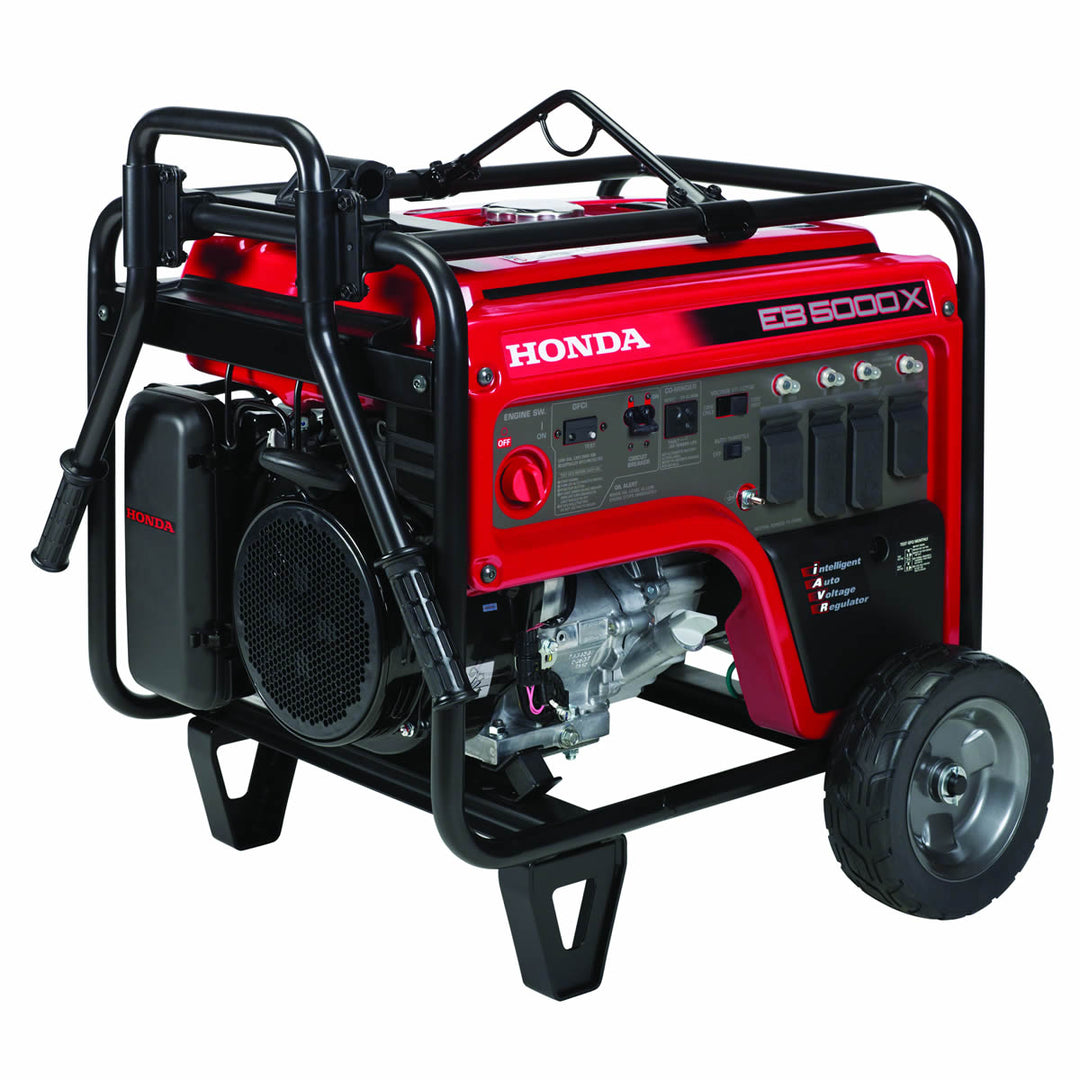

Honda® EB5000 Generator

$2,986.00

Honda SKU: EB5000

The Honda EB5000 is a contractor-ready generator with reliable Honda power, full GFCI protection, rugged durability, strong output for tools, and jobsite features built for daily use.

Call to Order: 403-243-7063

The Honda EB5000 industrial generator delivers reliable power with 5,000 watts of continuous output and a surge capability of 7,000 watts for 10 seconds, ideal for starting larger equipment. Designed with iAVR (Intelligent Automatic Voltage Regulation) technology, it ensures a stable flow of power, making it perfect for demanding job site environments.

Key features include:

  • CO-MINDER™ advanced carbon monoxide detection system for safety
  • iGX commercial engine providing optimal performance
  • 120/240V selector switch for versatile power usage
  • Long run time of up to 10.5 hours at 50% load
  • OSHA worksite compliant with full GFCI protection across all outlets
  • Easy transport and storage with folding handles and a tough welded frame
  • Quiet operation at 63-65 dB(A)

For those in the Calgary area, including Cochrane, Chestermere, Okotoks, and Airdrie, ARNS Equipment has the Honda EB5000 in stock. Visit us for your next worksite or home backup power solution!

Specifications

  • Generator Type: Brush type
  • Maximum AC Output (Watts): 2,500
  • AC Voltage Available: 120
  • Maximum Continuous AC Output (Watts): 2,300
  • Max. Rated AC Amperage @ 120 V / 240 V: 19.2 / -
  • Ground Fault Circuit Interrupter (GFCI): N/A
  • Frequency (Hertz): 60
  • Automatic Voltage Regulator: Standard
  • DC Output Volts / Amps: N/A
  • Common Duplex Receptacle Specifications: 19.2 amps/120 VAC continuous is available as combined total from these two AC receptacles. Maximum of 19.2 amps available from a single receptacle.
  • DC Receptacle Specifications: N/A
  • DC Charging Cable: N/A
  • High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: N/A

Engine

  • Engine Type: Honda GX160H1 OHV, 4-stroke, air-cooled
  • Displacement: 163 cc
  • Starting System: Manual recoil
  • Low Level Oil Alert System: Standard
  • Auto Throttle: N/A
  • Remote Start Capability: No
  • Fuel Tank Capacity: 14.5 liters (3.19 Imp. gal.)

Additional Info

  • Transport Wheels: N/A
  • Lifting Hook: N/A
  • Battery: N/A
  • Approximate Running Time (hrs.) / Tankful: 10.2 / 15.3
  • Rated Fuel Consumption (liters/hr.): 1.42
  • Noise Level dB(A) (1.5 m to 7 m): 69
  • Length (Without Handles and Wheels): 597 mm (23.5 in.)
  • Length (With Handles and Wheels): N/A
  • Width (Without Handles and Wheels): 434 mm (17.1 in.)
  • Width (With Handles and Wheels): N/A
  • Height (Without Lift-Hook): 437 mm (17.2 in.)
  • Height (With Lift-Hook): N/A
  • Dry Weight: 45 kg (99.2 lbs.)
  • Cold Climate Technology: Standard

Add custom text to your tabs

What is the Honda EB5000 generator?
The Honda EB5000 is a heavy-duty industrial generator designed for construction sites, professional contractors and demanding backup-power applications.

How much power does the Honda EB5000 produce?
The supplied product description lists 5,000 watts of continuous output with up to 7,000 watts available for 10 seconds during equipment startup.

Are the supplied Honda EB5000 specifications consistent?
No. The detailed specification table lists only 2,500 maximum watts, 2,300 continuous watts, 120V output and a Honda GX160 engine. Those specifications do not match the described EB5000 and should be verified before publishing.

Which Honda EB5000 specifications should be confirmed?
The exact output, voltage, engine, fuel capacity, runtime, weight, outlet configuration, starting system and included transport equipment should all be confirmed.

What is Honda iAVR technology?
Honda iAVR is an intelligent automatic voltage regulator designed to maintain stable power during changing electrical loads.

Can the Honda EB5000 provide extra starting power?
The supplied product description states that it can deliver up to 7,000 watts for 10 seconds to help start equipment with high initial demand.

What engine does the Honda EB5000 use?
The description identifies a Honda iGX commercial engine, but the detailed specifications list a 163cc Honda GX160H1. The correct engine should be confirmed.

Does the Honda EB5000 provide 120V and 240V power?
The description lists a 120/240V selector switch, while the detailed specifications list only 120V output. Confirm the exact model configuration before purchase.

Who is the Honda EB5000 best suited for?
It is intended for contractors, construction crews and professional users who need reliable power for tools and equipment.

Is the Honda EB5000 suitable for jobsites?
Yes. It is described as an industrial generator built for demanding jobsite use.

Is the Honda EB5000 OSHA compliant?
The supplied description states that it is OSHA worksite compliant.

Does the Honda EB5000 have GFCI protection?
The description lists full GFCI protection on all outlets, but the detailed specifications list GFCI as not available. The exact outlet configuration must be confirmed.

What is Honda CO-MINDER?
CO-MINDER monitors carbon monoxide levels near the generator and shuts it down if unsafe levels are detected.

Does CO-MINDER make indoor operation safe?
No. The generator must always be operated outdoors and well away from doors, windows, vents and occupied areas.

Can the Honda EB5000 power larger equipment?
The described 5,000-watt version is intended to support larger tools and equipment, including loads with significant startup requirements.

Can the Honda EB5000 power sensitive equipment?
Honda iAVR technology is designed to provide stable power for compatible tools and equipment with electronic controls.

Is the Honda EB5000 an inverter generator?
No. It is described as a brush-type industrial generator with automatic voltage regulation.

Does the Honda EB5000 have electric start?
The supplied detailed specifications list manual recoil starting. The exact starting system should be confirmed for the model being sold.

How long can the Honda EB5000 run?
The description states up to 10.5 hours at 50% load, while the detailed specifications list 10.2 and 15.3 hours per tank. Confirm the correct runtime figures.

How large is the fuel tank?
The detailed specifications list a 14.5-litre fuel tank, but this may belong to a different generator configuration.

How loud is the Honda EB5000?
The description lists approximately 63 to 65 dB(A), while the detailed specifications list 69 dB(A). The correct sound rating should be verified.

How much does the Honda EB5000 weigh?
The detailed specifications list a dry weight of approximately 45 kg, or 99.2 lb, but this may not match the described 5,000-watt model.

Does the Honda EB5000 include wheels?
The description mentions easy transport with folding handles, while the specification table lists no transport wheels. Confirm the included frame and wheel equipment.

Does the Honda EB5000 have folding handles?
The supplied description states that folding handles are included for transport and storage.

Does the Honda EB5000 have a welded frame?
Yes. It is described as having a durable welded frame for demanding work environments.

Does the Honda EB5000 have low-oil protection?
Yes. The detailed specifications list Honda’s low-level Oil Alert system as standard.

Does the Honda EB5000 have Eco-Throttle?
The supplied detailed specifications list no automatic throttle system.

Does the Honda EB5000 support remote starting?
No. Remote-start capability is not listed.

Does the Honda EB5000 provide DC output?
No DC output is listed in the supplied detailed specifications.

Does the Honda EB5000 have cold-weather features?
Yes. Honda Cold Climate Technology is listed as standard.

Can the Honda EB5000 be used for home backup?
Yes. A correctly sized EB5000 may power selected household essentials, depending on their running and startup requirements.

Can the Honda EB5000 power an entire house?
It is generally better suited to selected essential circuits than complete whole-home operation.

Can the Honda EB5000 be connected to a home electrical panel?
Only through an approved transfer switch or interlock installed by a qualified electrician.

Can the Honda EB5000 be used to backfeed a house?
No. Backfeeding through a household outlet is extremely dangerous and can injure utility workers or damage equipment.

What maintenance does the Honda EB5000 require?
Routine maintenance includes engine-oil changes, air-filter service, spark-plug inspection, fuel-system care and regular safety checks.

What should be verified before listing this Honda EB5000 for sale?
Verify the model number and official specification sheet because the supplied marketing description and technical specifications appear to describe different generators.

What are the main benefits of the Honda EB5000?
Its described benefits include strong industrial output, temporary startup power, iAVR voltage regulation, CO-MINDER protection, GFCI outlets and durable jobsite construction.

Where can I buy the Honda EB5000 generator in Canada?
The Honda EB5000 generator is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.
