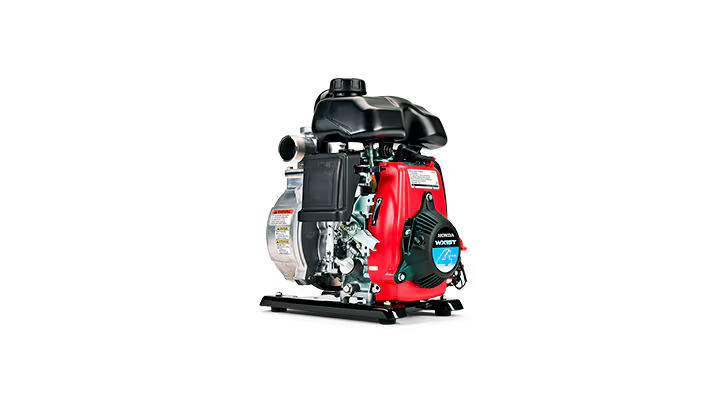

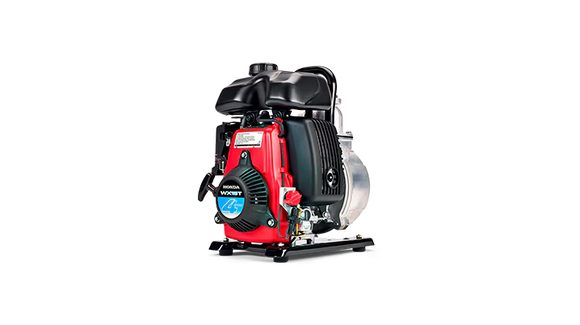

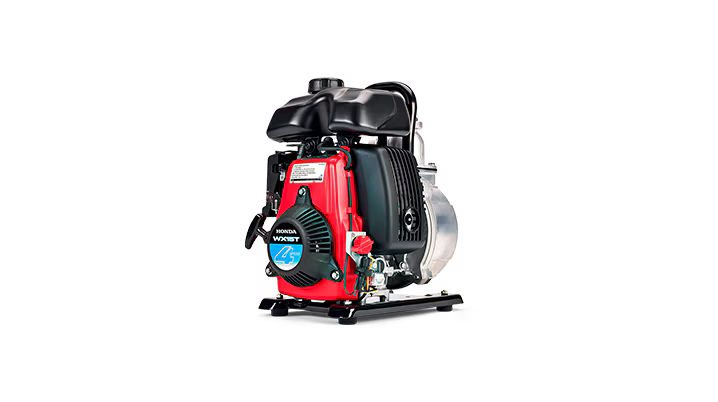

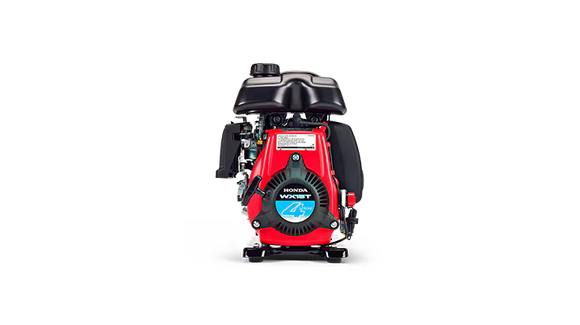

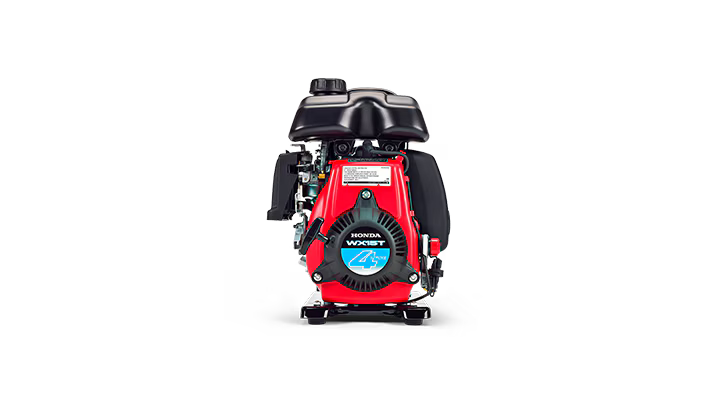

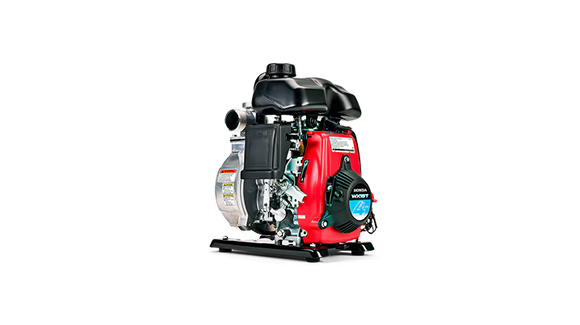

Honda WX15TCX 1.5-Inch Portable Water Pump

The Honda WX15TCX 1.5-inch portable water pump is a lightweight general-purpose transfer pump designed for homeowners, acreage owners, cabin users, landscapers, and contractors who need to move clean water without transporting a large full-frame pump.

Powered by a compact 49 cc Honda GXH50 four-stroke engine, the WX15TCX can move up to 240 litres per minute, or approximately 14,400 litres per hour, through its 1.5-inch suction and discharge ports. Despite that capacity, the complete pump weighs only 9 kg or 20 lb, making it easy for one person to carry between a truck, water tank, pond, pool, flooded area, or remote worksite.

The WX15TCX is best suited to clean-water transfer. It is an excellent choice for draining pools, filling water tanks, moving water at a cottage or acreage, supporting light irrigation, and completing smaller drainage jobs. It is not designed to handle rocks, mud, sticks, or the larger suspended debris that a Honda WT-series trash pump is built to process.

Our Recommendation

We recommend the Honda WX15TCX to customers who want the lightest and most portable pump in this Honda group and primarily need to move relatively clean water.

It is especially useful when the pump must be carried into a backyard, down to a pond, between water tanks, or into a remote area where a heavier framed pump would be inconvenient. Its 1.5-inch ports provide a useful middle ground between the very compact Honda WX10 and the larger two-inch transfer and high-pressure pumps.

The WX15TCX is a strong fit for:

• Filling or emptying water tanks
• Pool maintenance and drainage
• Moving water at a cabin or recreational property
• Light irrigation and garden-water transfer
• Draining shallow flooded areas
• Moving clean water between temporary storage tanks
• Property owners who need a pump that can be carried easily by one person

It is not the model we recommend for construction excavations, muddy runoff, floodwater containing debris, or dewatering applications where stones and suspended solids are expected. For those jobs, one of the Honda WT-series trash pumps will provide the correct internal clearances, durability, and service access.

Customers who need greater pressure for sprinklers, longer hose runs, elevation changes, or fire-style nozzles should instead compare the Honda WH15XTC or WH20XTC high-pressure pumps.

Lightweight Pumping Capacity

One of the greatest advantages of the WX15TCX is the amount of water it can move relative to its size.

Honda rates the pump for up to:

• 240 litres per minute
• 53 Imperial gallons per minute
• 14,400 litres per hour
• 3,180 Imperial gallons per hour

Actual output will depend on suction height, discharge elevation, hose length, hose diameter, fittings, bends, restrictions, and the condition of the pump. The advertised maximum is achieved under favourable test conditions and should not be treated as the guaranteed output in every installation.

For many property-maintenance jobs, the WX15TCX can move a meaningful volume of water without requiring the larger engine, frame, or hose system of a two-inch or three-inch pump.

What Is the Honda WX15TCX Designed to Pump?

The WX15TCX is a clean-water transfer pump.

It is designed for water that may contain minor incidental particles but is generally free from significant mud, gravel, stones, leaves, sticks, and other debris. The supplied or compatible suction strainer should always be used to prevent oversized material from entering the pump.

Suitable applications can include:

• Swimming pools
• Rainwater tanks
• Cisterns
• Portable water-storage tanks
• Small ponds with a properly positioned strainer
• Shallow standing water
• Irrigation reservoirs
• Clean construction water
• Water transfer at cottages and acreages

The condition of the water source matters. A pond may appear clear at the surface while containing silt, vegetation, and stones near the bottom. The strainer should be suspended above loose sediment rather than placed directly into mud.

What Should You Avoid Pumping?

The WX15TCX should not be used as a trash pump.

Avoid using it for water containing substantial amounts of:

• Gravel
• Stones
• Mud
• Sand
• Wood chips
• Leaves
• Sticks
• Construction debris
• Thick sludge
• Sewage
• Flammable or corrosive liquids

Material that passes through an unsuitable or damaged strainer can clog the impeller, damage the mechanical seal, reduce output, or stop the pump.

The WX15TCX is also not intended for pumping gasoline, diesel fuel, solvents, chemicals, saltwater, or drinking water unless the complete application is specifically approved for that purpose. Always confirm fluid compatibility and follow the pump manual before use.

Honda GXH50 Four-Stroke Engine

The WX15TCX is powered by a Honda GXH50, a compact 49 cc, overhead-valve, single-cylinder four-stroke engine. It uses a recoil starter and a 1.2-litre fuel tank.

Because it is a four-stroke engine, gasoline and engine oil are kept separate. The operator does not mix two-cycle oil into the fuel.

This provides a straightforward ownership experience for customers who already use Honda generators, mowers, or other four-stroke equipment.

Regular engine care includes:

• Checking the oil level before operation
• Using fresh gasoline
• Inspecting the air filter
• Maintaining the spark plug
• Keeping cooling openings clear
• Following Honda’s oil-change schedule
• Preparing the fuel system correctly before storage

The engine must never be run without oil or with the pump sitting at an unsafe angle that interferes with proper lubrication.

Honda Oil Alert Protection

The WX15TCX includes Honda’s Oil Alert system.

If the engine-oil level falls below a safe operating range, the system is designed to shut down the engine before insufficient lubrication causes more serious damage.

Oil Alert is an important protective feature, but it does not replace routine inspection. Operators should check the oil before each use rather than waiting for the shutdown system to activate.

If the engine stops unexpectedly or will not restart, the oil level should be one of the first items inspected.

Self-Priming Centrifugal Pump

The WX15TCX uses a self-priming centrifugal pump with an aluminum pump body and impeller. Honda lists a direct-coupled drive with a mechanical seal.

“Self-priming” does not mean the pump can be started dry.

Before starting, the pump housing must be filled with clean water through the priming port. The suction hose must also be airtight and fitted with a suitable strainer and check arrangement.

Once the housing has been filled and the system is properly assembled, the pump can evacuate air from the suction line and begin drawing water from below the pump.

Running the pump dry can overheat and damage the mechanical seal.

1.5-Inch Suction and Discharge Ports

The WX15TCX uses 38 mm or 1.5-inch ports on both the suction and discharge sides.

Using the correct hose is important to reaching the expected performance.

The suction side should use a reinforced suction hose that will not collapse under vacuum. Standard flexible discharge hose is not usually suitable for use as an intake line.

A complete setup may require:

• A 1.5-inch reinforced suction hose
• A compatible suction strainer
• A 1.5-inch discharge hose
• Camlock fittings or threaded adapters
• Hose clamps or couplers
• A discharge nozzle or irrigation connection where appropriate

Arns carries compatible water-pump hose and fittings, including a 1.5-inch by 20-foot intake hose and other 1.5-inch camlock components. Confirm the exact fitting arrangement before ordering, as thread styles and coupler packages can vary.

Up to 40 Metres of Total Head

Honda lists the WX15TCX with a maximum total head of 40 metres or approximately 130 feet. Its maximum suction head is 8 metres or approximately 26 feet.

Total head describes the combined resistance the pump must overcome. It includes:

• Vertical lift on the suction side
• Vertical rise on the discharge side
• Friction through the hoses
• Restrictions caused by fittings and valves
• Pressure required at the outlet

It does not mean the pump will deliver its maximum 240-litre-per-minute flow at a 40-metre lift. As head pressure increases, flow decreases.

For best performance, place the pump as close to the water source as safely possible and minimize suction lift. Centrifugal pumps push water more effectively than they pull it.

Up to 8 Metres of Suction Lift

The WX15TCX is rated for a maximum suction head of up to 8 metres or 26 feet under suitable conditions.

Real-world suction performance can be affected by:

• Elevation above sea level
• Water temperature
• Air leaks
• Hose length
• Strainer restriction
• Loose fittings
• Worn seals
• The vertical distance to the water
• The amount of priming water in the housing

A small air leak on the suction side may prevent the pump from priming even if no water visibly leaks from the connection.

Keeping the suction hose short, straight, well supported, and tightly sealed will usually provide better results than positioning the pump farther away and relying on its maximum theoretical lift.

Compact, One-Person Portability

The WX15TCX weighs approximately 9 kg or 20 lb and measures about:

• 32.5 cm long
• 27.5 cm wide
• 37.5 cm high

Its handle-style frame and steel base make it easy to carry and place on firm ground.

This low weight is valuable when:

• Access is limited
• The pump must be carried over uneven terrain
• Trailer or truck space is limited
• The equipment is stored at a cottage
• One person must set up and remove the pump
• The pump is moved between several tanks or properties

A larger pump may move more water, but it may also be unnecessarily difficult to carry for smaller drainage and transfer jobs.

Honda Water and Trash Pump Comparison

The WX15TCX is the compact clean-water model in this group. The WH pumps are designed to produce greater pressure, while the WT-series construction pumps are designed to handle water containing larger debris.

Honda WX15TCX vs WH15XTC

The WX15TCX and WH15XTC both use approximately 1.5-inch hose connections, but they are designed for different jobs.

The WX15TCX is the better choice when compact size and portability matter most.

The WH15XTC is designed for customers who need water delivered with greater pressure. Honda specifically positions it for irrigation, transfer work, and use with fire-hose-style nozzles. It can move up to 400 litres per minute and produce up to 55 psi.

The WH15XTC should not be called a trash pump. It is a high-pressure water pump and is not designed to replace the solids-handling capability of a WT-series model.

Honda WX15TCX vs WT20XK4C

The WT20XK4C is a two-inch construction trash pump. It is significantly larger, heavier, and more expensive than the WX15TCX, but it is designed for much harsher water conditions.

The WX15TCX is the better choice for:

• Clean water
• Portable tank filling
• Pool drainage
• Smaller property jobs
• Light-duty irrigation
• Situations where one-person carrying matters

The WT20XK4C is the better choice for:

• Muddy excavation water
• Construction dewatering
• Flood cleanup
• Water containing gravel and debris
• Jobs requiring a serviceable trash-pump housing
• Commercial use in harsh conditions

A trash pump should not be selected simply because it is more durable. If the water is clean and portability matters, the WX15TCX is often the more practical machine.

Transfer Pump vs High-Pressure Pump vs Trash Pump

These terms describe different pump designs rather than simple steps in size.

Transfer Pump

A transfer pump is designed to move relatively clean water efficiently from one location to another.

Typical uses include:

• Emptying pools
• Filling tanks
• Moving water between reservoirs
• Small drainage jobs
• General property maintenance

The WX15TCX belongs to this category.

High-Pressure Pump

A high-pressure pump is designed to maintain stronger outlet pressure.

Typical uses include:

• Irrigation
• Sprinklers
• Nozzle spraying
• Longer discharge runs
• Greater elevation changes

The Honda WH15XTC and WH20XTC belong to this category.

Trash Pump

A trash pump is designed with greater internal clearance and service access for water containing solids.

Typical uses include:

• Construction excavations
• Muddy floodwater
• Ditches
• Water containing stones or debris
• Commercial dewatering

The Honda WT20, WT30, and WT40 belong to this category.

Choosing the correct pump style is more important than simply choosing the largest port diameter.

What to Know Before Buying the WX15TCX

It is for relatively clean water

The WX15TCX is not intended for muddy water or large suspended debris. A suitable strainer must be installed on the suction hose.

The pump housing must be primed

The housing needs to be filled with water before starting. “Self-priming” does not mean dry-running.

Hoses may be sold separately

Confirm which suction hose, discharge hose, strainer, clamps, camlocks, and adapters are included with the unit being purchased.

Maximum flow is not available at maximum lift

The 240-litre-per-minute capacity and 40-metre total-head figures describe different points on the pump’s performance curve. Flow declines as resistance and elevation increase.

Suction connections must be airtight

Even a minor air leak can prevent the pump from priming. Suction hose and fittings should be reinforced, correctly sized, and securely sealed.

It is not a firefighting pump

Although the WX15TCX can transfer water, it is not a certified firefighting system. Customers needing greater pressure for nozzles or sprinklers should consider a WH-series high-pressure pump and verify all legal and safety requirements.

Four-stroke engine oil is required

The GXH50 uses separate engine oil. Do not mix two-cycle oil into the gasoline.

Setting Up the Pump Correctly

A basic WX15TCX setup should follow these principles:

1. Place the pump on firm, level ground close to the water source.
2. Install a reinforced 1.5-inch suction hose.
3. Attach the correct suction strainer.
4. Keep the strainer fully submerged but above mud and loose sediment.
5. Confirm that every suction connection is airtight.
6. Attach the discharge hose securely.
7. Fill the pump housing with clean priming water.
8. Check the engine-oil level and fuel.
9. Start the pump according to Honda’s procedure.
10. Confirm that water begins flowing and inspect for leaks.

Never run the engine in a building, vehicle, trailer, shed, or other enclosed area. The pump must be used outdoors with the exhaust directed away from people and occupied spaces.

Hose Selection Matters

A water pump is only as effective as the hose system connected to it.

On the suction side, use a rigid or reinforced hose designed to resist collapse. Keep it as short and straight as practical.

On the discharge side, avoid unnecessary:

• Reductions
• Sharp bends
• Undersized fittings
• Long hose runs
• Restrictive nozzles
• Partially closed valves

Every restriction increases head pressure and lowers flow.

A leaking suction hose may prevent pumping entirely, while a leaking discharge hose normally reduces delivered water and creates a wet work area. Both sides should be inspected before operation.

Operating Safety

Portable pumps create several hazards, including carbon monoxide, hot exhaust, moving water, unstable hoses, fuel, and potentially contaminated water.

Operators should:

• Run the pump outdoors only
• Keep it away from dry grass and combustible material
• Allow the engine and muffler to cool before refuelling
• Never refuel while the engine is running
• Keep children and pets away
• Secure hoses to prevent whipping or movement
• Avoid standing in unstable or contaminated water
• Wear appropriate gloves, footwear, eye protection, and hearing protection
• Never drink water that has passed through the pump
• Follow Honda’s operator manual

Water can erode soil quickly at the discharge point. Direct the outlet where it will not damage landscaping, foundations, roads, neighbouring property, or drainage infrastructure.

Maintenance

Routine maintenance helps the WX15TCX start reliably and maintain its rated pumping capacity.

Important tasks include:

• Checking engine oil before operation
• Changing oil at Honda’s recommended intervals
• Inspecting and cleaning the air filter
• Checking the spark plug
• Using fresh gasoline
• Inspecting the suction strainer
• Checking hoses and fittings for damage
• Inspecting the mechanical seal for leakage
• Cleaning the pump housing after dirty or mineral-heavy water
• Keeping cooling openings clear
• Checking fasteners and the steel base
• Draining the pump after use in freezing conditions

The pump should be shut down immediately if it begins vibrating unusually, loses output, leaks excessively, or produces abnormal engine or pump noise.

Winter Storage in Canada

Water left inside the pump housing can freeze and crack components.

Before storing the WX15TCX through a Canadian winter:

• Drain the pump housing completely
• Remove water from hoses and fittings
• Clean the suction strainer
• Follow Honda’s fuel-storage procedure
• Change or inspect the engine oil as required
• Clean the air filter
• Inspect for leaks or damage
• Store the pump in a dry location
• Protect ports from dirt and pests
• Keep the unit away from ignition sources

The pump should not be stored immediately after operation in a cold space without first draining it thoroughly.

Why Buy Your Honda WX15TCX From Arns?

Arns Equipment is a family-owned Honda Power Equipment dealer serving Calgary, Southern Alberta, and customers across Canada. Our team brings more than 80 years of outdoor power equipment experience to pump selection, setup, parts, and service.

When purchasing a Honda water pump through Arns, our team can help you:

• Determine whether you need a transfer, high-pressure, or trash pump
• Compare the WX15TCX with the WH15XTC and WT20XK4C
• Calculate the effect of suction lift and discharge elevation
• Select compatible intake and discharge hoses
• Match camlocks, strainers, clamps, and fittings
• Explain priming and safe setup
• Source maintenance and repair parts through PartsHouse.ca
• Arrange local Honda warranty support and professional service
• Avoid buying a heavy trash pump when a compact transfer pump is better suited to the water

You can also view the current Honda water-pump selection at Arns and contact our Calgary team for help building a complete hose and fitting package.

For acreage owners, cabin users, landscapers, and homeowners who need to move clean water without carrying a large framed pump, the Honda WX15TCX offers an excellent combination of portability, dependable Honda four-stroke power, and useful 1.5-inch transfer capacity.
