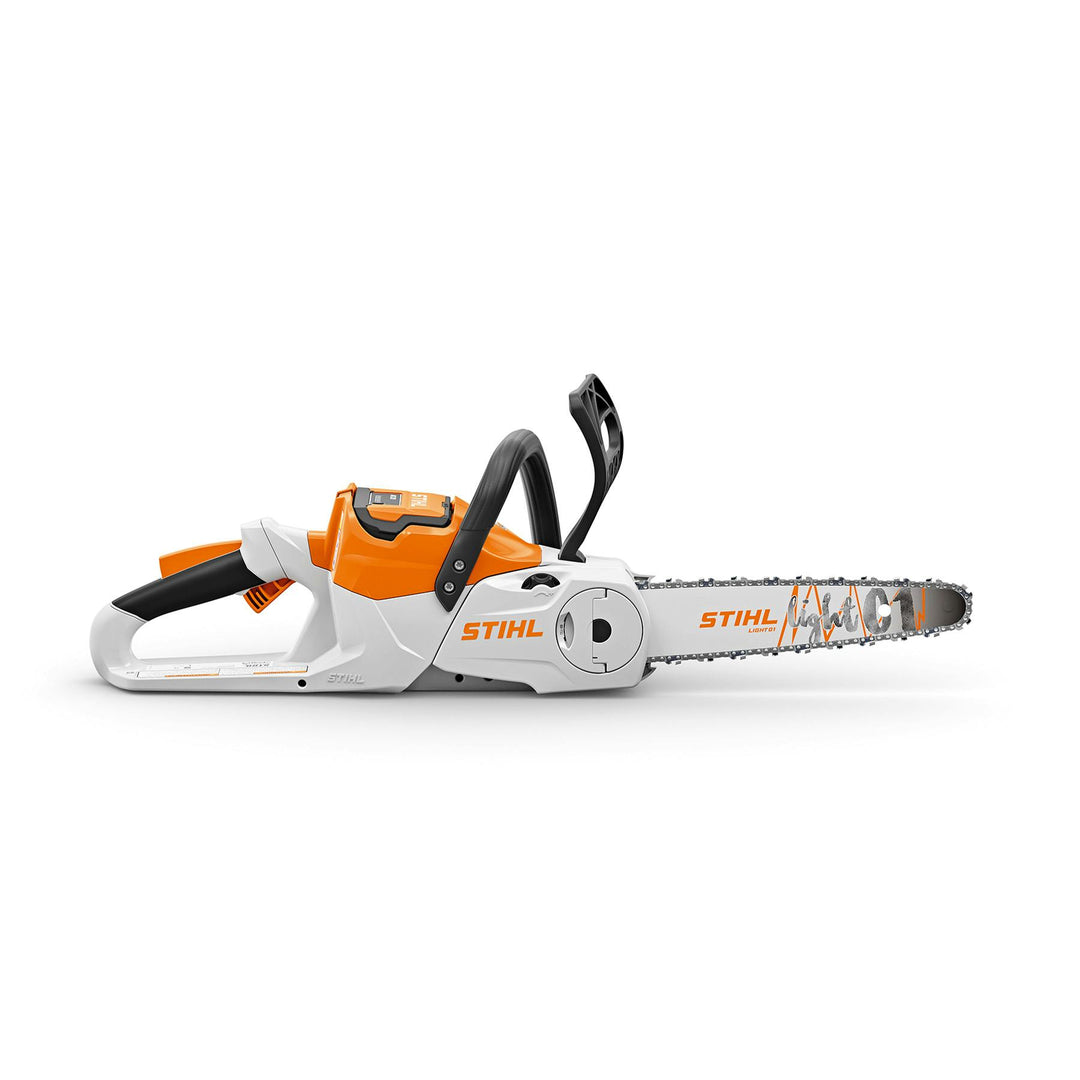

STIHL® MSA 60U C-B Battery Chainsaw

Ematic™ Lubrication System – The Ematic™ guide bar, when used with STIHL OILOMATIC® saw chain, will provide proper lubrication and less oil consumption than conventional methods. The system works because two ramps, strategically placed in the guide bar rail, help contain the flow of oil and direct all lubrication to the sliding faces of the bar and chain links as well as the rivets and driver holes, which in turn can reduce bar oil consumption up to 50%.

• STIHL Electric Motor – Lightweight and compact, STIHL® electric motors require minimal maintenance and feature low noise levels and reduced vibration.

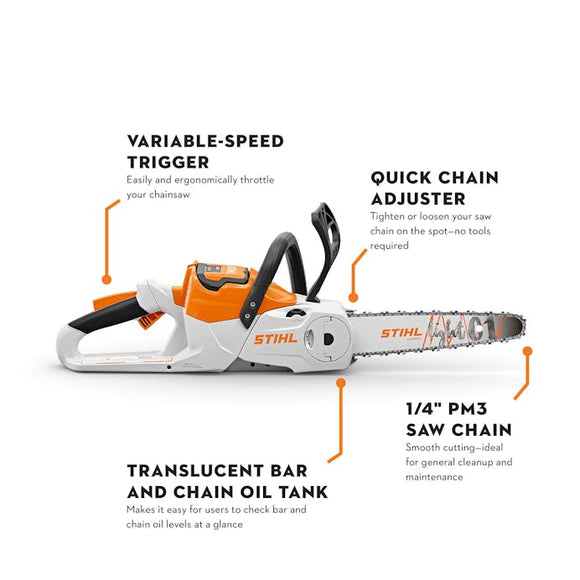

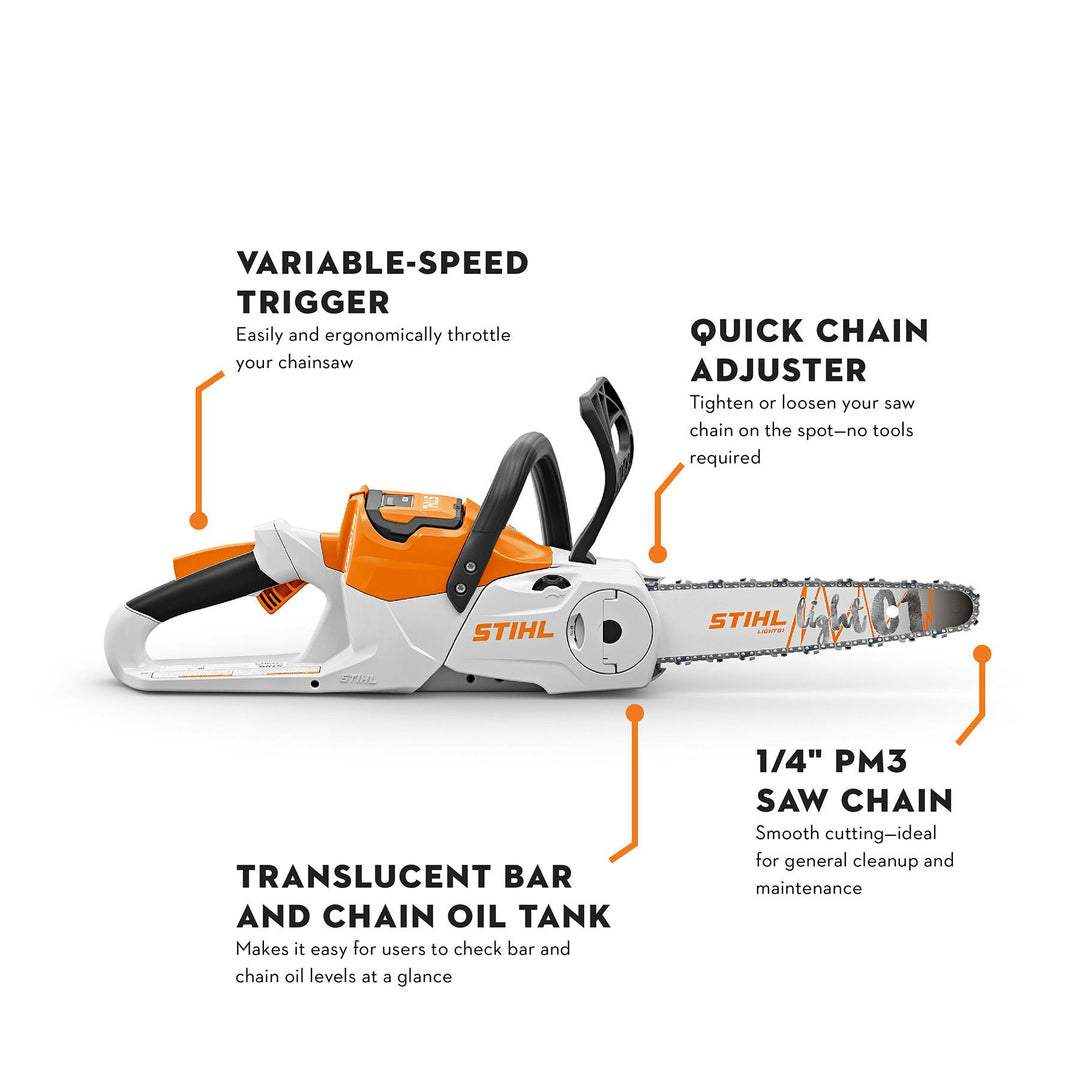

• Quick Chain Adjuster (QCA) (B) – The Quick Chain Adjuster (QCA) (B) allows the user to adjust the tension of the chain without the use of tools. This allows for easy chain adjustment.
• Translucent Bar and Chain Oil Tank – The translucent bar and chain oil tank makes it easy for users to check oil levels at a glance.
• Lightweight Portability – This product is lightweight for easy portability, great maneuverability, and extended use.
• Rubberized Soft-Touch Handle – Soft rubber texture is both easy to grip and makes the product comfortable to hold for extended periods.
• Variable-Speed Trigger – The variable-speed trigger allows precise control for each task.
• Throttle Trigger Interlock – This safety feature must be depressed before the trigger can be activated.
• STIHL Quickstop® – STIHL® chainsaws are equipped with a chain stopping system designed to reduce the risk of injury in certain kickback situations. It is called a STIHL Quickstop® chain brake. The STIHL Quickstop® chain brake is designed to stop the rotation of the chain if activated by the operator’s hand or by inertia if the saw kicks back with sufficient force. In some working positions, the STIHL Quickstop® chain brake can be activated by inertia, stopping the chain within fractions of a second.
• Made in America – A majority of STIHL® products sold in America are made in America of U.S. and global materials.
• Brushless Motor – The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL®.

Specifications:

• Power Source: Battery
• Powerhead Weight: 6.4 lbs
• Weight (with AK 20): 9 lbs
• Mechanical Power Output: 0.70 kW
• Electrical Power Input: 0.90 kW
• Guide Bar Length (Recommended): 12 in
• Chain Type: ¼” PM3 OILOMATIC®
• Chain Oil Capacity: 3.7 oz
• Battery System: AK System
• Run Time (with AK 20): Up to 40 min
• Voltage: 36V
• Intended Use: Homeowner

What is the STIHL MSA 60 C-B chainsaw?
The STIHL MSA 60 C-B is a lightweight cordless chainsaw in the STIHL AK Homeowner Battery System, designed for yard maintenance, pruning and firewood cutting.

Who is the STIHL MSA 60 C-B best suited for?
It is ideal for homeowners who want a quiet, easy-to-use chainsaw for general property cleanup and occasional cutting.

What battery system does the MSA 60 C-B use?
It operates on the 36V STIHL AK Battery System.

What battery is recommended for the MSA 60 C-B?
The AK 20 battery is the recommended pairing for this chainsaw.

How long does the MSA 60 C-B run with an AK 20 battery?
STIHL lists up to approximately 40 minutes of runtime.

Will the actual runtime vary?
Yes. Runtime depends on battery charge, wood type, cutting diameter, chain condition, operating style and weather conditions.

Is the battery included with the MSA 60 C-B?
It may be sold as a tool-only model or as a set with a battery and charger. Confirm the exact package before purchase.

How powerful is the STIHL MSA 60 C-B?
It has a listed electrical input of 0.90 kW and mechanical output of 0.70 kW.

How much does the MSA 60 C-B weigh?
The powerhead weighs approximately 6.4 lb without a battery.

How much does it weigh with the AK 20 battery?
The listed total weight is approximately 9 lb.

What bar length does the STIHL MSA 60 C-B use?
The recommended guide-bar length is 12 inches.

What chain does the MSA 60 C-B use?
It uses a 1/4-inch STIHL PM3 Oilomatic chain.

Can the STIHL MSA 60 C-B cut firewood?
Yes. It is suitable for light and moderate homeowner firewood cutting within the capacity of its 12-inch bar.

Is the MSA 60 C-B good for pruning?
Yes. Its compact size and low weight make it well suited to pruning branches and maintaining trees around the yard.

Can the MSA 60 C-B cut down trees?
It can handle suitable small trees when used by an experienced operator with proper safety equipment.

Is the STIHL MSA 60 C-B a professional chainsaw?
No. It is designed for homeowner use rather than professional forestry or daily commercial cutting.

Does the MSA 60 C-B have a brushless motor?
Yes. Its brushless motor is designed for efficient performance, low maintenance and reduced vibration.

Does the MSA 60 C-B have variable speed?
Yes. The variable-speed trigger allows the operator to control chain speed for different tasks.

Does the MSA 60 C-B have tool-free chain adjustment?
Yes. The STIHL Quick Chain Adjuster allows the chain tension to be changed without a separate tool.

Does the STIHL MSA 60 C-B require chain oil?
Yes. It requires bar and chain oil for proper lubrication.

How much chain oil does the MSA 60 C-B hold?
The chain-oil tank holds approximately 3.7 oz.

Can the oil level be checked easily?
Yes. The translucent oil tank allows the level to be viewed at a glance.

What is the STIHL Ematic lubrication system?
The Ematic guide bar and Oilomatic chain direct oil toward key contact points for efficient lubrication.

Can the Ematic system reduce oil use?
STIHL states that it can reduce bar-oil consumption by up to 50% compared with conventional lubrication methods.

What safety features does the MSA 60 C-B include?
It includes a throttle-trigger interlock and STIHL Quickstop chain brake.

What does the STIHL Quickstop chain brake do?
It is designed to stop the chain rapidly when activated manually or by inertia during certain kickback situations.

Is the STIHL MSA 60 C-B comfortable to use?
Yes. Its lightweight construction, low vibration and rubberized soft-touch handle help improve comfort and control.

Is the MSA 60 C-B quieter than a gas chainsaw?
Yes. Its electric motor operates with less noise and produces no direct exhaust emissions.

Does the MSA 60 C-B require fuel mixing?
No. It runs entirely on a rechargeable battery.

What maintenance does the MSA 60 C-B require?
Routine maintenance includes sharpening and tensioning the chain, filling the oil tank, cleaning the guide bar and inspecting the chain brake and sprocket area.

What are the main benefits of the STIHL MSA 60 C-B?
Its main benefits include lightweight cordless operation, up to 40 minutes of runtime, a 12-inch bar, tool-free chain adjustment and compatibility with the STIHL AK Battery System.

Where can I buy the STIHL MSA 60 C-B chainsaw in Canada?
The STIHL MSA 60 C-B chainsaw is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.
