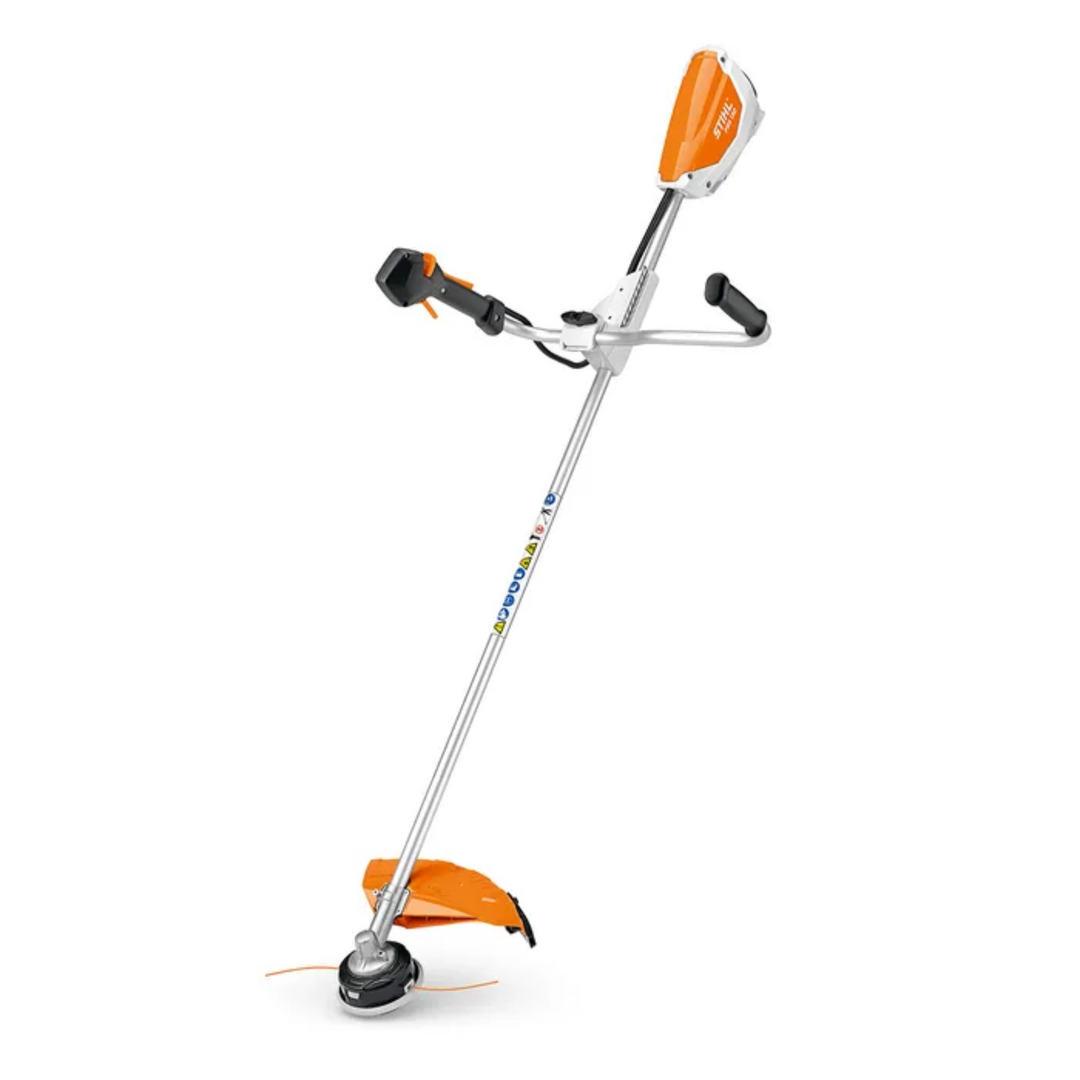

STIHL® FSA130

Features:

• Quiet Operation: The STIHL Cordless tools operate quietly, making them suitable for noise-sensitive areas like schools, hotels, and parks. Ear protection is not necessary.
• Bulbar Handle: The bulbar handle, when used with a harness, enables a smooth mowing action from left to right, making it ideal for mowing large areas.
• STIHL Electric Motor (EC): The brushless electric motor (EC) by STIHL is highly energy-efficient and maintenance-free. It ensures optimal power output at all times, runs quietly, and generates minimal vibrations.
• AutoCut C Easy Feed Mowing Head: This mowing head is suitable for trimming work. It automatically extends the double mowing lines when tapped on the ground and features a comfort grip for easy reloading.
• Charge Level Indicator: LEDs on the side of the Battery indicate the charge level, providing users with easy monitoring of the battery status.
• Selectable Speed: The brushcutter offers three speed levels. Choosing a lower speed saves energy, extending the battery's runtime, while higher speeds are suitable for tougher mowing tasks.
• Socket: The tool features a socket for connecting to a STIHL AP or AR Battery using a connecting cable. This allows the battery to be worn conveniently on the body, reducing the tool's weight.

Specification:

Rated Voltage: 36 V

Weight:

• 4.5 kg
• 9.9 lb

Sound Pressure Level: 83 dB(A)

Sound Power Level: 94 dB(A)

Vibration Level (Left):

• 1.9 m/s² (for one set of values)
• 2.9 m/s² (for another set of values)

Vibration Level (Right):

• 1.1 m/s² (for one set of values)
• 2.0 m/s² (for another set of values)

Overall Length: 175 cm

Standard Cutting Attachment: Grass cutting blade 260-2

Working Time with Different Batteries:

• AP 100: Up to 25 min
• AP 200: Up to 50 min
• AP 300: Up to 70 min
• AP 300 S: Up to 100 min (1 stage with GSB)
• AP 300 S (2): Up to 87 min
• AR 1000: Up to 200 min
• AR 2000: Up to 300 min
• AR 2000 L: Up to 310 min
• AR 3000: Up to 360 min
• AR 3000 L: Up to 430 min

Battery Working Time: Stage 1 with GSB

What is the STIHL FSA 130 cordless brushcutter?
The STIHL FSA 130 is a professional battery-powered brushcutter designed for mowing large areas of tough grass and dense vegetation.

Who is the STIHL FSA 130 best suited for?
It is ideal for professional landscapers, municipal crews, grounds-maintenance teams and other users working across large properties.

What battery system does the STIHL FSA 130 use?
It operates with STIHL AP and AR battery systems through a connecting cable.

Can an AP battery be installed directly into the FSA 130?
No. The tool uses an external battery connection rather than an onboard battery slot.

What is required to use an AP battery with the FSA 130?
You need a compatible battery belt with AP holster and connecting cable, or the STIHL AP backpack carrying system.

What is required to use an AR backpack battery?
A compatible connecting cable is required to connect the brushcutter to an AR backpack battery.

What is the connecting cable part number?
The supplied information lists accessory part number 0000 007 1045.

Why does the FSA 130 use an external battery?
Keeping the battery off the tool reduces the weight carried in the operator’s hands and improves comfort during longer jobs.

What battery is the STIHL FSA 130 best suited to?
It is particularly well suited to STIHL AR backpack batteries for longer professional mowing sessions.

Is a battery included with the STIHL FSA 130?
The supplied information does not confirm that a battery, carrying system or connecting cable is included. Confirm the exact package before purchase.

What is the rated voltage of the STIHL FSA 130?
It operates at 36V.

How much does the STIHL FSA 130 weigh?
The listed tool weight is approximately 4.5 kg, or 9.9 lb.

Does the listed weight include the battery?
No. The battery is carried separately and connected to the tool by cable.

How long is the STIHL FSA 130?
The listed overall length is approximately 175 cm.

What type of handle does the FSA 130 use?
It uses a bike-style handle designed for large-area mowing.

Why is the bike handle useful?
It supports a smooth side-to-side mowing motion and gives the operator greater control across open areas.

Should the STIHL FSA 130 be used with a harness?
Yes. A single-strap harness is included to help support the tool and improve control.

What cutting attachment is included?
The supplied information states that a 260-2 grass-cutting blade is included.

What is the cutting diameter with the grass blade?
The cutting-circle diameter is approximately 260 mm.

Can the STIHL FSA 130 use a mowing head?
Yes. The supplied information also references the STIHL AutoCut C Easy Feed mowing head.

How does the AutoCut C mowing head work?
The double trimmer line advances when the head is tapped against the ground.

Is the AutoCut C head easy to reload?
Yes. It includes a comfort-grip design intended to make line reloading easier.

Can the FSA 130 use other cutting attachments?
Only cutting tools specifically approved by STIHL for the FSA 130 should be installed.

Can the STIHL FSA 130 cut brush?
It is designed for tough grass and dense vegetation, but a dedicated clearing saw may be better for woody brush and saplings.

What type of motor does the FSA 130 use?
It uses a brushless STIHL EC electric motor.

What are the benefits of the EC motor?
The motor is efficient, quiet, low-vibration and requires very little routine maintenance.

Does the STIHL FSA 130 have adjustable power settings?
Yes. It offers three selectable speed levels.

Why are three speed settings useful?
Lower settings conserve battery energy, while higher settings provide more power for tougher vegetation.

Does the STIHL FSA 130 have a battery indicator?
Battery charge indicators are located on the compatible battery rather than the tool itself.

Is the STIHL FSA 130 quiet?
Yes. It operates more quietly than a comparable gas-powered brushcutter.

Can it be used in noise-sensitive areas?
Yes. It is well suited to schools, hotels, parks, residential areas and other locations where reduced noise is important.

Is hearing protection required?
The supplied information states that hearing protection is not necessary, but operators should still follow workplace rules and STIHL safety guidance.

What is the sound pressure level?
The listed sound pressure level is approximately 83 dB(A).

What is the sound power level?
The listed sound power level is approximately 94 dB(A).

What are the vibration levels?
The supplied information lists two different vibration sets. Left-handle values are 1.9 or 2.9 m/s², while right-handle values are 1.1 or 2.0 m/s².

Why are two vibration values listed?
They may apply to different cutting attachments or test configurations. The exact values should be matched to the attachment before publishing.

Does the STIHL FSA 130 produce exhaust emissions?
No. It produces no direct exhaust emissions during operation.

Does it require gasoline or mixed fuel?
No. It operates entirely on battery power.

Does it require engine oil changes?
No. It has no gas engine, carburetor, spark plug or engine-oil system.

What is the runtime with an AP 100 battery?
The listed runtime is up to approximately 25 minutes.

What is the runtime with an AP 200 battery?
The listed runtime is up to approximately 50 minutes.

What is the runtime with an AP 300 battery?
The listed runtime is up to approximately 70 minutes.

What is the runtime with an AP 300 S battery?
The supplied information lists up to approximately 100 minutes in one Stage 1 grass-blade configuration and approximately 87 minutes in another configuration.

What is the runtime with an AR 1000 battery?
The listed runtime is up to approximately 200 minutes.

What is the runtime with an AR 2000 battery?
The listed runtime is up to approximately 300 minutes.

What is the runtime with an AR 2000 L battery?
The listed runtime is up to approximately 310 minutes.

What is the runtime with an AR 3000 battery?
The listed runtime is up to approximately 360 minutes.

What is the runtime with an AR 3000 L battery?
The listed runtime is up to approximately 430 minutes.

Why does runtime vary between batteries?
Runtime depends on battery capacity, speed setting, cutting attachment, vegetation density and operating technique.

Is the STIHL FSA 130 suitable for extended professional use?
Yes. Its low tool weight, external battery system, bike handle and long AR battery runtimes make it suitable for lengthy mowing jobs.

Is the STIHL FSA 130 weather resistant?
A weather-resistance rating is not included in the supplied information and should be confirmed before use in wet conditions.

What maintenance does the STIHL FSA 130 require?
Routine care includes cleaning the guard and cutting attachment, checking the blade or line, inspecting fasteners and keeping the electrical connections clean.

Should the battery be disconnected before maintenance?
Yes. Disconnect the battery cable and make sure the cutting attachment has stopped before cleaning or servicing the tool.

How should the STIHL FSA 130 be stored?
Disconnect the battery, clean the machine and store the tool, cable and battery system in a dry, secure location.

What protective equipment should be worn?
Wear eye and face protection, gloves, long pants, sturdy boots and suitable protective clothing.

What are the main benefits of the STIHL FSA 130?
Its main benefits include professional battery performance, a lightweight tool body, three speed settings, a bike handle and compatibility with high-capacity AR backpack batteries.

Where can I buy the STIHL FSA 130 cordless brushcutter in Canada?
The STIHL FSA 130 cordless brushcutter is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.
