Toro Z-Master 60" 4000 Series HDX Pro (74016)-1
Toro Z-Master 60" 4000 Series HDX Pro (74016)-2

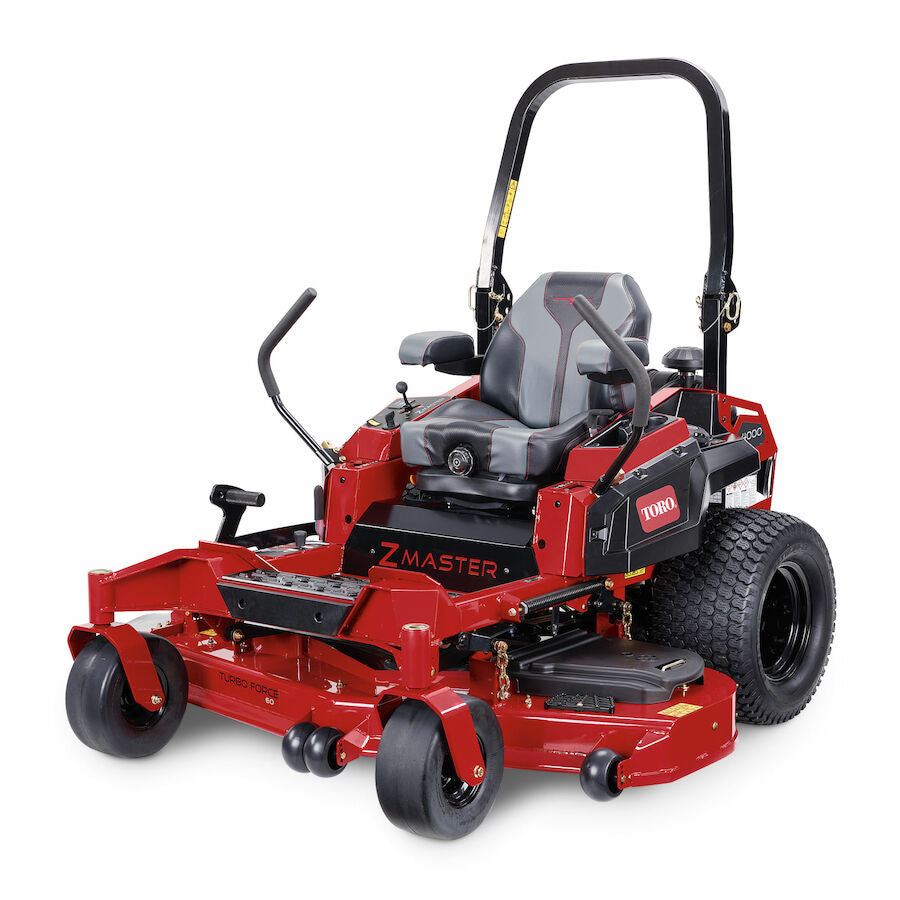

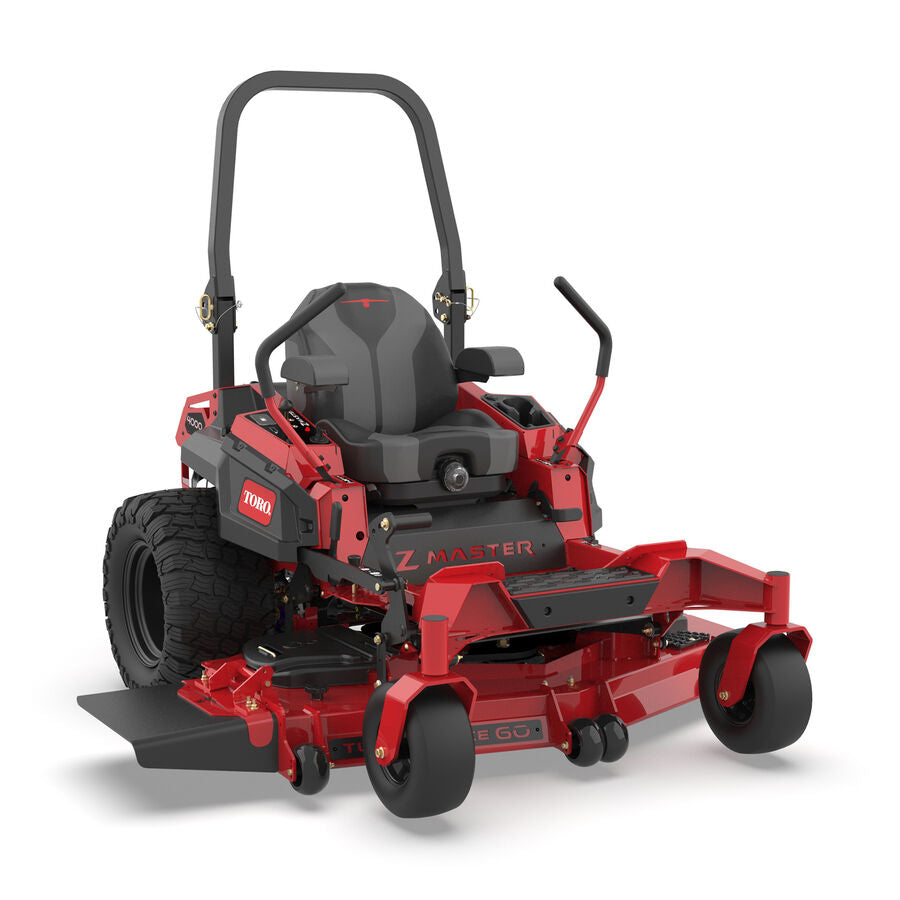

Toro Z-Master 60" 4000 Series HDX Pro (74016)

$22,666.00

Toro SKU: 74016

Only 1 in stock!
Description Technical Specs Compatible With FAQ
The Z-Master 4000 HDX Pro has been engineered to last and built to reign. Redefine durability with a powerful 31 hp* Kawasaki FX921V engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tires, 24 in. Turf Tires, and a 60 in. 7-Gauge High-Strength Steel TURBO FORCE® cutting deck. Add in the hour meter, USB ports, phone holder, and a cup holder, you’ll have everything you need from the comfort of the deluxe suspension seat to help you power through long days.
  • Go full throttle and have confidence in the precise cut from our TURBO FORCE® deck with I-beam front end paired with tubular chassis and bumper.
  • Keep your phone and drink at arm's reach.
  • Keep tabs on time and keep devices powered up with the hour meter and USB ports.
  • Easy on and off with a step-through front end, deck step plate, and anti-slip floormat.
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Air Filter: Heavy-Duty Donaldson® Canister-Style Air Cleaner
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
Blades: 0.204 in. (0.5 cm) Heat-Treated Steel
Box Dimensions: 91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm
CARB Compliant: Not CARB Compliant
Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Semi-Pneumatic
Clutch: Electromagnetic
Deck Design: 60 in. (152.4 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Material: 7-Gauge High-Strength Steel
Deck Size: 60 in. / 152 cm
Discharge Chute: Rubber
Drive Tires: Turf Tires 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
Engine: 31 hp* Kawasaki FX921V (999 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
Engine Brand: Kawasaki
Engine Displacement: 999 cc
Engine Horsepower: 31.0 hp
Foot Operated Height of Cut: Standard
Forward Ground/Transport Speed: Up to 12.0 mph / 19.3 kph
Fuel Capacity: 10 gal. / 37.8 L / 40 Qt.
Fuel Type: Gasoline
Height of Cut: 1.5 - 5.5 in. / 3.8 - 14.0 cm
Hour Meter: Standard
Lighting: Optional
Product Features: Deluxe Seat, Electric Start, Foot Operated Height of Cut, Gas Powered, Hour Meter, XL Frame
Product Type: Zero Turn Mowers
Roll-Over Protection System (ROPS): Folding; Standard
Seat: Handcrafted Deluxe Suspension Seat with Arm Rests
Spindle Bearings: Maintenance-Free
Spindle Housing: 9 in. / 2.9 cm Diameter Aluminum
Start Type: Electric
Steering Controls: 1.4 in. (3.6 cm) Diameter Grips; Adjustable, Dampened
Transmission: ZT-5400 Integrated Pumps and Wheel Motors
Weight: 1,260 lbs / 571.5 kg
