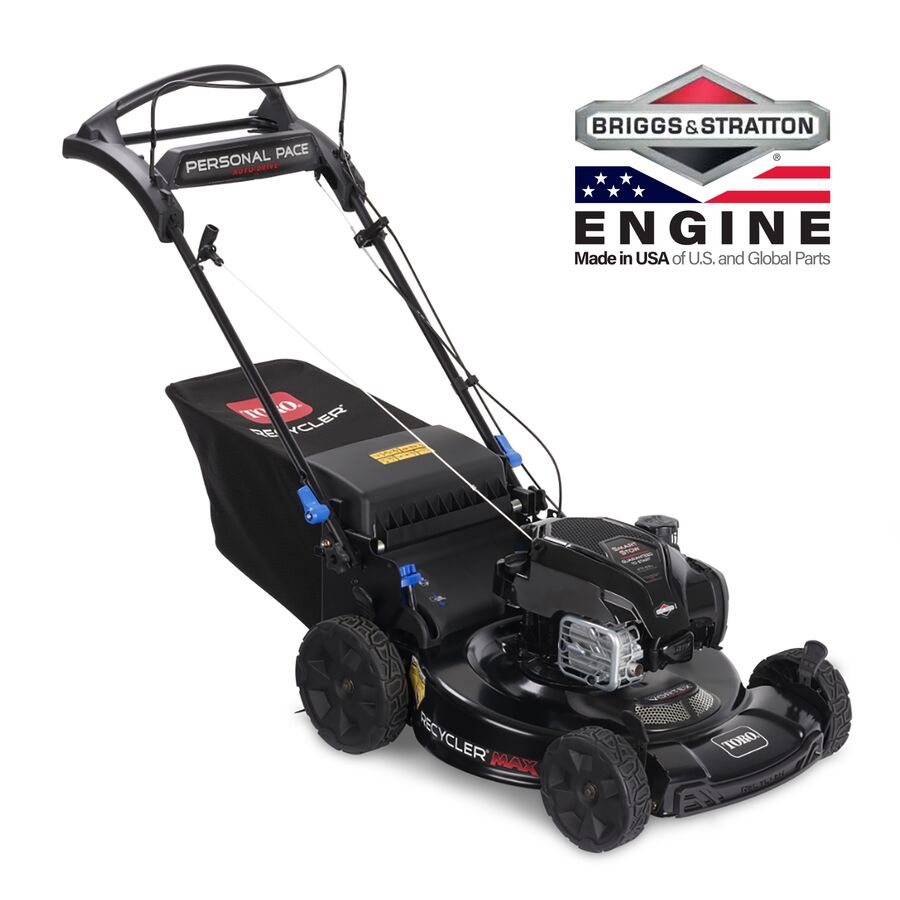

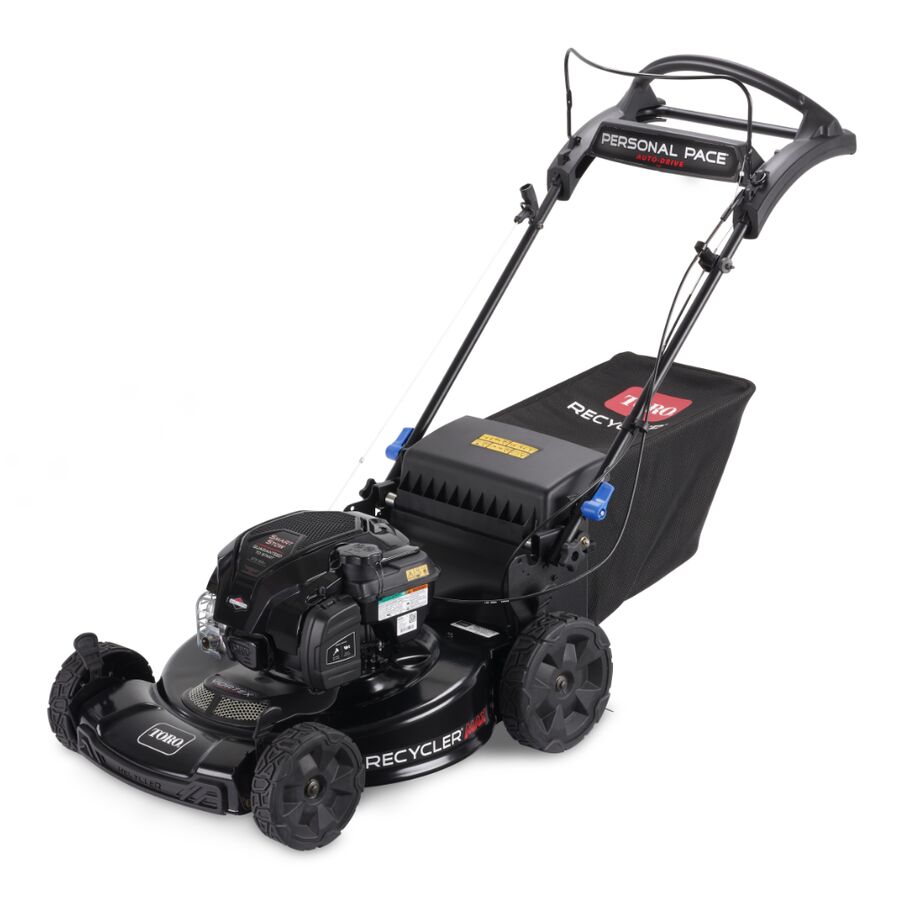

Toro® 22in Recycler® Max Gas Lawn Mower | Personal Pace® SmartStow® with Spin-Stop™

Grass Collector
Bagger Capacity: 1.8 bushels

Blade Drive
Blade Design: 0.135 in. / 0.343 cm
Blade Engagement: Blade Brake Clutch (BBC)
Blade Tip Speed: 14,000 - 18,000+ ft/min / 4,267 - 5,486 m/min
Number of Blades: 1

Dimensions
Box Dimensions: 42.12 in. x 24.5 in. x 17.25 in. / 106.99 cm x 62.23 cm x 43.81 cm
Weight: 80 lbs / 36.3 kg

Cutting Deck
Deck Design: Recycler® Max
Deck Material: 13 Gauge Steel
Deck Size: 22 in / 56 cm
Height of Cut: 1.0 - 4.0 in. / 2.5 - 10.2 cm
Height of Cut Adjustment: 4-point

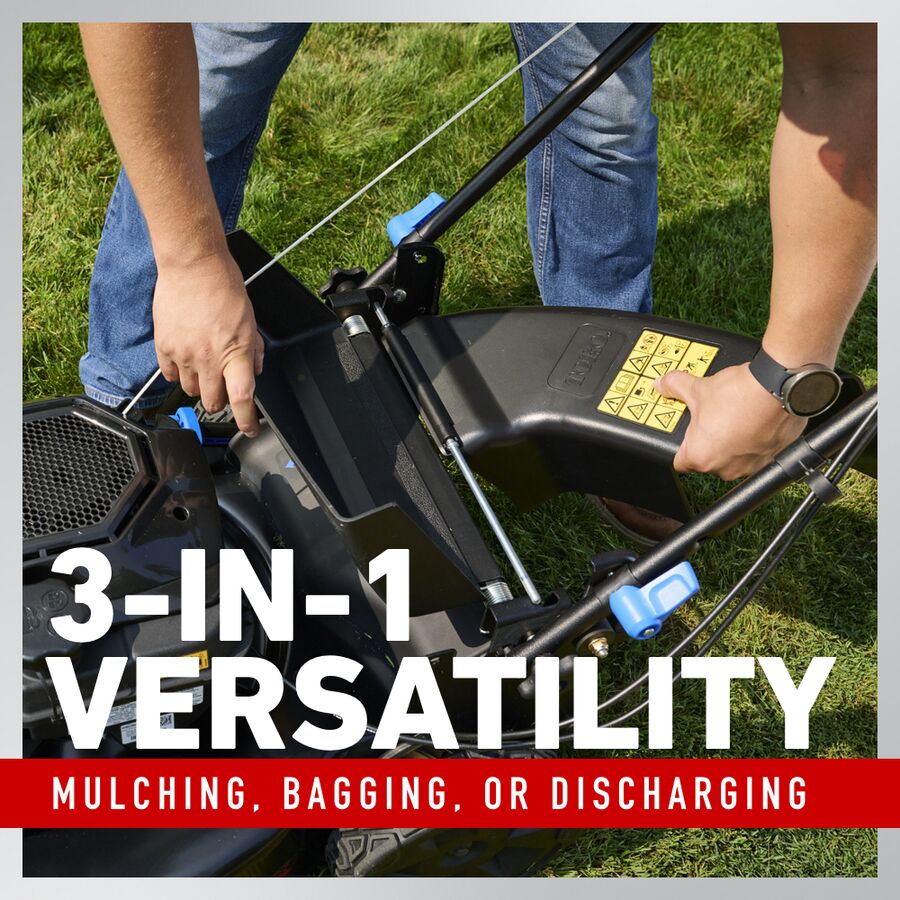

Mulch, Bag, Side Discharge: 3-in-1 ready
Discharge Chute: Not Included in the box. The free discharge chute for walk behind mowers can be requested at time of registration at Toro.com/register

Drive System

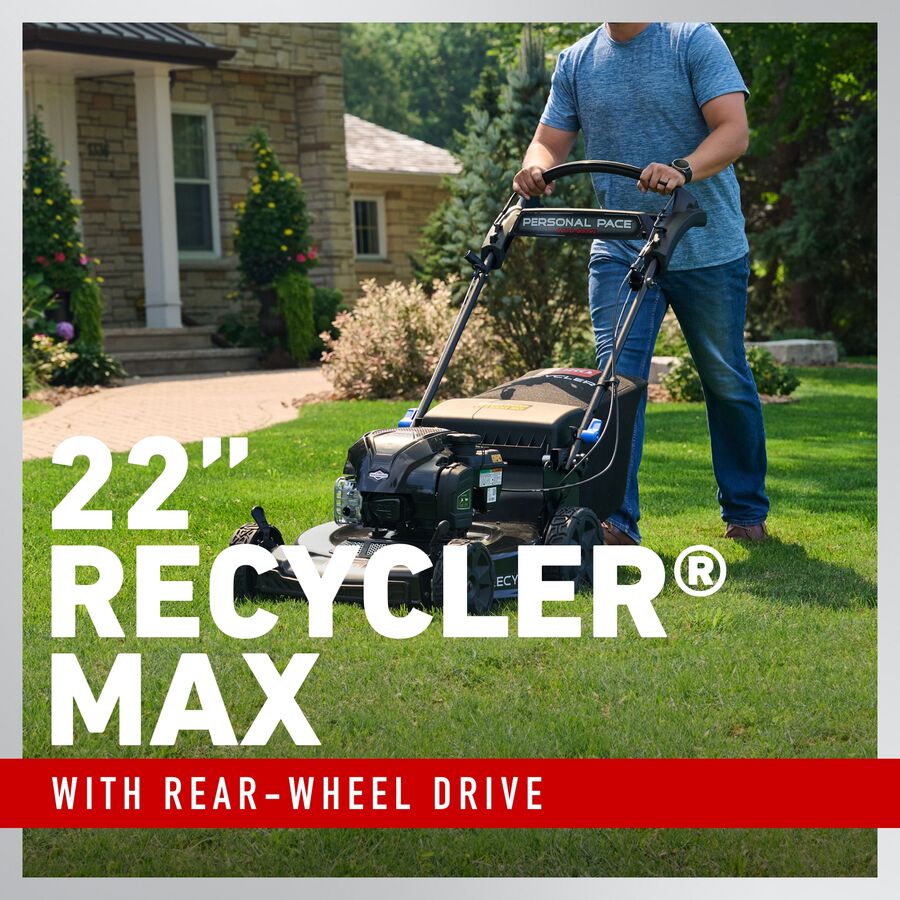

Drive System: Rear Wheel Drive
Drive Type: Belt
Forward Mowing Speed: Up to 4.5 mph / 7.2 kph
Self Propel System: Personal Pace

Engine

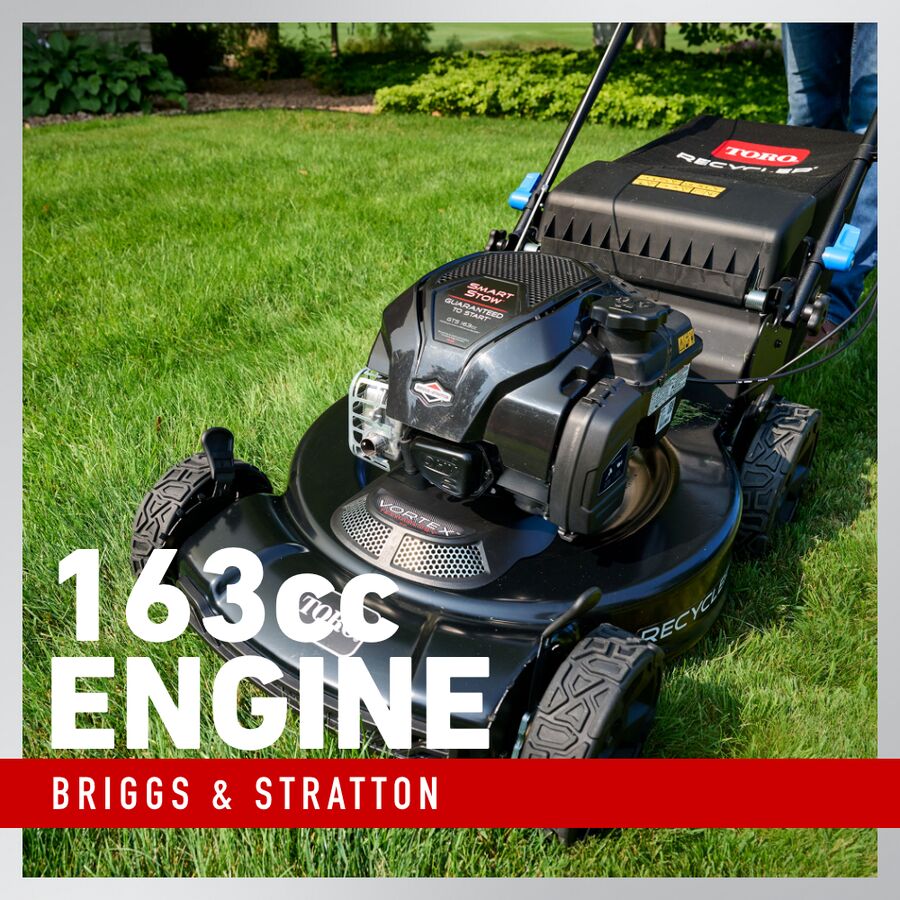

Engine: 7.25 ft-lb Gross Torque* Briggs & Stratton 163cc
Engine Brand: Briggs and Stratton
Engine Displacement (cc): 163 cc
Fuel Capacity: 0.24 gal. / 0.91 L / 0.96 Qt.
Fuel Type: Gasoline
Guaranteed to Start Promise: 5-Year GTS
Recommended Oil Type: SAE 30, 10W-30
Spark Plug Type: Resistor
Start Type: Pull Cord

General
Handle Type: SmartStow, 1-Piece, Adjustable Height
Included in the Box: Engine Oil
Product Type: Walk Behind Mowers
Product Use: Residential
Wheel Height: Front 8 in. / 20.3 cm; Rear 9.65 in. / 24.5 cm
Yard Size: Up to 1 acre

What engine does the Toro Recycler Max 21486 use?
The mower is powered by a 163cc Briggs & Stratton engine that produces 7.25 ft-lb of gross torque.

Is the Toro Recycler Max 21486 self-propelled?
Yes. It features Toro’s Personal Pace self-propel system, which automatically adjusts to match your walking speed.

What type of drive system does it use?
The mower uses a belt-driven rear-wheel-drive system for added traction and control.

How fast can the mower travel?
The Personal Pace system allows forward mowing speeds of up to 4.5 mph, or approximately 7.2 km/h.

How wide is the cutting deck?
The Toro Recycler Max 21486 has a 22-inch, or 56-centimetre, cutting deck.

What size yard is the mower suitable for?
Toro recommends the Recycler Max 21486 for residential properties up to approximately one acre.

What is the Recycler Max cutting system?
Recycler Max is Toro’s enhanced cutting system designed to produce finer grass clippings for improved mulching performance and more even nutrient return to the lawn.

Can the Toro Recycler Max 21486 mulch grass clippings?
Yes. The mower is designed for mulching and finely processes clippings before returning them to the lawn.

Can the mower bag grass clippings?
Yes. It has a grass bag with a capacity of approximately 1.8 bushels.

Can the Toro Recycler Max 21486 side discharge?
Yes. The mower is 3-in-1 ready for mulching, bagging and side discharge.

Does the side-discharge chute come in the box?
No. The chute is not included, but Toro states that a free discharge chute can be requested when the mower is registered.

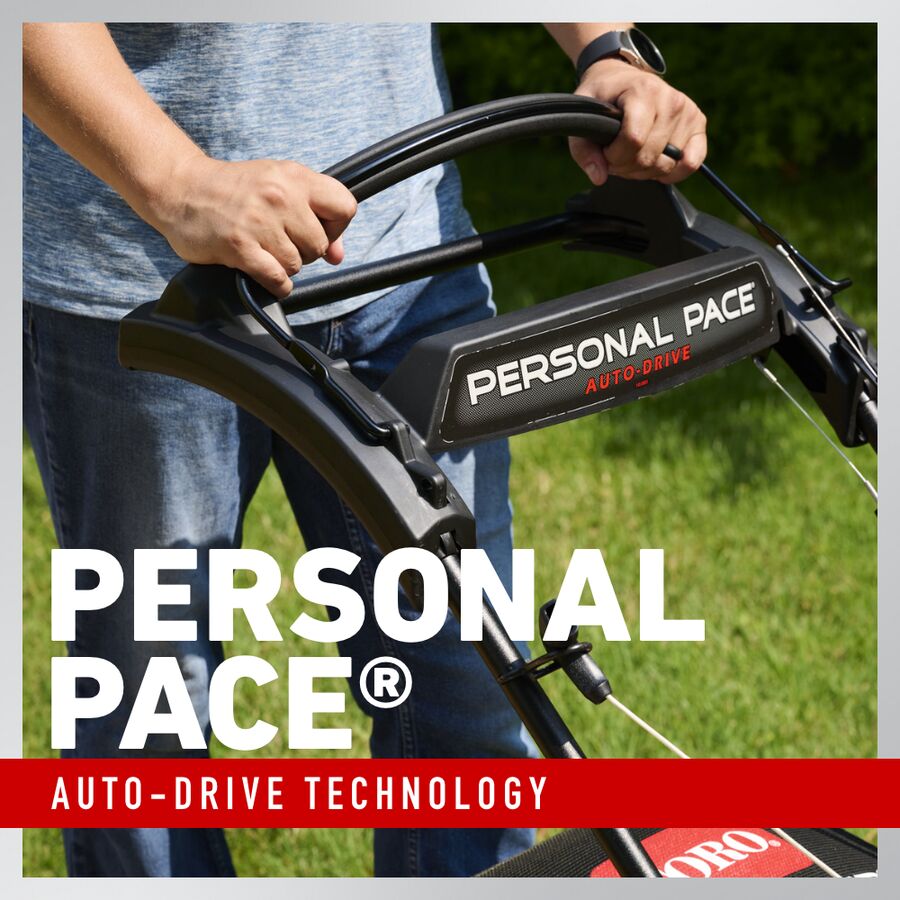

What is Personal Pace?
Personal Pace automatically changes the mower’s drive speed based on how quickly or slowly the operator pushes against the handle.

What is Spin-Stop blade control?
Spin-Stop, also called a Blade Brake Clutch, stops the blade without shutting off the engine.

Why is Spin-Stop useful?
It allows you to empty the grass bag, move debris or cross a driveway without repeatedly restarting the engine.

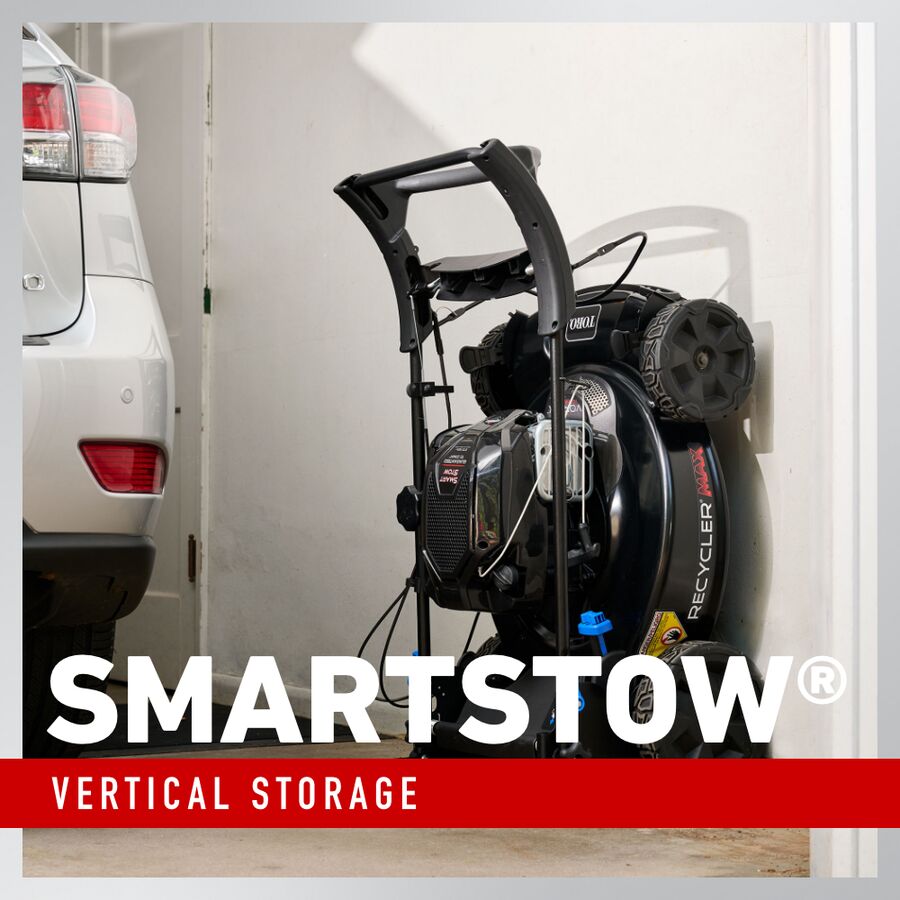

What is SmartStow?
SmartStow allows the mower to be stored vertically, helping save space in a garage or shed.

Can the handle height be adjusted?
Yes. The one-piece SmartStow handle has adjustable height settings.

What is the cutting-height range?
The cutting height can be adjusted from approximately 1 inch to 4 inches.

How is the cutting height adjusted?
The mower uses a four-point height-adjustment system, with an adjustment at each wheel.

What is the mower deck made from?
The 22-inch Recycler Max deck is made from durable 13-gauge steel.

How many blades does the mower use?
The Toro Recycler Max 21486 uses one cutting blade.

Does the mower have electric start?
No. It uses a pull-cord starting system.

What type of oil does the mower use?
Toro recommends SAE 30 or 10W-30 engine oil.

Is engine oil included?
Yes. Engine oil is included in the box.

How much fuel does the mower hold?
The fuel tank holds approximately 0.24 gallons, or 0.91 litres.

What warranty does the mower have for starting?
The mower is covered by Toro’s five-year Guaranteed to Start promise, subject to Toro’s terms and maintenance requirements.

How much does the Toro Recycler Max 21486 weigh?
The mower weighs approximately 80 pounds, or 36.3 kilograms.

What size wheels does it have?
It has 8-inch front wheels and 9.65-inch rear wheels.

Where can I buy the Toro Recycler Max 21486?
The Toro Recycler Max 21486 is available from Arns Equipment in Calgary.
