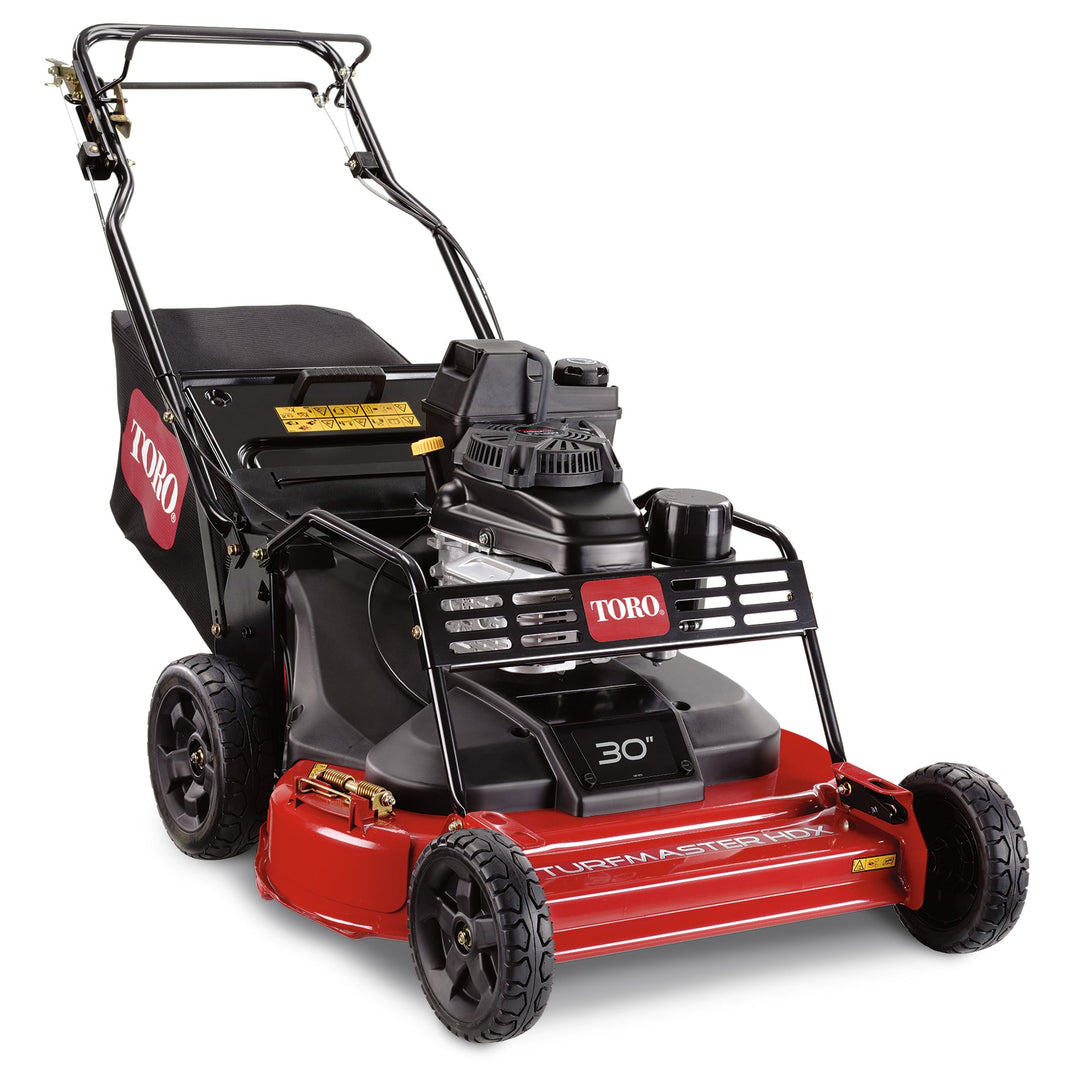

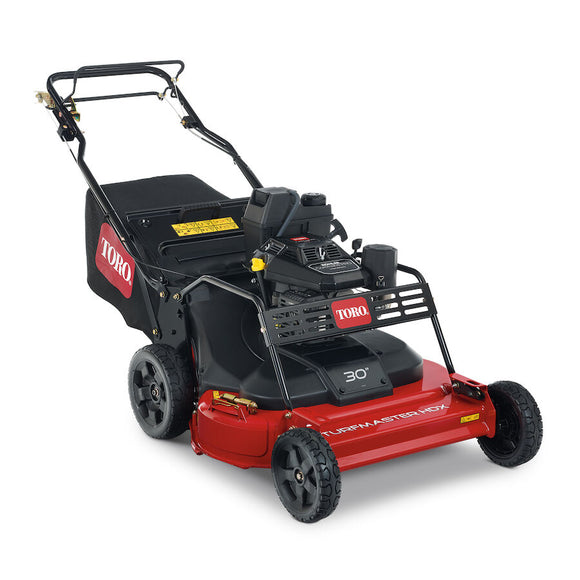

Toro 30 in. (76 cm) TurfMaster® HDX Walk Behind Commercial Gas Lawn Mower (22235)

Product Type: Walk-Behind Mower

Product Use: Commercial

Engine

• Brand: Kohler
• Model: CV224 Command Pro
• Displacement: 224 cc
• Fuel Type: Gasoline
• Fuel Capacity: 1 gal (3.8 L / 4 qt)
• Start Type: Pull Cord

Cutting System

• Deck Size: 30 in (76 cm)
• Deck Material: 13-Gauge Steel with Cast Aluminum Frame
• Blade Design: 0.135 in (0.343 cm) Thick Steel
• Number of Blades: 2
• Blade Engagement: Blade Brake Clutch (BBC)
• Blade Tip Speed: 18,000 ft/min (5,486 m/min)
• Height of Cut: 1.5 – 5.0 in (3.8 – 12.7 cm), adjustable in 0.5 in (1.3 cm) increments

Mowing Options

• Mulch: Standard
• Bag: Standard (2.5 bushels capacity)
• Side Discharge: Standard

Drive System

• Type: Heavy Duty Variable Speed Rear Wheel Drive
• Forward Speed: Up to 4.0 mph (6.4 kph)

Tires

• Front: 9 in x 2 in (22.8 cm x 5.0 cm)
• Rear: 10.5 in x 3 in (26.6 cm x 7.6 cm)
• Material: Rubber Tires with Co-Polymer Wheels

Build & Dimensions

• Spindle Housing: Die Cast with 17 mm Cold Formed Spindle Shafts
• CARB Compliant: Yes
• Weight: 187 lbs (84.2 kg)
• Box Dimensions: 41.75 in x 33 in x 26 in (106.0 cm x 83.8 cm x 66.0 cm)

Is the Toro TurfMaster designed for commercial use?
Yes. The TurfMaster is built for professional mowing crews, property maintenance teams, and other operators who need a durable mower for frequent use.

How wide is the cutting deck?
The mower has a 30-inch, or 76-centimetre, cutting deck, helping crews cover more ground with fewer passes.

What engine does the Toro TurfMaster use?
The TurfMaster is powered by a 224cc Kohler CV224 Command Pro engine.

Is the Toro TurfMaster self-propelled?
Yes. It features a heavy-duty variable-speed rear-wheel-drive system.

How fast can the mower travel?
The TurfMaster has a forward mowing speed of up to 4 mph, or approximately 6.4 km/h.

Can the Toro TurfMaster handle hills and full grass bags?
Yes. Its 224cc engine and rear-wheel-drive system are designed to provide strong performance on hilly terrain and when the grass bag is full.

What is the Blade Brake Clutch?
The Blade Brake Clutch allows the operator to stop the cutting blades without shutting off the engine.

Why is the Blade Brake Clutch useful?
It makes it easier to empty the grass bag, move debris, or cross non-grass areas without repeatedly restarting the mower.

Can the Toro TurfMaster mulch grass clippings?
Yes. Mulching capability is included as standard equipment.

Can the mower bag grass clippings?
Yes. The TurfMaster includes a grass bag with a capacity of approximately 2.5 bushels.

Can the Toro TurfMaster side discharge?
Yes. Side-discharge capability is included as standard equipment.

What does 3-in-1 mowing mean?
The mower can mulch, bag, or side discharge grass clippings depending on the job.

How many blades does the mower use?
The TurfMaster uses two heavy-duty steel cutting blades.

What is the cutting-height range?
The cutting height can be adjusted from 1.5 inches to 5 inches.

How precise is the cutting-height adjustment?
The cutting height can be changed in 0.5-inch increments.

What is the mower deck made from?
The mower has a 13-gauge steel deck supported by a cast-aluminum frame.

How much fuel does the Toro TurfMaster hold?
The fuel tank holds 1 gallon, or approximately 3.8 litres.

What type of fuel should be used?
Toro recommends fresh, non-ethanol gasoline with an octane rating of 87 or higher for best starting performance.

How fresh should the fuel be?
For best results, use gasoline that is less than 30 days old and add fuel stabilizer when appropriate.

Does the mower have electric start?
No. The TurfMaster uses a pull-cord starting system.

What size wheels does the mower have?
The mower has 9-inch front wheels and 10.5-inch rear wheels.

How much does the Toro TurfMaster weigh?
The mower weighs approximately 187 pounds, or 84.2 kilograms.

What are the assembled dimensions?
The mower measures approximately 41 inches high, 32 inches wide, and 66 inches long.

What makes the TurfMaster suitable for heavy use?
It is built with commercial-duty components designed to handle curbs, trailers, multiple operators, rough conditions, and frequent daily use.

What warranty comes with the Toro TurfMaster?
The TurfMaster includes a one-year warranty, subject to Toro’s warranty terms and conditions.

Where can I buy the Toro TurfMaster?
The Toro 30-inch TurfMaster is available from Arns Equipment in Calgary.
