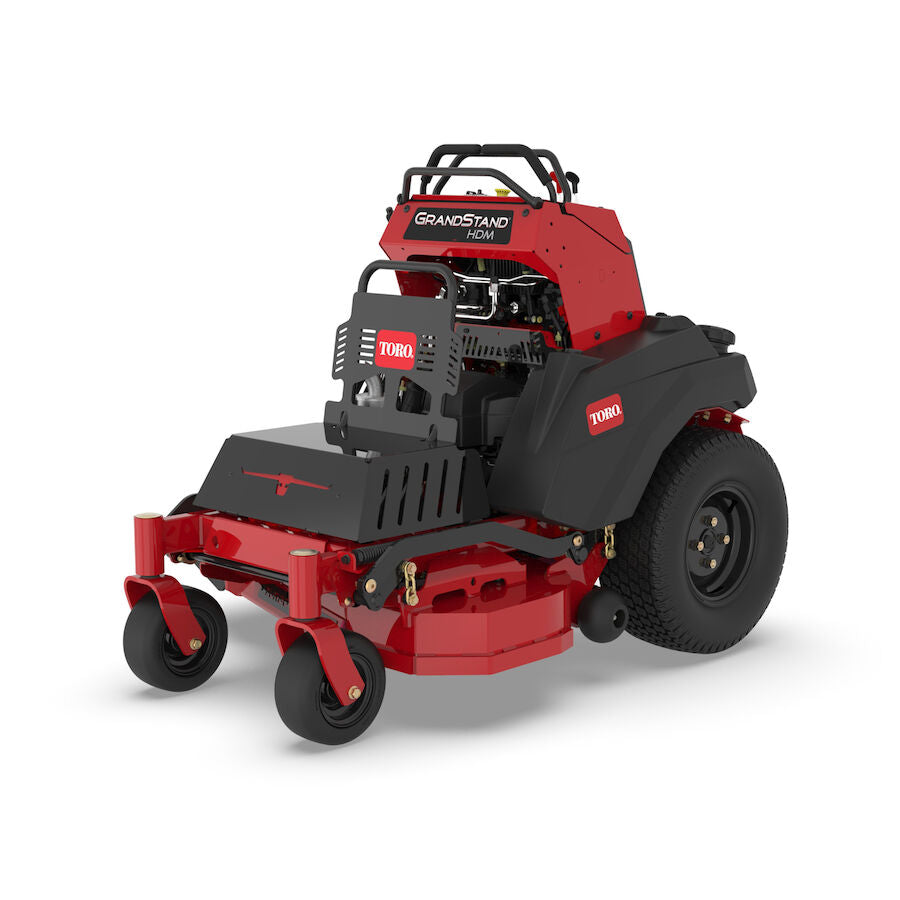

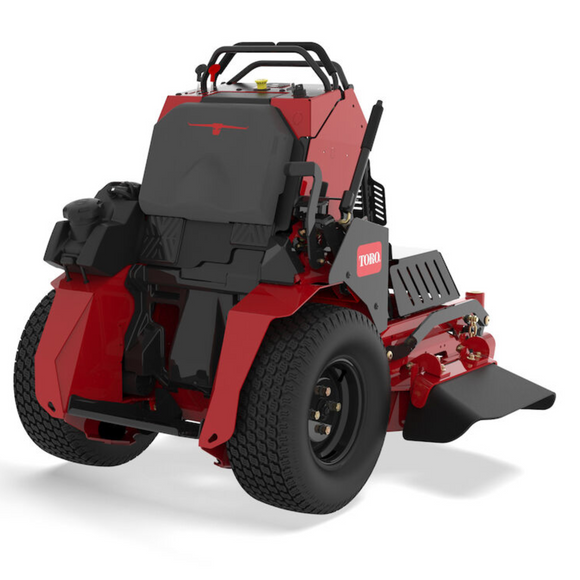

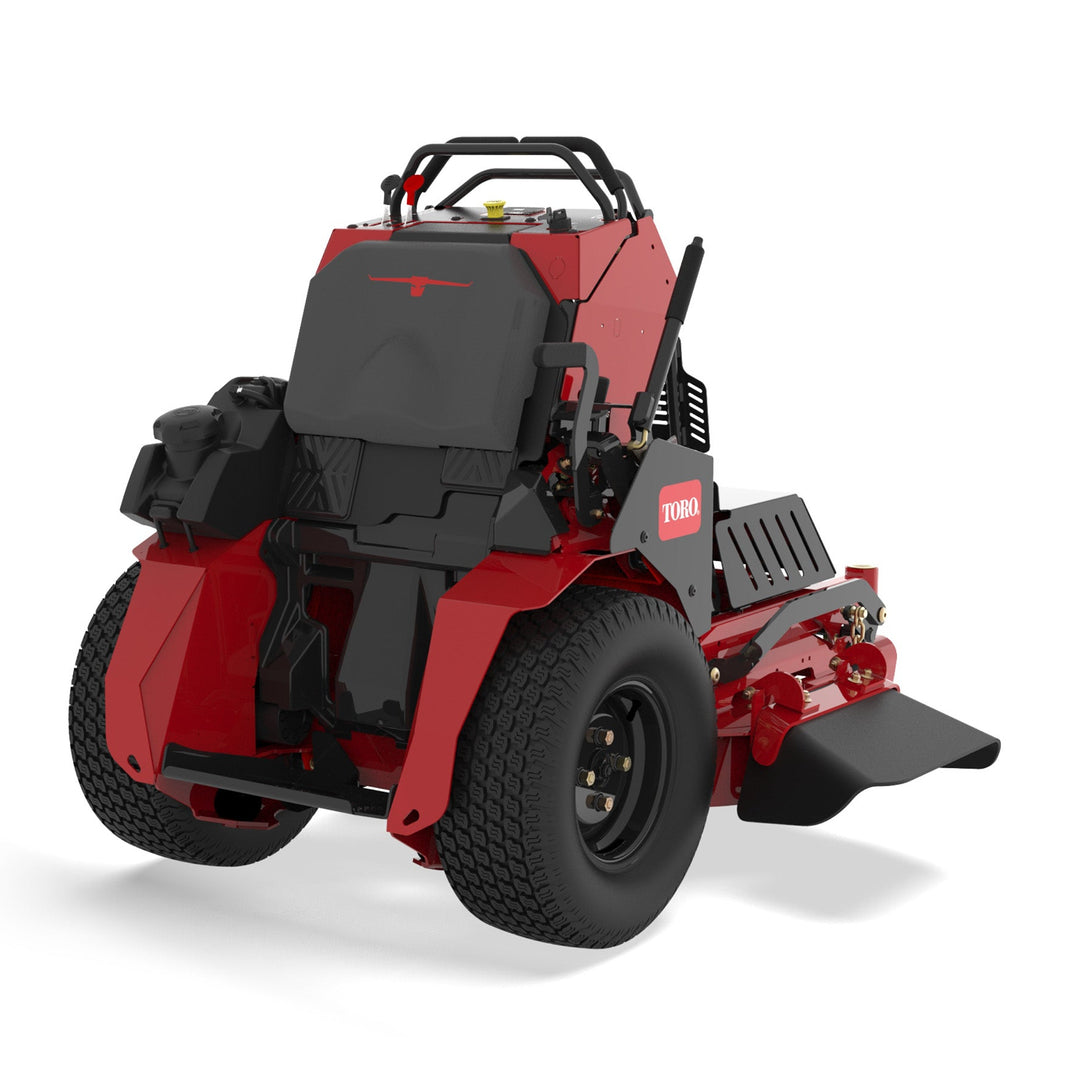

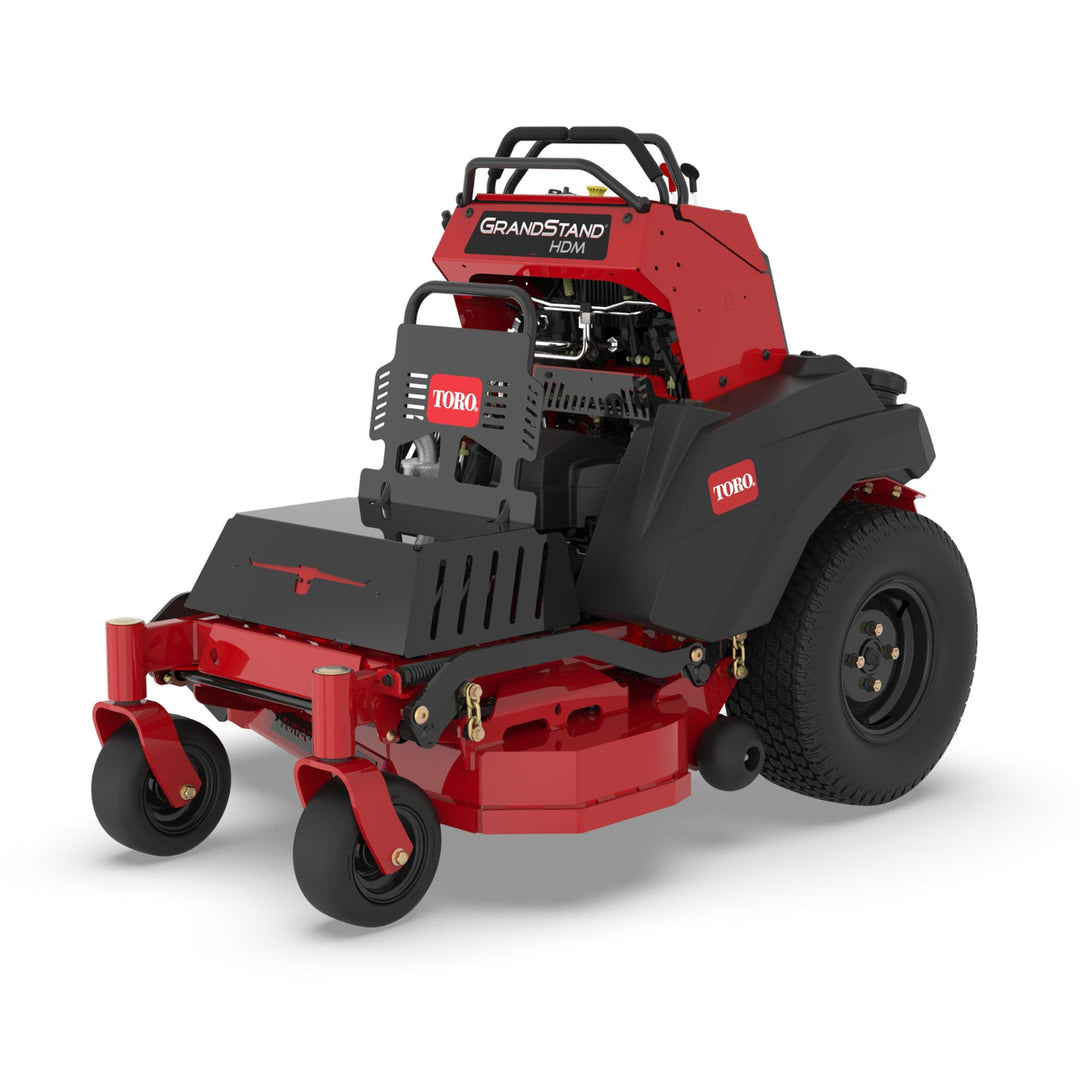

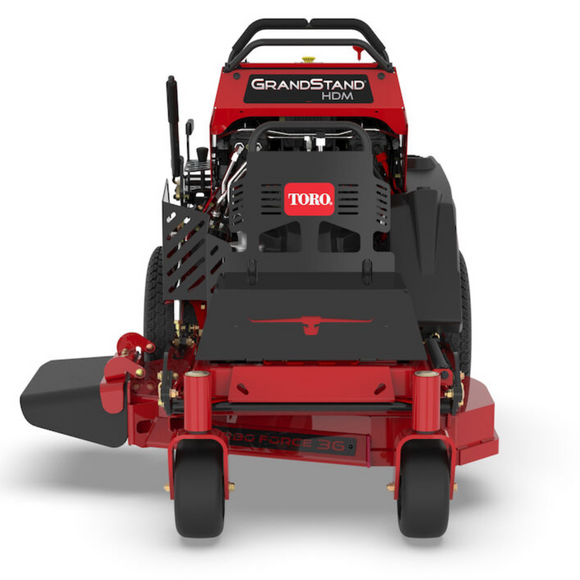

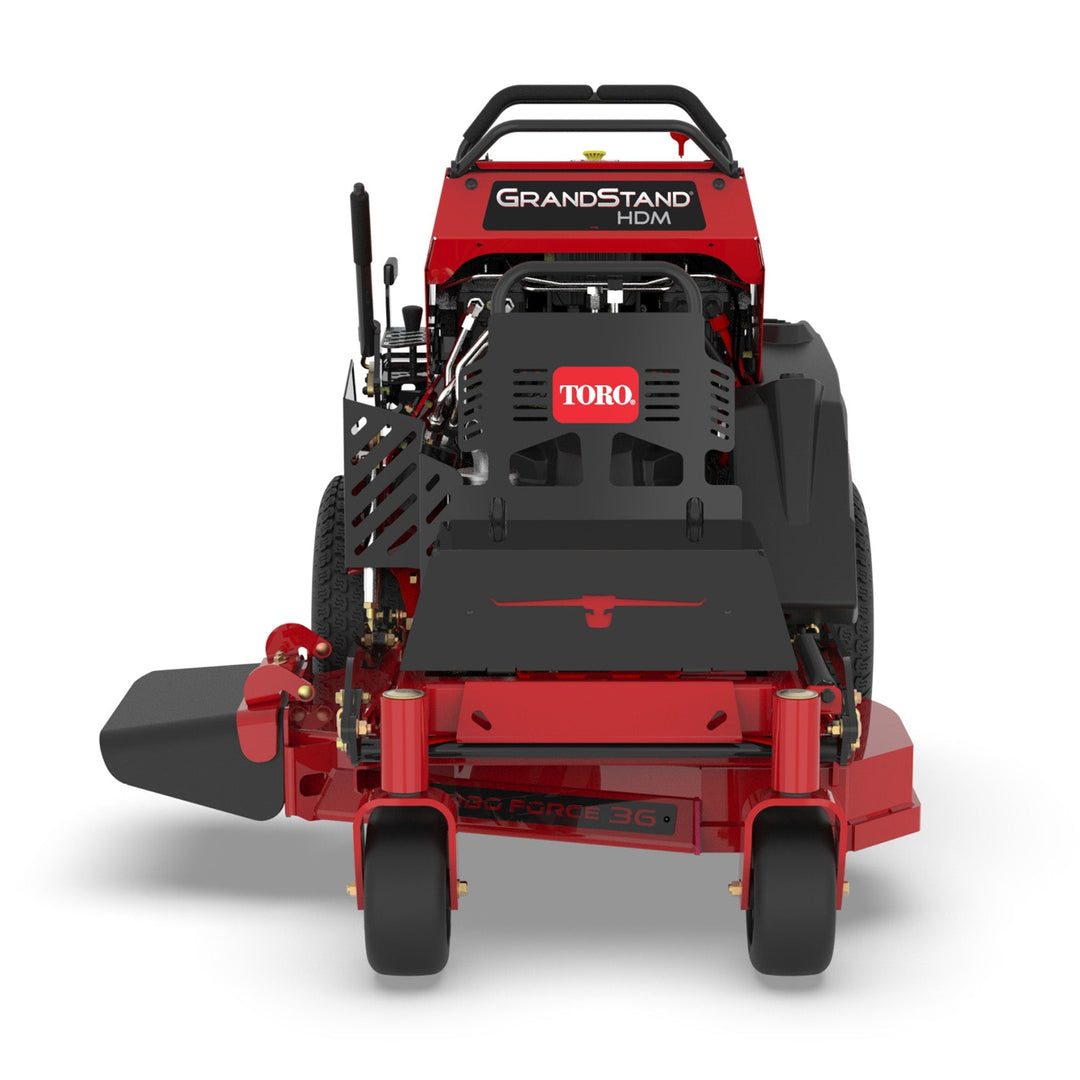

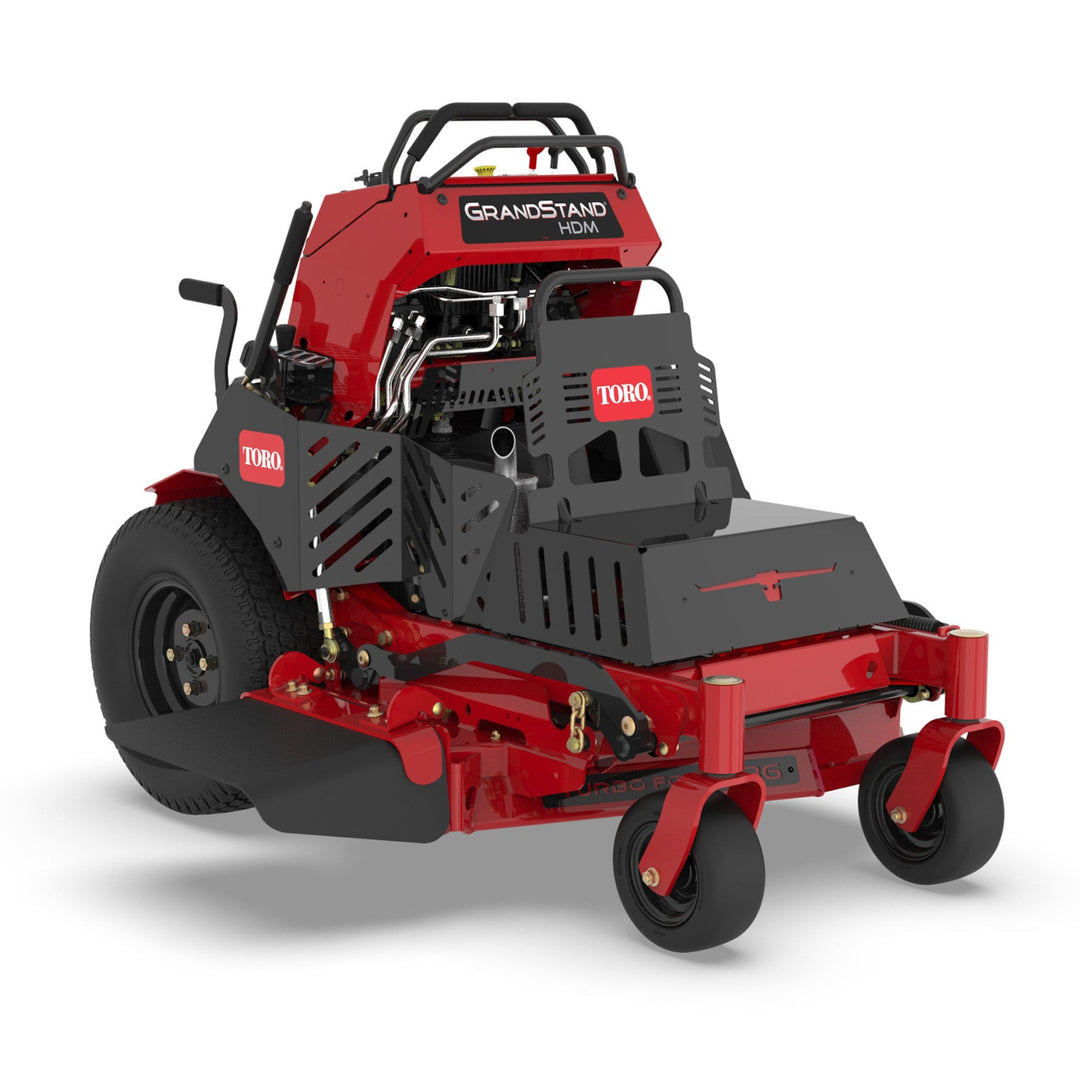

Toro® GrandStand® HDM 32" 18.5hp (603cc) (74532)

Stand up to long days and complex mowing jobs with the redesigned 36-inch GrandStand stand-on mower. Combining the speed and comfort of a zero-turn riding mower with the ease and maneuverability of a walk mower, you'll knock out more jobs, faster, without the fatigue of a small walk-behind. From mowing to maintenance, this compact machine is built for easy, fast work.

Features:

• Compact for access to more yards, exceptional maneuverability, and easy storage and trailering.
• Mow more in less time without the fatigue that comes with operating a small walk-behind mower.
• Get the job done 3x faster than a 21-inch walk behind mower.**
• **Disclaimer: Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.
• Redesigned hood flips up for easy maintenance and cleaning.
• Trim close without damaging landscape structures or your chute.
• Lift and lock the rear cover into place to easily check and fill both engine oil and hydro fluid.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Stand-On Mower
• Product Use: Commercial
• Engine Brand: Kawasaki
• Engine Model: FS600V
• Engine Horsepower: 18.5 hp*
• Engine Displacement: 603 cc
• Fuel Type: Gasoline
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Start Type: Electric
• CARB Compliant: No

Performance

• Forward Mowing/Transport Speed: Up to 7.5 mph / 12.0 kph
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Blade Design: 0.204 in. / 0.518 cm Thick Heat-Treated Steel
• Cooling System: Air-Cooled

Cutting Deck

• Deck Size: 36 in / 91 cm
• Deck Design: Fabricated Weldment
• Deck Material: 7-Gauge High-Strength Steel
• Discharge Type: Side (Rubber Discharge Chute)

Drive System

• Drive Type: Rear-Wheel Drive
• Drive Tires: 21 in. x 8.5 in. - 10 in. (53.3 cm x 21.6 cm x 25.4 cm) Turf Tires
• Drive System: Rear Wheel Drive
• Clutch: Electromagnetic
• Brake System: Lever Actuated Bar Brake (Parking Brake)

Chassis and Tires

• Carrier Frame: Welded Heavy-Duty 1.5 in. x 3 in. Tube Steel
• Caster Tires: 9 in. x 4.5 in. - 5 in. (22.8 cm x 11.4 cm - 12.5 cm) Smooth Semi-Pneumatic
• Front Bumper: Bull-Nose

Comfort & Controls

• Steering Controls: Twin Lever
• Greasable Bearings: Yes

Air Filtration

• Air Filter: Dual Element with Reinforced Primary Filter

Dimensions & Weight

• Box Dimensions: 45.5 in. x 70 in. x 52 in. / 115.6 cm x 177.8 cm x 132.1 cm
• Weight: 780 lbs / 354 kg
