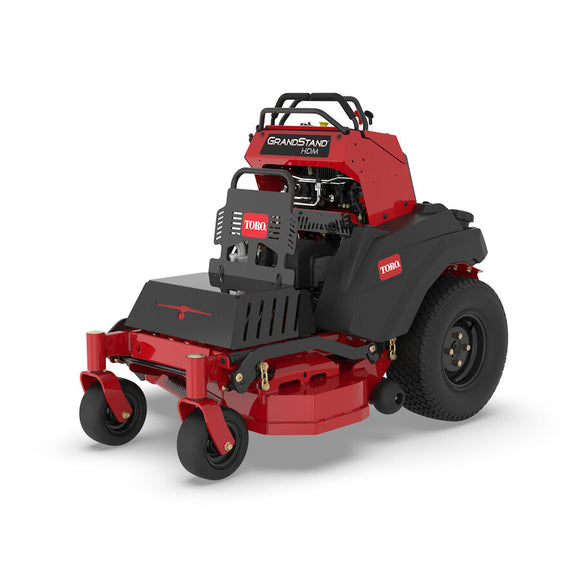

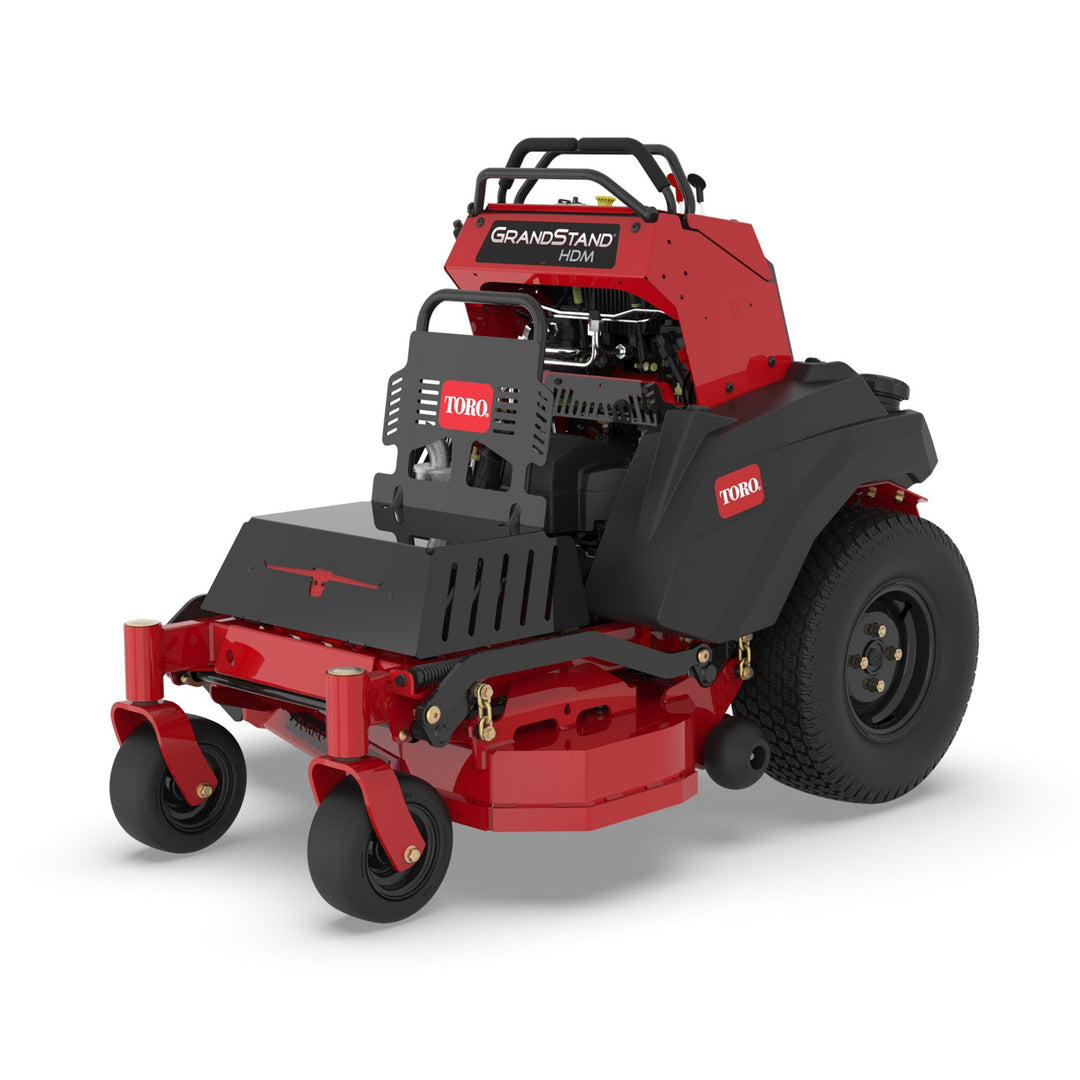

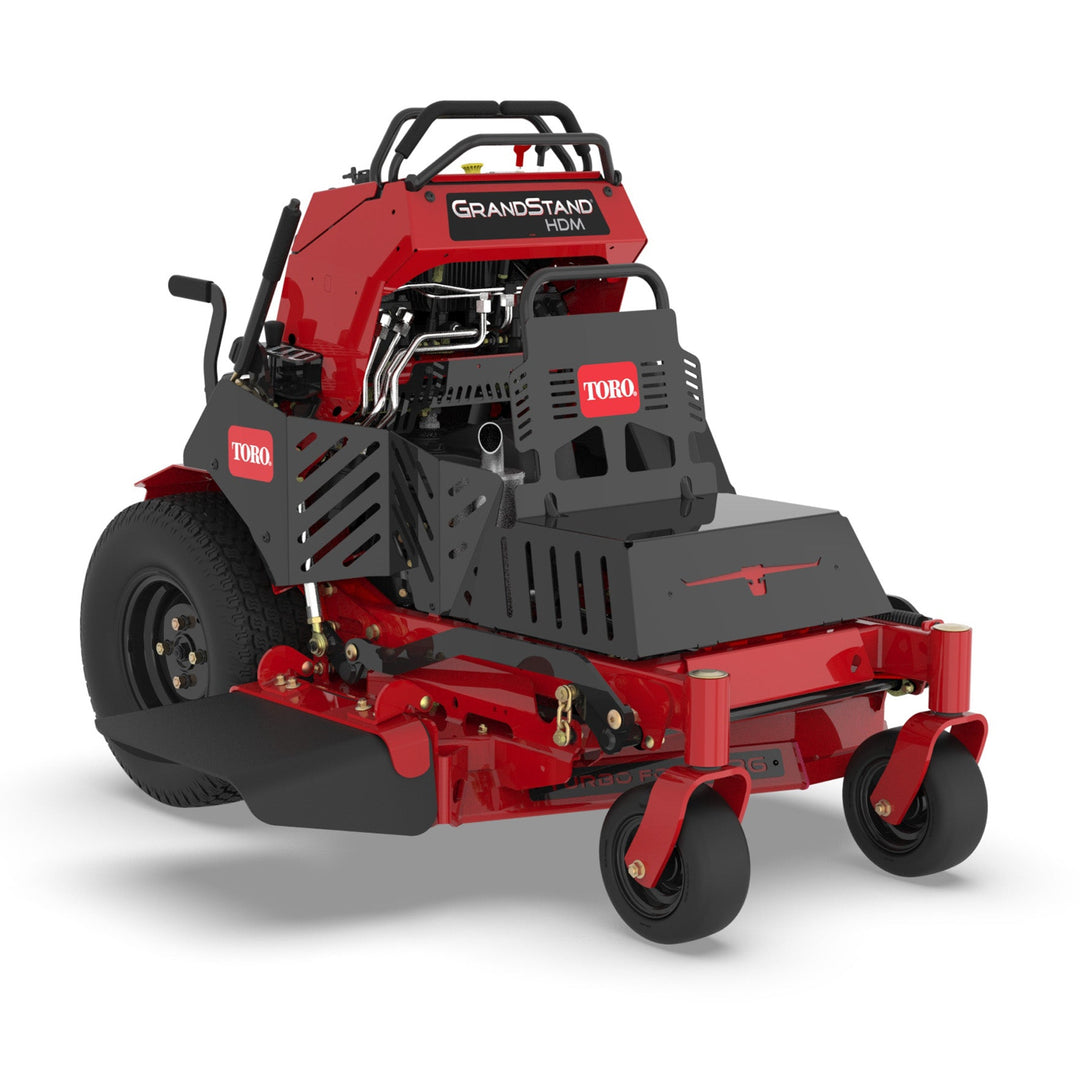

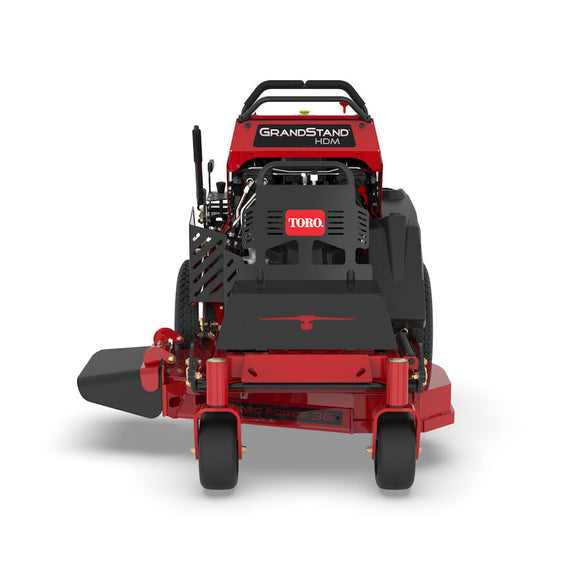

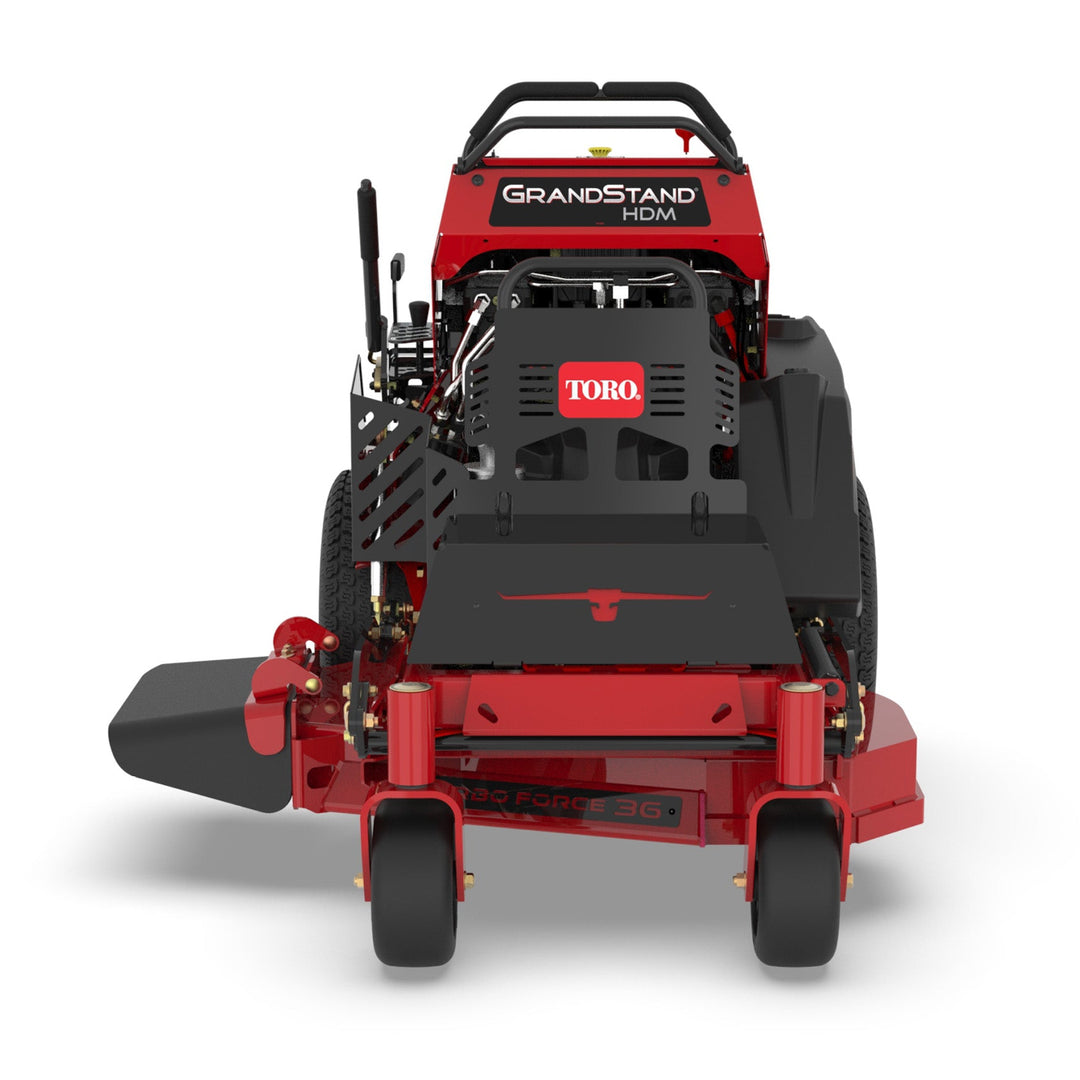

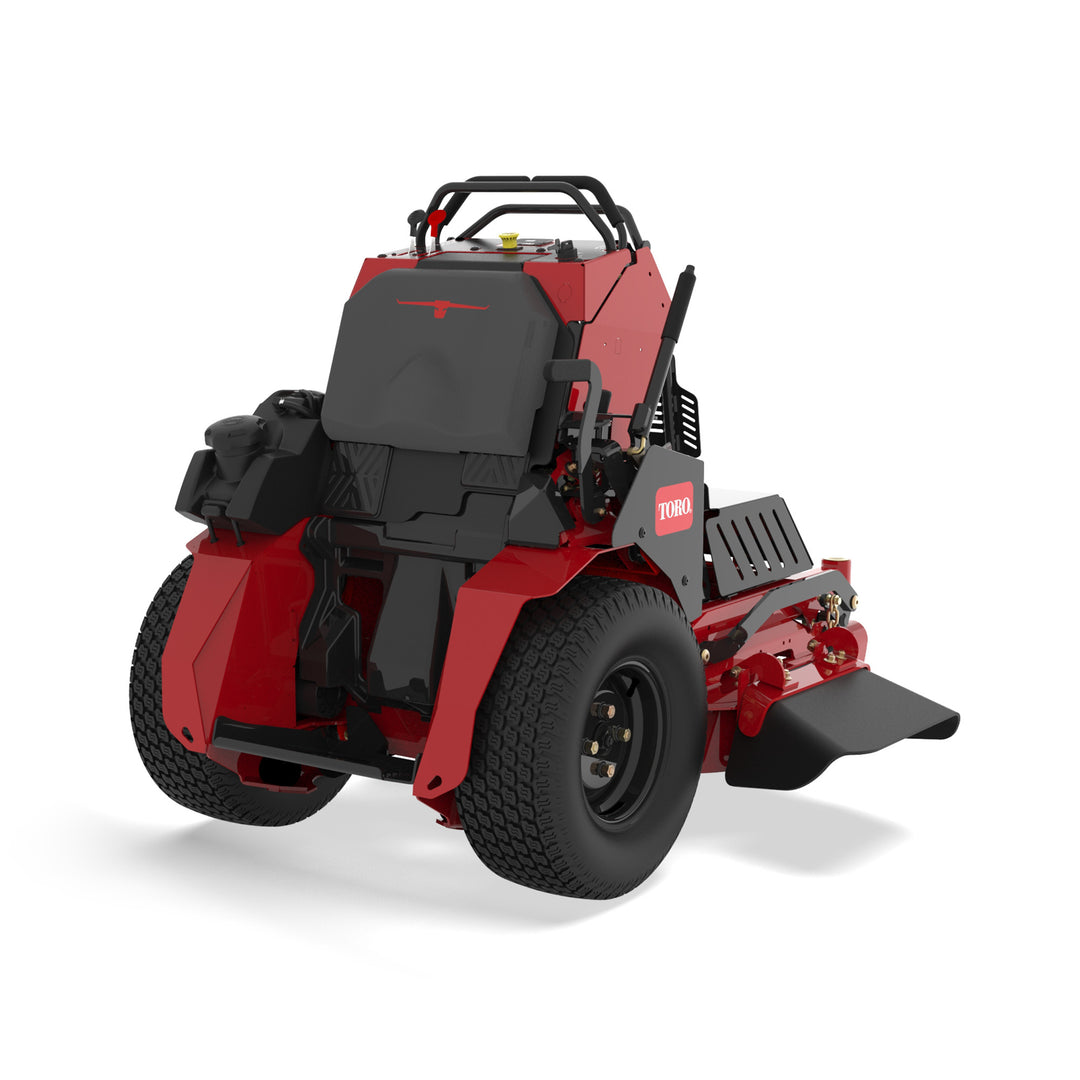

Toro® GrandStand® HDM 36" (91.4 cm) 18.5hp (603cc) (74535)

$17,332.00

Toro SKU: Toro GrandStand® HDM 36 in (91.4 cm) 18.5hp (603cc) (74535)-74535

Call to Order: 403-243-7063

FINANCING OPTIONS +
FINANCING OPTIONS
60 months
48 months
36 months
24 months
12 months

Estimated monthly payment:

Get Approved
Toro Fleet Program

Want to save 24% on this unit? This is one of the amazing units eligible for Toro Fleet Program and would bring your price to if you were to buy into Toro Fleet. Want to know more? Check out info on Toro Fleet here.

X

Stand up to long days and complex mowing jobs with the redesigned 36" GrandStand® stand-on mower. Combining the speed and comfort of a zero-turn rider with the agility and maneuverability of a walk-behind, this compact powerhouse helps you knock out more jobs—faster—without the fatigue of a traditional small walk-behind. From mowing to maintenance, every inch of this machine is engineered for easy, efficient, and productive work.

Available at ARNS Equipment in Calgary & Online Across Canada.

Features:

  • Compact for access to more yards, exceptional maneuverability, and easy storage and trailering.
  • Mow more in less time without the fatigue that comes with operating a small walk-behind mower.
  • Get the job done 3x faster than a 21-inch walk behind mower.**
  • **Disclaimer: Ground coverage via wider cutting path and enhanced speed of 32" GrandStand Compact vs 21" Heavy Duty mower and will vary due to mowing conditions.
  • Redesigned hood flips up for easy maintenance and cleaning.
  • Trim close without damaging landscape structures or your chute.
  • Lift and lock the rear cover into place to easily check and fill both engine oil and hydro fluid.
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
  • Air Filter: Dual Element with Reinforced Primary Filter
  • Blade Design: 0.204 in. / 0.518 cm Thick Heat-treated Steel
  • Blade Tip Speed: 18,500 ft/min / 5,638 m/min
  • Box Dimensions: 45.5 in. x 70 in. x 52 in. / 115.6 cm x 117.8 cm x 132.1 cm
  • Brake System: Lever Actuated Bar Brake (Park Brake)
  • CARB Compliant: Not CARB Compliant
  • Carrier Frame: Welded Heavy-Duty 1.5 in. x 3 in. Tube Steel
  • Caster Tires: 9 in. x 4.5 in. - 5 in. (22.8 cm x 11.4 cm - 12.5 cm) Smooth Semi-Pneumatic
  • Clutch: Electromagnetic
  • Cooling System: Air Cooled
  • Deck Design: Fabricated Weldment
  • Deck Material: 7 Gauge High-Strength Steel
  • Deck Size: 36 in / 91 cm
  • Discharge Chute: Rubber
  • Drive System: Rear Wheel Drive
  • Drive Tires: 21 in. x 8.5 in. - 10 in. (53.3 cm x 21.6 cm - 25.4 cm) Turf Tires
  • Drive Type: Rear-Wheel Drive
  • Engine: 18.5 hp Kawasaki FS600V 603 cc
  • Engine Brand: Kawasaki
  • Engine Displacement (cc): 603 cc
  • Engine Horsepower: 18.5 hp
  • Forward Ground/Transport Speed: Up to 7.5 mph / 12.0 kph
  • Forward Mowing Speed: Up to 7.5 mph / 12.0 kph
  • Front Bumper: Bull-Nose
  • Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
  • Fuel Type: Gasoline
  • Greasable Bearings: Yes
  • Product Type: Stand-On Mowers
  • Product Use: Commercial
  • Start Type: Electric
  • Steering Controls: Twin Lever
  • Weight: 780 lbs / 354 kg


table {
width: 100%;
border-collapse: collapse;
text-align: center;
border: 1px solid black
}

td, th {
border: 1px solid #dddddd;
padding: 8px;
}




Add custom text to your tabs

What is the Toro GrandStand Compact 36-inch stand-on mower?
The Toro GrandStand Compact 36-inch is a commercial stand-on mower that combines the speed of a zero-turn rider with the maneuverability and compact access of a walk-behind mower.

Who is the Toro GrandStand Compact 36 designed for?
It is designed for professional landscapers, commercial mowing crews and property-maintenance operators working on gated yards, narrow properties and complex landscapes.

Is the Toro GrandStand Compact 36 a commercial mower?
Yes. It is built for commercial use with a Kawasaki engine, heavy-duty tubular steel frame and a fabricated 7-gauge cutting deck.

What makes the GrandStand Compact different from a full-size GrandStand?
The Compact model has a smaller footprint designed for narrow access, easy trailering and efficient storage while still allowing the operator to ride instead of walking.

What engine does the Toro GrandStand Compact 36 use?
It is powered by an 18.5 HP Kawasaki FS600V engine.

What is the engine displacement?
The Kawasaki FS600V has 603cc of displacement.

What are the benefits of the Kawasaki FS600V engine?
The FS600V provides dependable commercial power, responsive performance and proven durability for daily professional mowing.

Is the engine air cooled?
Yes. The Kawasaki FS600V uses an air-cooled system.

Does the Toro GrandStand Compact 36 have electric start?
Yes. It uses an electric starting system.

What type of fuel does the GrandStand Compact use?
It uses gasoline.

How much fuel does the Toro GrandStand Compact 36 hold?
The fuel tank holds approximately 5 US gallons, or 18.9 litres.

Is the Toro GrandStand Compact 36 CARB compliant?
No. The supplied specifications list this model as not CARB compliant.

How wide is the cutting deck?
The Toro GrandStand Compact has a 36-inch, or 91-centimetre, cutting deck.

What are the benefits of a 36-inch commercial mower?
A 36-inch deck can access narrower gates and pathways while covering more ground than a traditional 21-inch walk-behind mower.

Is the GrandStand Compact 36 suitable for gated properties?
Yes. Its narrow deck and compact stand-on design make it well suited to fenced yards and properties with restricted access.

Will the Toro GrandStand Compact 36 fit through a standard gate?
It may fit through many larger residential and commercial gates, but the complete operating width should be measured before purchase.

What should I measure before buying the GrandStand Compact 36?
Measure gates, pathways, trailer openings, garage or storage doors and the narrowest areas where the mower will operate.

Is the GrandStand Compact good for properties with many obstacles?
Yes. Its compact deck and highly maneuverable drive system make it effective around trees, beds, walkways, fences and buildings.

What type of cutting deck does the mower use?
It uses a fabricated welded cutting deck built from 7-gauge high-strength steel.

What are the benefits of a fabricated mower deck?
A fabricated deck is welded from heavy steel to provide strength, rigidity and resistance to demanding commercial wear.

What are the benefits of 7-gauge deck steel?
The heavy steel helps protect the deck against impacts, flexing and long-term damage.

What is the bullnose front bumper?
The bullnose bumper reinforces the front edge of the mower and helps protect the deck from impacts.

What type of discharge does the mower use?
The GrandStand Compact 36 uses side discharge with a flexible rubber chute.

Why does the mower use a rubber discharge chute?
The flexible chute can move when it contacts an obstacle, helping reduce damage to the chute and nearby structures.

Can the GrandStand Compact trim closely around landscaping?
Yes. Its compact deck and flexible chute help the operator mow closely along fences, beds and structures.

Can the Toro GrandStand Compact 36 handle tall grass?
Yes. Its Kawasaki engine and commercial deck are designed for professional mowing, although tall or dense grass may require a slower speed.

Can the GrandStand Compact mow wet grass?
It can operate in damp conditions, but wet grass may clump, reduce traction and affect cut quality.

What is the blade-tip speed?
The listed blade-tip speed is approximately 18,500 feet per minute, or 5,638 metres per minute.

Why is blade-tip speed important?
High blade-tip speed helps create a clean cut and move clippings efficiently through the deck.

How thick are the mower blades?
The blades are approximately 0.204 inches, or 0.518 centimetres, thick.

What are the blades made from?
They are made from heat-treated steel for commercial durability and resistance to wear.

How fast does the Toro GrandStand Compact 36 travel?
It can travel at speeds of up to approximately 7.5 mph, or 12 km/h.

What is the maximum mowing speed?
The maximum listed mowing speed is approximately 7.5 mph.

How does its speed improve productivity?
The higher ground speed helps operators cover properties faster than they could with a traditional small walk-behind mower.

Can the mower cut effectively at maximum speed?
Maximum speed may not be suitable for every condition. Tall, dense, wet or uneven grass may require slower operation.

Is the GrandStand Compact faster than a 21-inch walk-behind mower?
Toro states that the GrandStand Compact can complete work up to three times faster based on its wider cutting path and higher speed.

Does every property take one-third as long to mow?
No. Actual productivity depends on terrain, obstacles, grass conditions, property shape and operator experience.

Why does the productivity disclaimer mention a 32-inch GrandStand?
The supplied disclaimer references a 32-inch GrandStand Compact even though this mower has a 36-inch deck. That wording should be confirmed or corrected before publication.

How does the GrandStand Compact reduce operator fatigue?
It allows the operator to ride instead of walking behind the mower throughout the workday.

What are the benefits of a stand-on mower?
Stand-on mowers provide excellent visibility, quick entry and exit, compact transport dimensions and reduced walking during long mowing sessions.

Does the Toro GrandStand Compact provide good visibility?
Yes. The standing operating position gives the operator a clear view of the deck, obstacles and surrounding property.

Why is visibility important for professional mowing?
Better visibility helps operators trim accurately and avoid fences, landscaping, buildings and other obstacles.

What type of drive system does the mower use?
It uses a rear-wheel-drive system.

Is the Toro GrandStand Compact a zero-turn mower?
It uses independently controlled rear-wheel drive and twin steering levers to provide tight, zero-turn-style maneuverability.

How is the mower controlled?
It uses twin steering levers to control speed, direction and turning.

What size drive tires does the mower use?
The rear turf tires measure approximately 21 inches by 8.5 inches on 10-inch rims.

What are the benefits of turf tires?
They provide traction while helping limit unnecessary damage to finished lawns when the mower is operated properly.

What size front caster tires does it use?
The front caster tires measure approximately 9 inches by 4.5 inches on 5-inch rims.

Are the front caster tires flat free?
They are smooth semi-pneumatic tires designed to resist punctures and require less maintenance than standard pneumatic tires.

What are the benefits of semi-pneumatic caster tires?
They reduce downtime caused by flats while still providing some cushioning over uneven ground.

What type of frame does the GrandStand Compact use?
It uses a welded heavy-duty frame made from 1.5-inch by 3-inch tubular steel.

What are the benefits of the tubular steel frame?
The frame provides strength, rigidity and durability for commercial mowing conditions.

What type of clutch does the mower use?
It uses an electromagnetic clutch.

What does the electromagnetic clutch do?
It electrically engages and disengages the cutting blades through the mower’s PTO system.

What type of parking brake does the mower use?
It uses a lever-actuated bar brake.

Does the mower have greasable bearings?
Yes. The supplied specifications list greasable bearings.

What type of air filter does the engine use?
It uses a dual-element air filter with a reinforced primary filter.

What are the benefits of a dual-element air filter?
It provides additional protection against dust and debris in demanding commercial mowing conditions.

Is the hood easy to open for maintenance?
Yes. The redesigned hood flips upward for easier cleaning, inspection and service access.

What can be accessed under the hood?
The hood provides improved access to the engine and other internal components for routine service.

How can the operator check the engine and hydraulic fluids?
The rear cover can be lifted and locked open to provide access for checking and filling engine oil and hydro fluid.

Why is the locking rear cover useful?
It keeps the cover securely open while the operator performs fluid checks or maintenance.

Is the Toro GrandStand Compact easy to maintain?
Yes. The flip-up hood, locking rear cover and accessible fluid-fill points are designed to simplify routine service.

Is the GrandStand Compact suitable for uneven terrain?
Yes. Its heavy-duty frame, large rear tires and stand-on operating position make it suitable for moderately uneven properties.

Can the Toro GrandStand Compact mow on slopes?
It may be used on appropriate slopes within Toro’s operating limits. Wet turf, loose soil and abrupt steering can reduce traction.

What conditions can affect slope safety?
Slope angle, ground moisture, hidden holes, tire condition, speed and operator technique can all affect control.

Is the Toro GrandStand Compact suitable for commercial mowing routes?
Yes. Its compact width, 7.5 mph speed and easy transport make it well suited to routes with smaller or gated properties.

Is the GrandStand Compact suitable for residential properties?
Yes. It is especially useful for professional crews maintaining residential yards with narrow access or detailed landscaping.

Is the GrandStand Compact suitable for municipalities?
Yes. It can be useful for boulevards, parks, pathways and other public spaces where a larger mower may not fit.

Is the Toro GrandStand Compact suitable for acreage owners?
It can be a good option for acreage owners with fenced sections, narrow access points or detailed landscaping.

Is the GrandStand Compact suitable for large open properties?
It can mow open areas, but a wider commercial mower may provide greater productivity where access is not a concern.

How does the GrandStand Compact compare with a walk-behind mower?
It offers a wider cutting path, higher travel speed and lets the operator ride, helping reduce fatigue and increase productivity.

How does the GrandStand Compact compare with a sit-down zero-turn mower?
It is more compact, easier to transport and provides better visibility and quicker entry and exit.

Why choose a 36-inch GrandStand instead of a wider stand-on mower?
The 36-inch model provides better gate access, easier storage and greater maneuverability on compact or complex properties.

Is the Toro GrandStand Compact easy to store?
Yes. Its compact footprint helps reduce the amount of room needed in a trailer, garage or equipment-storage area.

Is the mower compact enough for smaller trailers?
Yes. Its narrow design makes it easier to transport alongside other commercial equipment.

How much does the Toro GrandStand Compact 36 weigh?
The mower weighs approximately 780 pounds, or 354 kilograms.

What are the boxed dimensions?
The listed box dimensions are approximately 45.5 inches by 70 inches by 52 inches.

Can the Toro GrandStand Compact be transported on a utility trailer?
Yes. Use a trailer with enough width, payload capacity, ramp strength and secure tie-down points.

What is Toro Horizon360?
Horizon360 is Toro’s business-management software for landscaping and service companies.

What can Horizon360 help manage?
It can support scheduling, estimating, invoicing, customer management and other business operations.

Is Horizon360 required to operate the mower?
No. Horizon360 is optional and is not required to use the Toro GrandStand Compact.

What maintenance does the Toro GrandStand Compact require?
Routine maintenance includes checking engine and hydro fluid, servicing the air filter, inspecting belts, greasing specified bearings, sharpening blades and cleaning the deck.

How often should the mower blades be sharpened?
Inspect the blades regularly and sharpen them when cut quality declines, grass tips appear torn or visible damage is present.

Should the cutting deck be cleaned after mowing?
Yes. Removing grass buildup helps maintain airflow, clipping discharge and cutting quality.

Is professional service recommended for the Toro GrandStand Compact?
Yes. Regular professional maintenance can help preserve engine performance, drive reliability, cut quality and commercial productivity.

What are the main benefits of the Toro GrandStand Compact 36?
Its main benefits include an 18.5 HP Kawasaki engine, compact 36-inch commercial deck, 7.5 mph speed, excellent gate access and service-friendly body panels.

Where can I buy the Toro GrandStand Compact 36-inch stand-on mower in Canada?
The Toro GrandStand Compact 36-inch stand-on mower is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.

OEM Parts Lookup

Looking for parts for your equipment?

Find diagrams, part numbers, and replacement parts for your .

Search PartsHouse.ca
