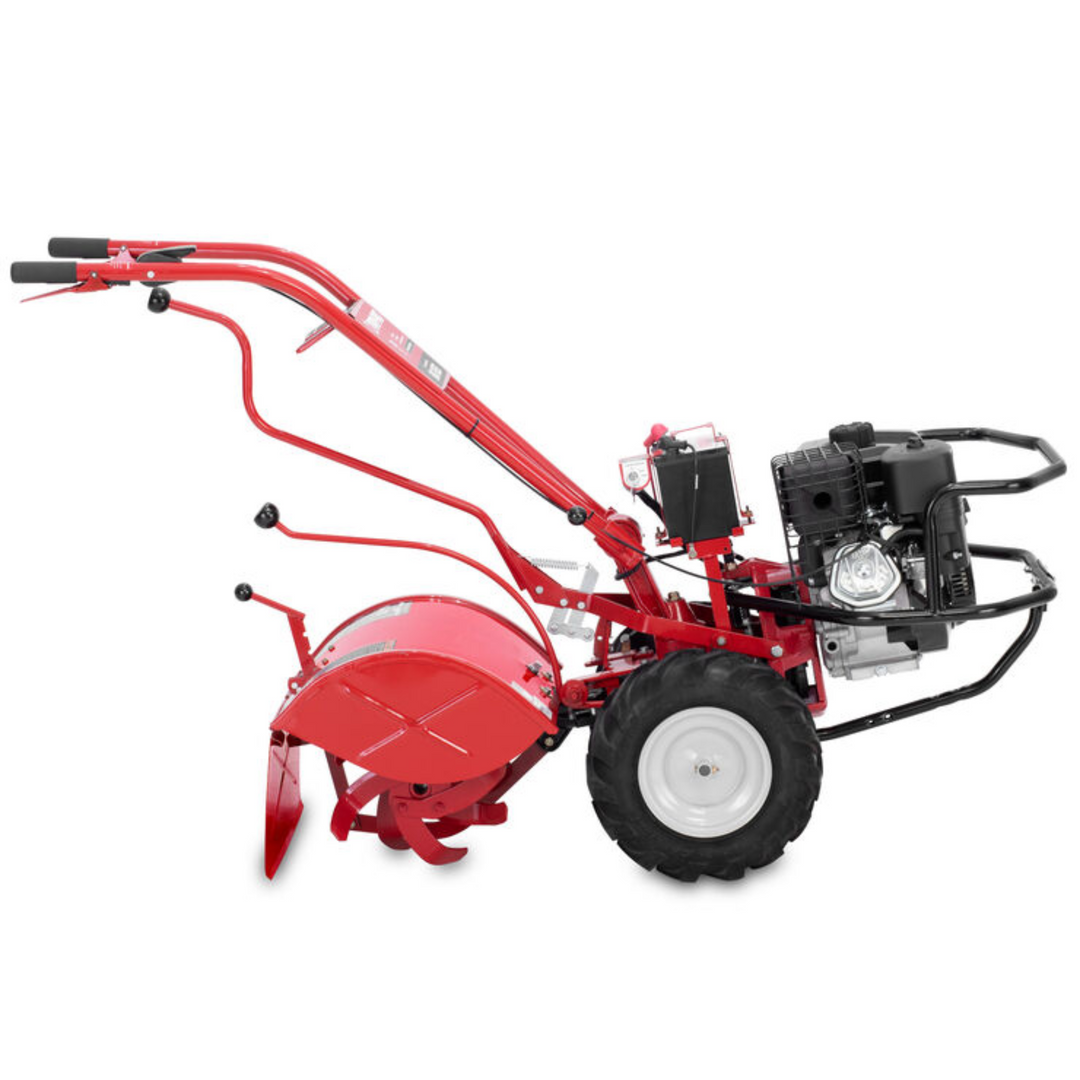

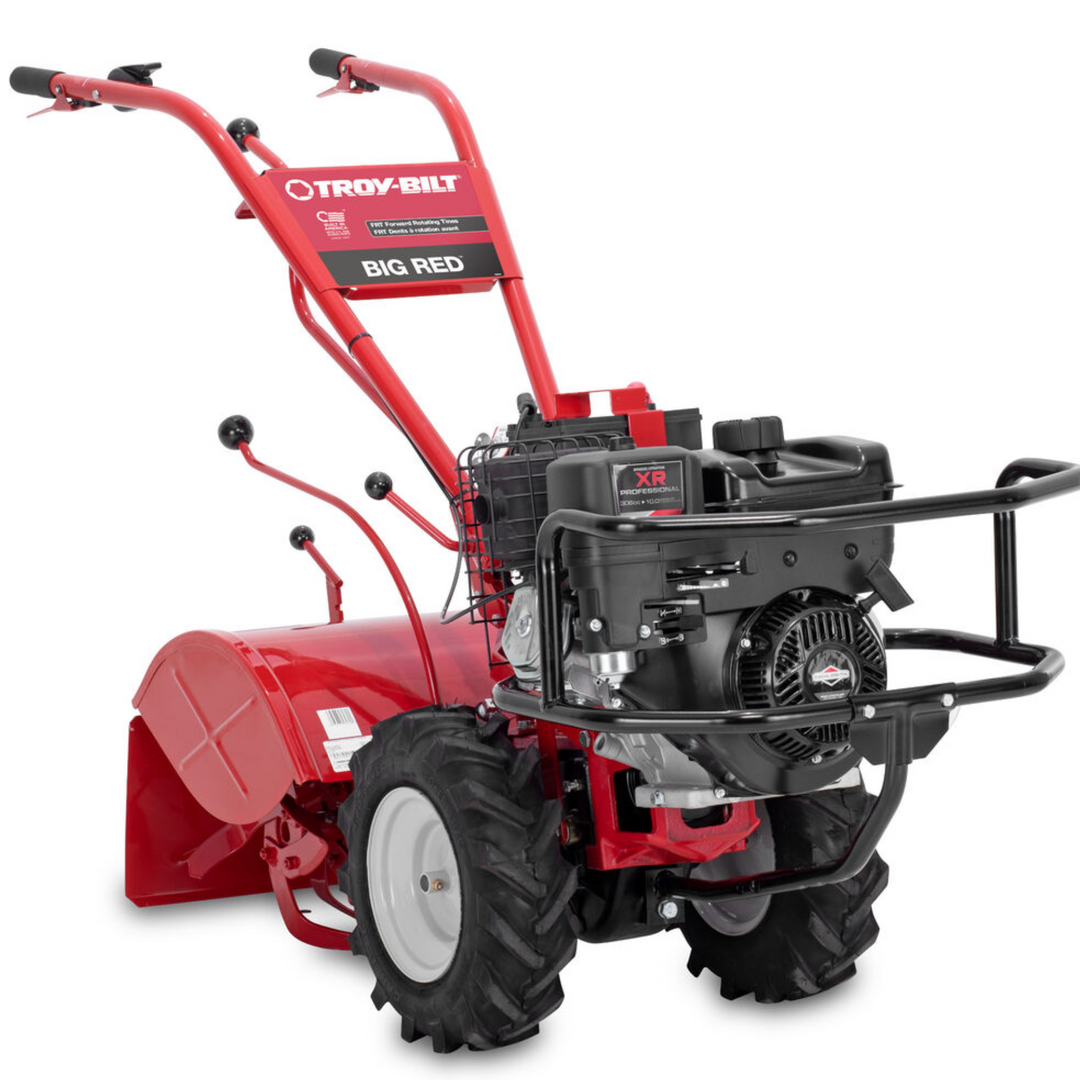

Troy-Bilt BIG RED TILLER

It's easy to start Big Red® with the electric start 306cc Briggs & Stratton® engine. Work at your own pace and maneuver through large spaces with the 20" maximum tilling width and 4 forward and 2 reverse speeds. Plow-style handle swings out to the side, allowing you to walk on the untilled soil as you operate.

• 306cc Briggs & Stratton® engine with electric start eliminates pull-starting and is protected by a front bumper.
• 20" tilling width on Big Red™ makes it ideal for large size gardens.
• Choose from 4 forward and 2 reverse speeds to handle a variety of tilling tasks and gardening jobs.
• 12" bolo-shaped steel tines slice, chop and turn soil up to 7" deep with depth stake assistance

 Specifications:

Engine

• Brand: Briggs & Stratton®
• Model: XR1450 Professional
• Model Number: 19N137-0238
• Displacement: 306cc
• Output: 14.5HP
• Starter Type: Electric and Recoil
• Engine Oil Capacity: 26 oz

Drive System

• Drive System: Bronze Gear
• Transmission Housing: Cast Iron

Chassis

• Bumper: Yes

Controls

• Handle: Adjustable Plow with Swing Out
• Handle Grip(s): Standard

Specifications

• Rear Shield: Yes
• Side Shield: Non-Adjustable
• Tilling Depth: 7"
• Tilling Diameter: 12"
• Tilling Width: 20"
• Tine Rotation Direction: Forward-rotating
• Tines: Bolo
• Wheels: 16" x 4" Pneumatic

Additional Specifications

• Model Number: 21AE682WB66
• Residential Warranty: 2-year limited
• Commercial Warranty: No
• Transmission Warranty: Lifetime limited

Tiller Tine Specifications

• Tine Rotation Direction: Forward-rotating
• Tine Location: Rear
• Tilling Diameter: 12"
