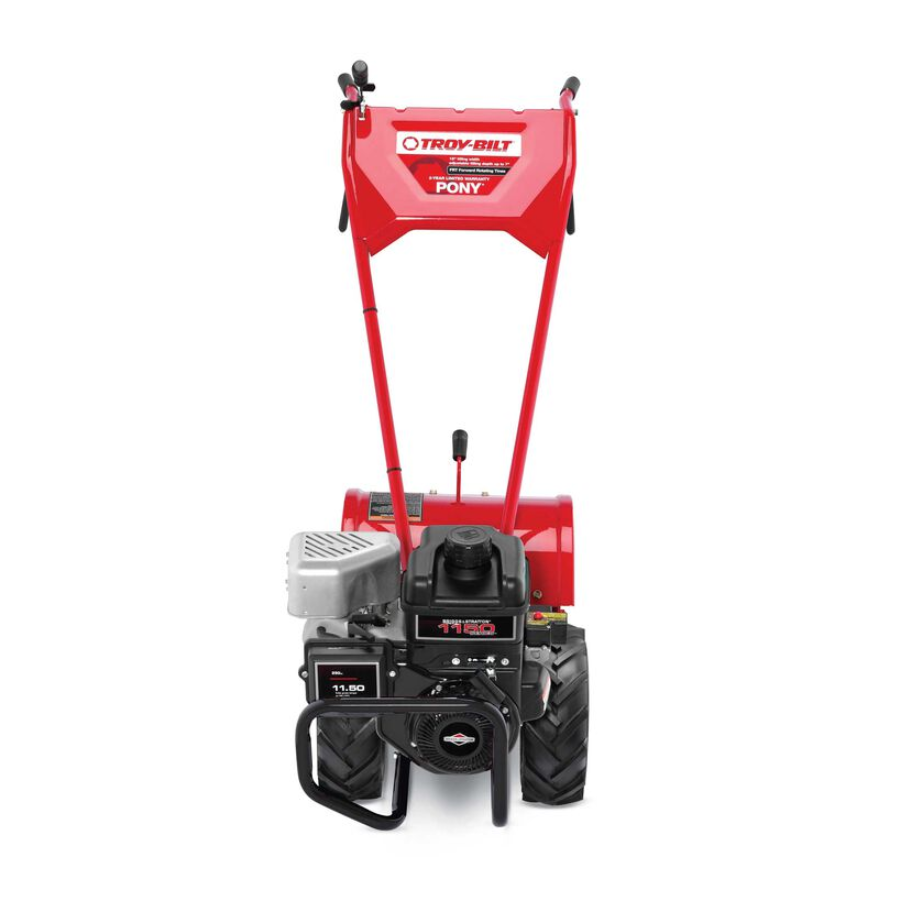

Troy-Bilt Tiller 21A-492R563

DESCRIPTION:

Easily power through soil preparation chores season after season with the Troy-Bilt Pony rear-tine garden tiller. A reliable 250cc Briggs & Stratton engine delivers the power you need to break up hard-packed soil quickly and easily. Adjustable depth stake allows for up to 7-inches of tilling depth. And 12-in forward-rotating Bolo™ tines will turn soil quickly. You can count on Troy-Bilt to help make even the toughest jobs easier.

KEY FEATURES:

• Powered by a 250cc, 11.5 OHV Briggs & Stratton PowerBuilt™ engine, this unit has the strength to break up hard-packed soil quickly and easily
• Just One Hand™ operation allows the tiller to be guided with literally one hand thanks to a well-balanced and easy to control design
• Forward rotating tines move in the same direction as the wheels and are best used in areas that have previously been tilled
• 16-inch tilling width makes the Pony ideal for medium-to-large sized gardens
• Power reverse and the 13-inch ag tires allows for flexible handling around rocks and other obstacles
• Troy-Bilt has a limited lifetime transmission warranty on cast iron gear casting and precision cut bronze gears
• Backed by a 2-yr limited warranty for peace of mind

ENGINE

• Engine Brand: Briggs & Stratton®
• Engine Model: 1150 Series
• Engine Model Number: 15T202-0169
• Engine Displacement: 250cc
• Engine Output: 11.5HP
• Starter Type: Recoil
• Engine Oil Capacity: 20oz

DRIVE SYSTEM

• Forward/Reverse Speeds: One forward / One reverse
• Drive System: Bronze Gear
• Transmission Housing: Cast Iron

WARRANTY

• Warranty: 2-year limited
• Commercial Warranty: No
• Transmission Warranty: Lifetime limited

CHASSIS

• Bumper: Yes

CONTROLS

• Handle: Adjustable Plow
• Handle Grip(s): Standard

DIMENSIONS

• Weight (approx.): 200 lbs

ADDITIONAL SPECIFICATIONS

• Model Number: 21A-492R563

SPECIFICATIONS

• Rear Shield: Yes
• Side Shield: Non-Adjustable
• Tilling Depth: 7 in.
• Tilling Diameter: 12 in.
• Tilling Width: 16 in.
• Tine Rotation Direction: Forward-rotating
• Tines: Bolo
• Wheels: 13 in. x 5 in. Pneumatic

TILLER TINE SPECIFICATIONS

• Tine Rotation Direction: Forward-rotating
• Tine Location: Rear
• Tilling Diameter: 12 in.

DISCLAIMER

• Specifications Disclaimer: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
