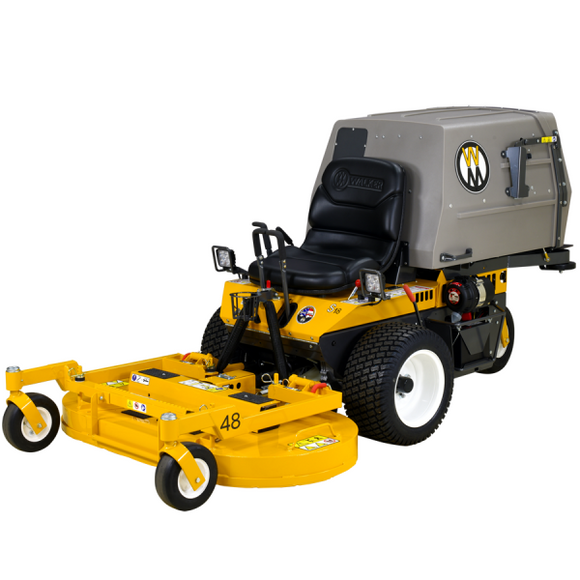

Walker® MS18GHS

$15,495.00

Walker SKU: MS18GHS-MS18-GHS

Designed with simplicity, durability, and serviceability in mind — the S18 remains the ideal entry-level, grass handling Walker Mower that is light-on-the-turf, productive, and versatile.

Call to Order: 403-243-7063

Designed with simplicity, durability, and serviceability in mind — the S18 remains the ideal entry-level, grass handling Walker Mower that is light-on-the-turf, productive, and versatile.

It features the patented Grass Handling System using a 12.5 inch, two-piece blower assembly with Thru-Shaft PTO providing powerful suction and leaving a clean, smooth cut. With thicker scroll and backplate, the two-piece blower is not only more durable, but repairs or replacement are now much easier.

Mower blades and powered attachments are now driven by an electric Ogura PTO clutch with Soft Start technology, simplifying maintenance and providing easy, worry-free operation of the PTO in any season.

Able to run 36 to 56 inch decks, the S18 is the perfect choice for residential properties, gated yards, and demanding customers.

Type: Collection
Power: 18 HP
Engine: Briggs & Stratton Vanguard
Ideal Application: Residential Properties, Small Commercial Properties
Key Attributes: Compact, Agile, Productive
Standard Options: 18 x 7.0-8 Turf Tire, Standard Seat
Decks: 5 Collection, 5 Discharge, 4 Mulching
Popular Add-ons:
Single-Stage Snowblower
48” Dozer Blade
Dethatcher

Engine
Manufacturer: Briggs & Stratton Vanguard
Model: 356447-1338
Displacement: 570 cc (34.8 cu. in.)
Max Power: 18 HP @ 3600 RPM
Max Torque: 29.2 ft-lbs
Cooling System: Air
Fuel: Regular grade unleaded gasoline (87 octane minimum, 10% ethanol maximum)
Fuel Capacity: 4 gal (15.1 liter)

Electrical
Battery: 12V, 300CCA
Charging System: Flywheel Alternator
Charging Output: 16 Amp DC (Regulated)

Transmission
Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h): 0-7.4 (0-11.9) Infinitely Variable
Neutral: Transmission Release by Manual Dump Valve

Blade Drive
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Ogura Electric Clutch with Soft Start Engagement and Mechanical Brake [Stops Blades within Five (5) Seconds of Disengagement]

Grass Handling
Blower: 12.75 in. Diameter, Three-Blade Paddle Wheel, Integrated Thru-Shaft PTO
Max. Blower RPM: 2900 RPM
Grass Catcher Capacity: 65 Gal / 7.0 Bu / 246 L
Full Signal: Grass-Pak® full signal alerts operator when catcher box is full
Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Deck
Recommended Cut Width: 36 to 56 in. (91 or 142 cm) (Collection, SD, Mulch)
Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) in 1/2 in (1 cm) Increments
Deck Suspension: Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires
Drive: 18 x 7.00-8 (pneumatic 4-ply, standard) 18 x 8.5-10 (pneumatic, 4-ply, optional low-profile)
Tailwheel: 13 x 6.50-6 (pneumatic 4-ply)
Deck Caster: 8 x 3.00-4 (Foamed rubber standard, optional pneumatic)

Size & Weight
Length: Tractor Only: 65 in (165 cm) / Tractor with C42 deck: 89.25 in (226.5 cm) / Tractor with C48 deck: 94 in (239 cm) / Tractor with deck tilted: 77 in (196 cm) / Tractor wheel base: 42.25 in (107 cm)
Width: Tractor Only (Outside Tire): 38.5 in (98 cm) NOT narrow drive tires / Tractor with C42 deck: 43.25 in (110 cm) / Tractor with C48 deck: 49.25 in (125 cm)
Height: Tractor: 46.5 in (118 cm)
Weight: Tractor Only: 675 lbs (306 kg) / Tractor with C42 deck: 866 lbs (393 kg) / Tractor with C48 deck: 898 lbs (407 kg)
