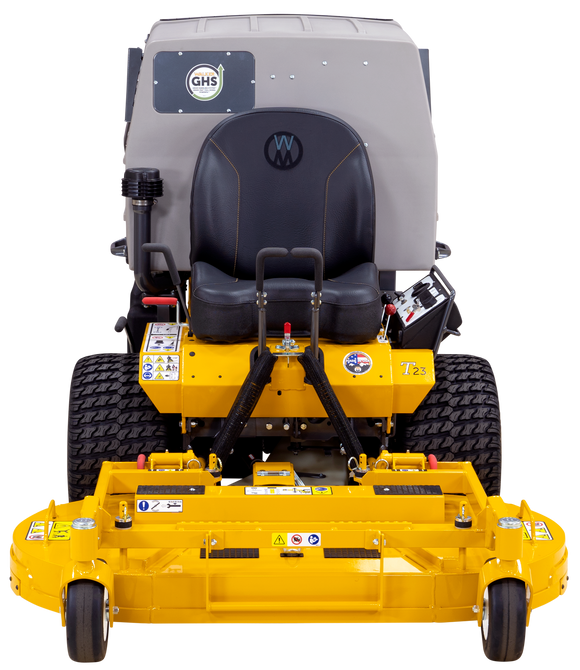

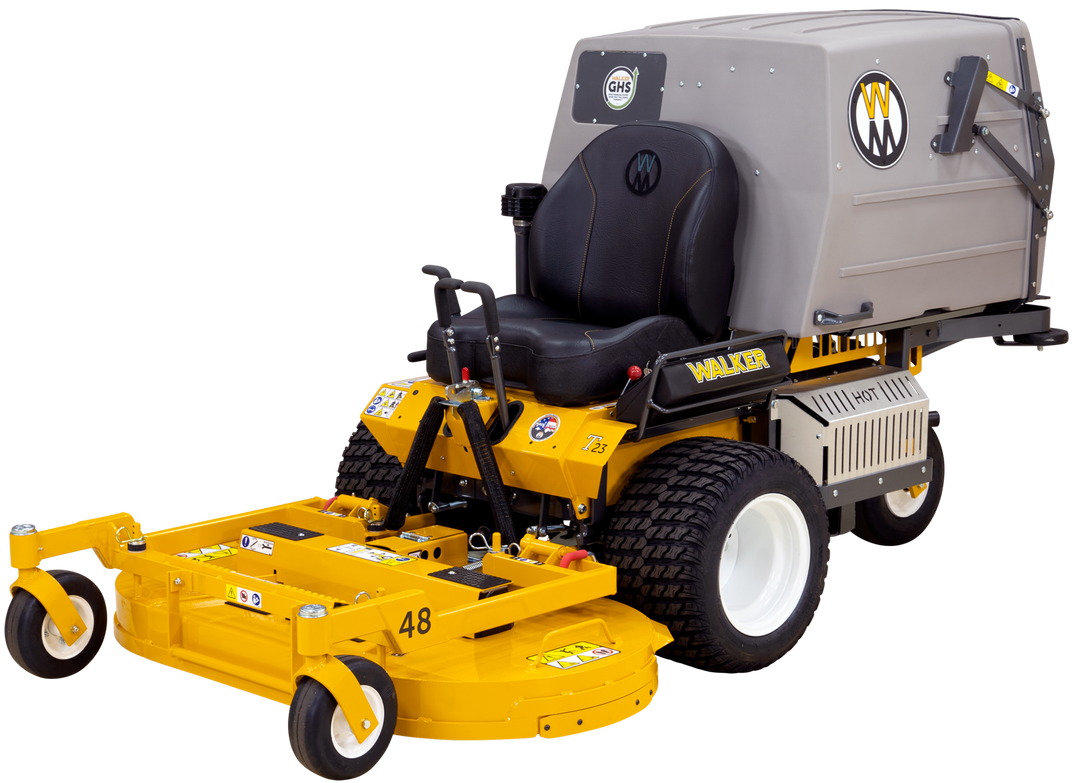

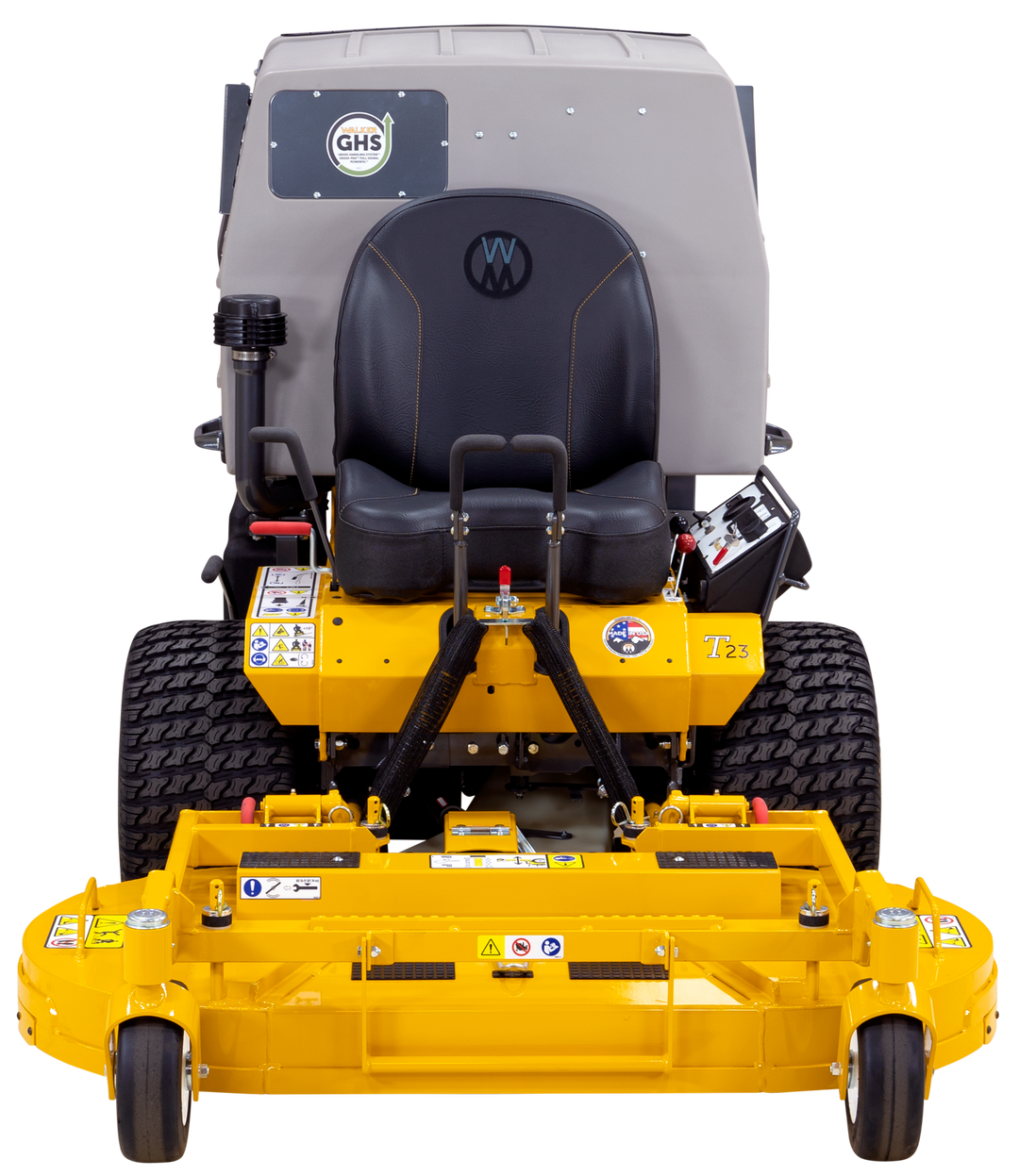

Walker MT23 Zero Turn Tractor (Deck Not Included)
Walker MT23 Zero Turn Tractor (Deck Not Included)

Walker® MT23 Zero Turn Tractor GHS (Deck Not Included)

$23,995.00

Walker SKU: MT23GHS-MT23-GHS

Popular with lawn maintenance professionals, the Model T23 offers the perfect balance of power, agility, durability and versatility for a wide range of mowing applications, making it a popular choice for over twenty-five years.

Only 3 in stock!
Description Technical Specs Compatible With

Popular with lawn maintenance professionals, the Model T23 offers the perfect balance of power, agility, durability and versatility for a wide range of mowing applications, making it a popular choice for over twenty-five years. The carbureted Kohler Command Pro CH680 engine provides maintainable power for any job.

Highlights

Powerful Engine: The Kohler Command Pro CH680 is a durable, air-cooled V-Twin engine with heavy-duty components like cast iron liners for lasting performance. Its carbureted system optimizes fuel use, and features like fully synthetic oil, full-pressure lubrication, and electronic ignition ensure reliable, easy starts Quiet and user-friendly, it’s been a trusted choice for Walker users for over a decade.

Custom Drive System: The combination of the Walker Model 7 hydrostatic transmission and the custom Walker final drive make this steering system responsive and robust. In addition to the proven durability and performance of this dual drive system, the TOPS oil filtration system lengthens the overall life of the transmissions and means reliability.

Grass Handling System: The Walker Mower features an integrated Grass Handling System® (GHS) built into the Model T frame, offering a compact and efficient grass collection. Its powerful vacuum action enables high-capacity, clog-resistant performance, allowing precise trimming on both sides without the bulk of external catchers.

Innovative Air Cleaner System: To prolong engine life in typical mowing conditions, it is crucial to focus on the air intake system. The T23 is equipped with a forward-mounted pre-cleaner and an oversized two-stage air filter assembly, ensuring the engine receives optimal air quality.

T23 Chassis and Construction: The all-welded chassis frame of the Model T is built using ⅜” x 2” steel, crafted through a proven multi-step fixture process to create a strong and durable foundation, ensuring reliability and long-lasting performance for each unit.

Available at ARNS Equipment in Calgary & Online Across Canada.

Engine
Manufacturer: Rehlko
Model: Command Pro® CH680
Displacement: 674 cc (41.1 cu. in.)
Max Power: 22.5 HP @ 3600 RPM
Max Torque: 36.6 ft-lbs
Cooling System: Air
Fuel: Gasoline (unleaded - 87 octane)
Fuel Capacity: 4.7 gal (17.8 liter)

Electrical
Battery: 12V, 35AH, 300 CCA
Charging System: Flywheel Alternator
Charging Output: 15 Amp DC (Regulated)

Transmission
Manufacturer/Model: Eaton Model 7 transmission with ductile cast iron final drive, Dual Hydrostatic, each wheel independently driven
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Mechanical Pin Lock in Transmission Gear
Forward MPH (km/h): 0-6.5 MPH (0-10.5 km/h) Infinitely Variable
Neutral: Transmission Release by Manual Dump Valve

Blade Drive
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]

Grass Handling
Blower: Three-Blade Paddle Wheel. 4-1/2 x 10-1/2 x 1/2 in. (11 x 27 x 1 cm)
Max. Blower RPM: 4000 RPM
Grass Catcher Capacity: 93 Gal / 10.0 Bu / 352 L
Full Signal: Grass-Pak® full signal alerts operator when catcher box is full
Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Deck
Recommended Cut Width: Collection: 36 to 52 in. (91 to 132 cm), Side Discharge: 36 to 74 in (91 to 188 cm), Mulch: 36 to 52 in. (91 to 132 cm)
Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) (DS52 and DS62 Belt Driven SD Decks Only)
Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires
Drive: 18 x 9.50-8 (Pneumatic 4-Ply, Standard)
Tailwheel: 13 x 5.00-6 (pneumatic 4-ply, standard dual) 13 x 8.00-6 (pneumatic 4-ply, optional single)
Deck Caster: 8 x 3.00-4 Semi-Pneumatic (Standard) 8 x 3.00-4 Pneumatic 4-Ply (Optional)

Size & Weight
Length: Tractor Only: 64.25 in (164 cm) / Tractor with C48 deck: 93.25 in (237 cm) / Tractor with deck: 77 in (196 cm) / Tractor wheel base: 41 in (104 cm)
Width: Tractor Only (Outside Tire): 39 in (99 cm) / Tractor with C48 deck: 49.25 in (125 cm) / Tread Width: 31.75 in (80.7 cm)
Height: Tractor: 50 in (127 cm)
Weight: Tractor Only: 820 lbs (372 kg) / Tractor with C48 deck: 1039 lbs (471 kg)
