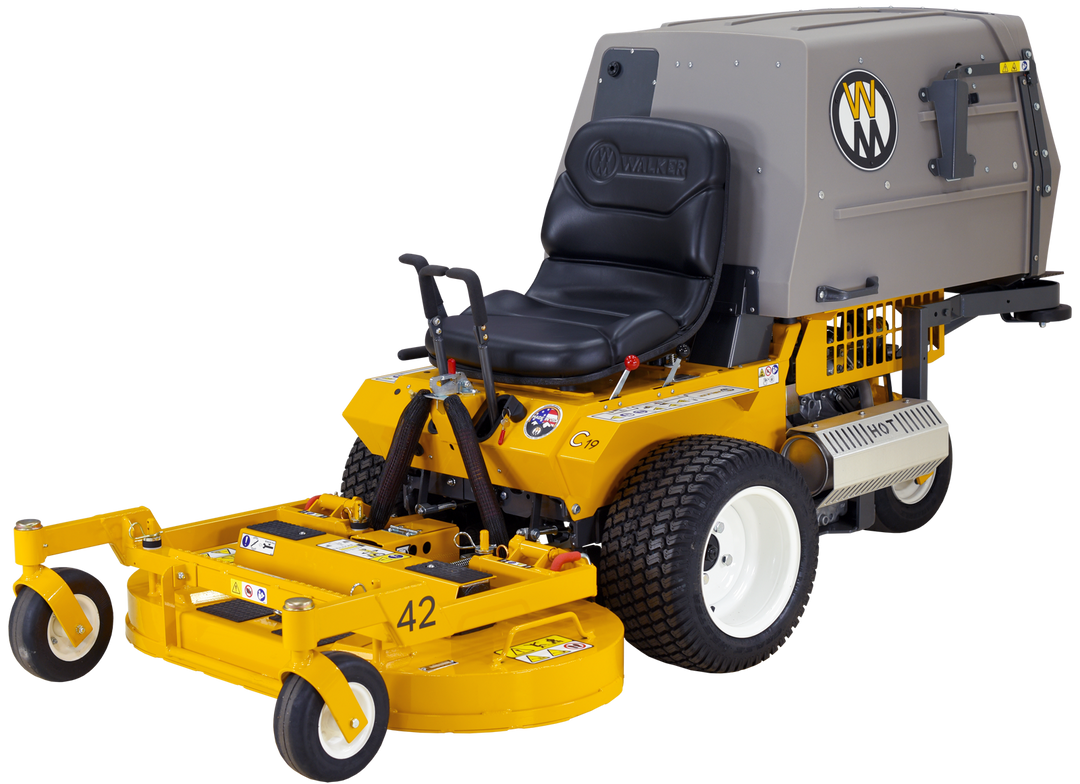

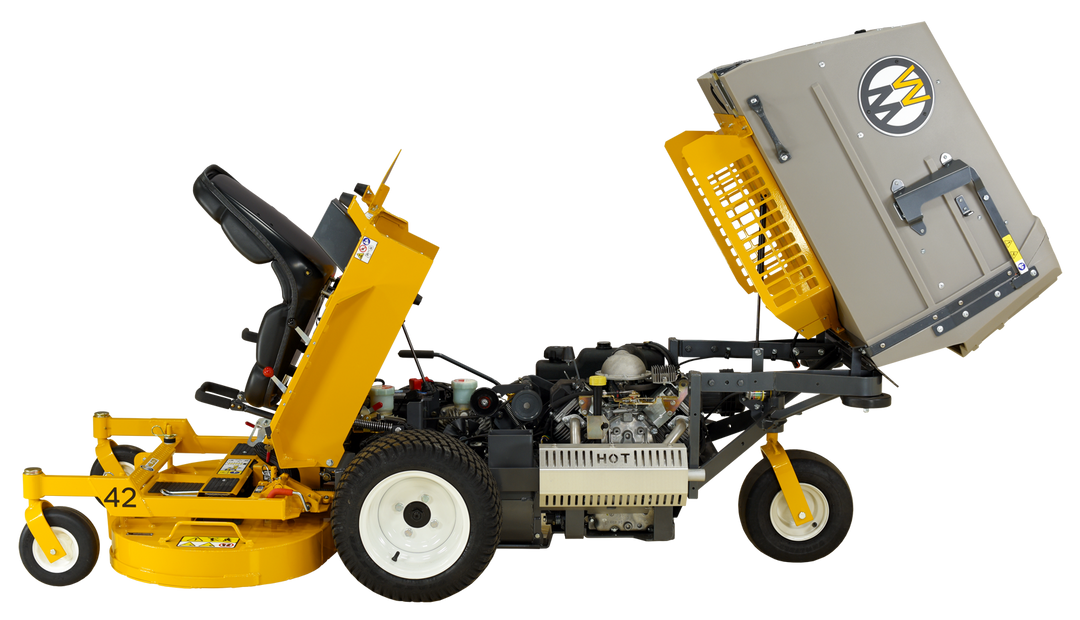

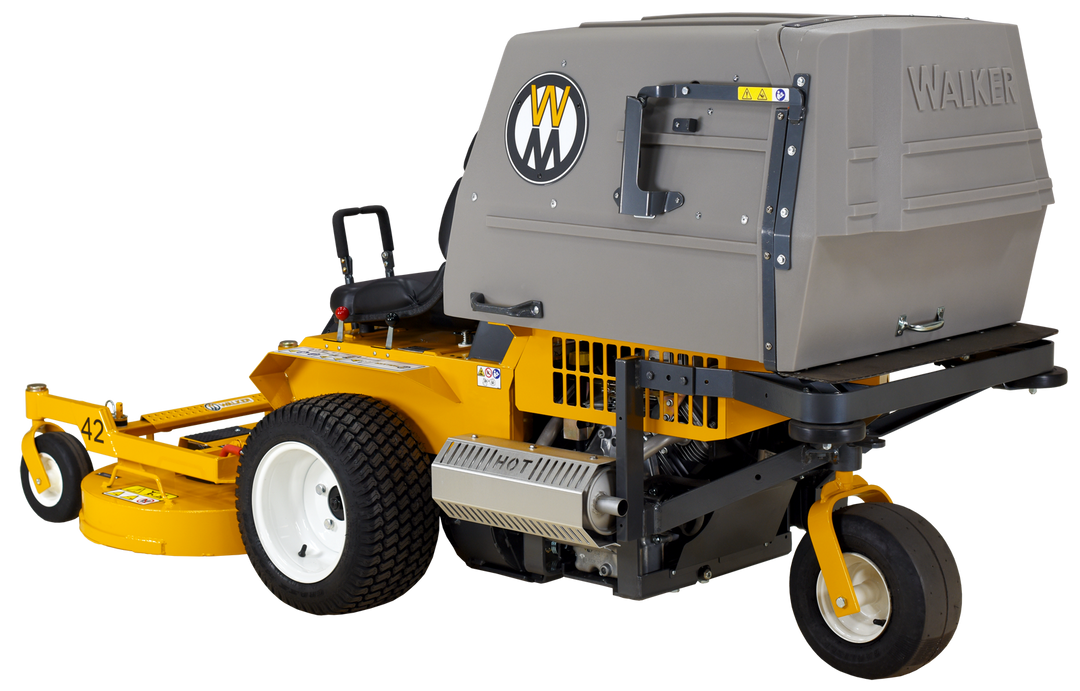

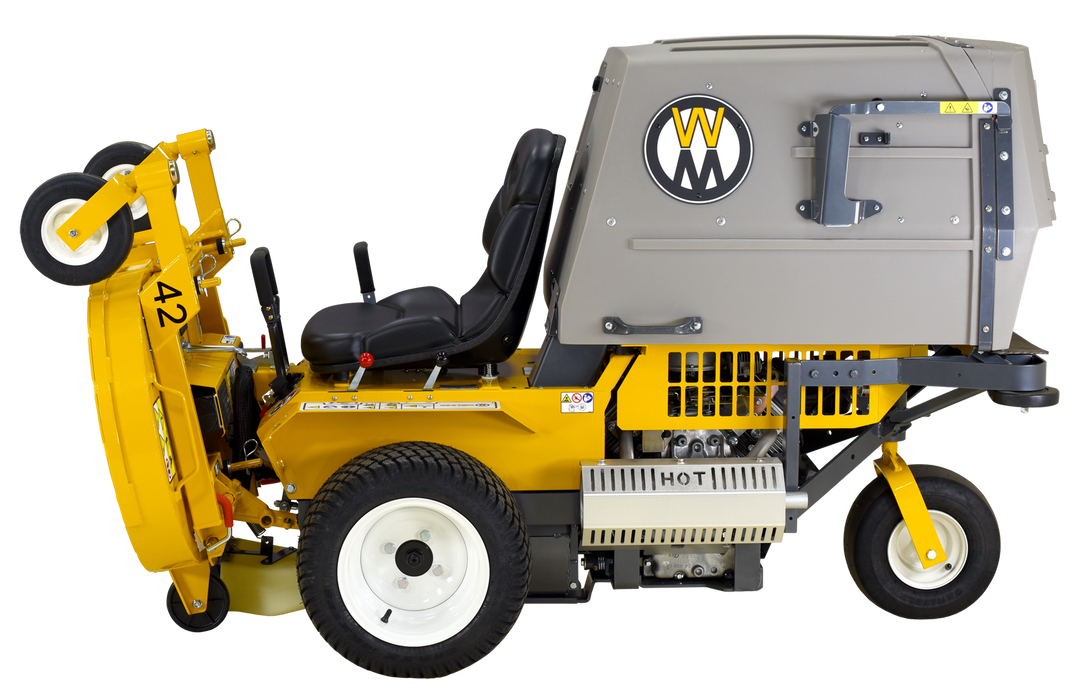

Walker® C19 Zero Turn Tractor (Deck Not Included)

Engine
Manufacturer: Rehlko
Model: Command Pro® CH620
Displacement: 674 cc (41.1 cu. in.)
Max Power: 19 HP @ 3600 RPM
Max Torque: 35 ft-lbs
Cooling System: Air
Fuel: Gasoline (unleaded - 87 octane; 10% ethanol maximum)
Fuel Capacity: 4 gal (15.1 liter)

Electrical
Battery: 12V, 35AH, 300CCA
Charging System: Flywheel Alternator
Charging Output: 15 Amp DC (Regulated)

Transmission
Manufacturer/Model: Eaton Model 7 transmission with ductile cast iron final drive, Dual Hydrostatic; each wheel independently driven
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Mechanical Pin Lock in Transmission Gear
Forward MPH (km/h): 0-6.5 MPH (0-10.5 km/h) Infinitely Variable
Neutral: Transmission Release by Manual Dump Valve

Blade Drive
PTO Shaft: Quick Disconnect Splined Shaft with two high speed U-joints
Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake

Grass Handling
Blower: 10.5 in diameter, Three-Blade Paddle Wheel
Max. Blower RPM: 4000 RPM
Grass Catcher Capacity: 65 Gal / 7.0 Bu / 246 L or 93 Gal / 10.0 Bu / 352 L
Full Signal: Grass-Pak® full signal alerts operator when catcher box is full
Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Deck
Recommended Cut Width: Collection: 36 to 48 in. (91 to 122 cm), Side Discharge: 36 to 62 in. (91 to 157 cm), Mulch: 36 to 52 in. (91 to 132 cm)
Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) (DS52 and DS62 Belt Driven SD Decks Only)
Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires
Drive: 18 x 8.50-10 (Pneumatic 4-Ply)
Tailwheel: 13 x 6.50-6
Deck Caster: 8 x 3.00-4 Semi-Pneumatic (Standard) 8 x 3.00-4 Pneumatic 4-Ply (Optional)

Size & Weight
Length: Tractor Only: 64.5 in (164 cm) / Tractor with C42 deck: 89.25 in (237 cm) / Tractor with deck tilted: 77 in (196 cm) / Tractor wheel base: 41 in (104 cm)
Height: Tractor: 47.5 in (121 cm)
Width: Tractor Only (Outside Tire): 37.75 in (96 cm) / Tractor with C42 deck: 43.25 in (110 cm)
Weight: Tractor Only: 762 lbs (346 kg) / Tractor with C42 deck: 953 lbs (432 kg)
