Engine
Manufacturer: Kubota
Model: D722
Displacement: 719 cc (43.9 cu. in.)
Max Power: 20.9 HP @ 3600 RPM
Max Torque: 34 ft-lbs
Cooling System: Liquid & radiator
Cooling Fan: Electric radiator cooling fan with reversible self-cleaning action
Fuel: Diesel (2-D)
Fuel Capacity: 4.7 gal (17.8 liter)
Electrical
Battery: 12 Volt, 41AH, 340 CCA (Interstate U1-SP40)
Charging System: 40 Amp Automotive Alternator
Charging Output: 40 Amp DC (Regulated)
Transmission
Manufacturer/Model: Dual Hydrostatic Eaton Model 7 transmission with ductile cast iron final drive, Each Wheel Independently Driven
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Mechanical Pin Lock in Transmission Gear
Forward MPH (km/h): 0-6.5 MPH (0-10.5 km/h) Infinitely Variable
Neutral: Transmission Release by Manual Dump Valve
Blade Drive
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]
Grass Handling
Blower: 10.5 in. Diameter, Three-Blade Paddle Wheel
Max. Blower RPM: 4000 RPM
Grass Catcher Capacity: 93 Gal / 10.0 Bu / 352 L
Full Signal: Grass-Pak® full signal alerts operator when catcher box is full
Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min
Deck
Recommended Cut Width: Collection: 36 to 52 in. (91 to 132 cm), Side Discharge 36 to 74 in. (91 to 188 cm) Mulch 36 to 52 in. (91 to 132 cm)
Cutting Height: 1 to 4 in (2.5 to 10 cm) or 1.5 to 4.5 in (4 to 11.5 cm) (DS52 and DS62 Belt Driven SD Decks Only)
Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Tires
Drive: 18 x 9.50-8 (Pneumatic 4-Ply, Standard)
Tailwheel: 13 x 5.00-6 (pneumatic 4-ply, standard dual) 13 x 8.00-6 (pneumatic 4-ply, optional single)
Deck Caster: 8 x 3.00-4 Foamed Rubber, All decks except DS52, DS62, DS74 8 x 3.00-4 Pneumatic 4-Ply (Optional)
Size & Weight

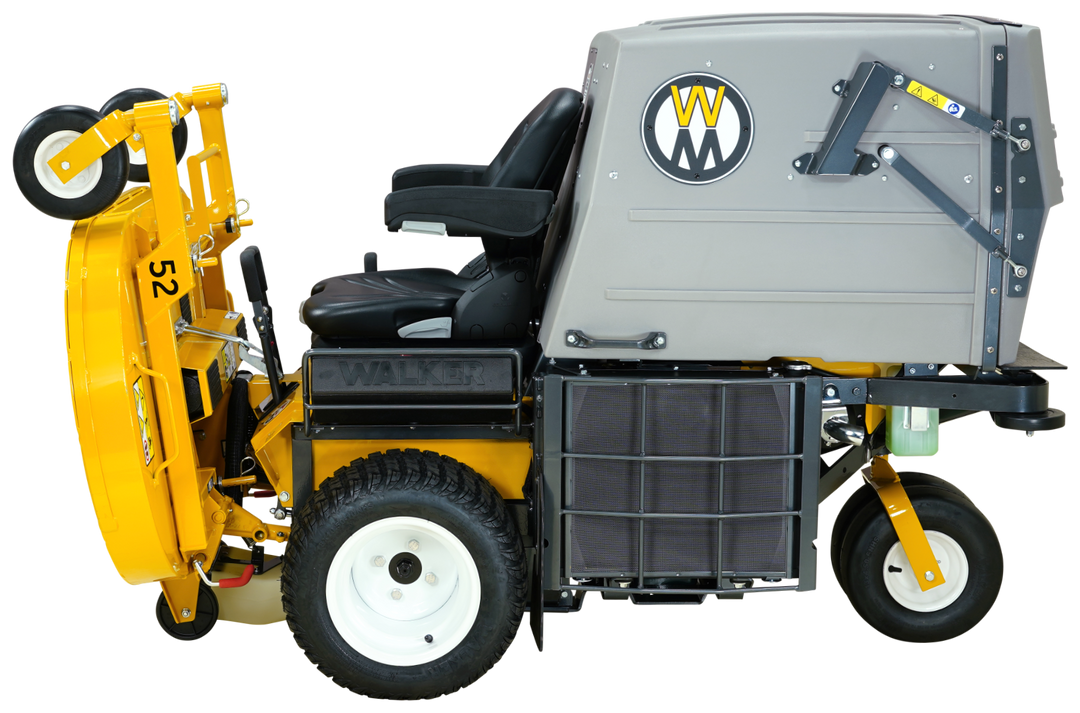

Length: Tractor Only: 64.5 in (164 cm) / Tractor with C48 deck: 93 in (236 cm) / Tractor with deck tilted: 77 in (196 cm) / Tractor wheel base: 41 in (104 cm)
Width: Tractor Only (Outside Tire): 39 in (99 cm) / Tractor with C48 deck: 49.25 in (125 cm)
Height: Tractor: 50 in (127 cm)
Weight: Tractor Only: 1,000 lbs (454 kg) / Tractor with C48 deck: 1,219 lbs (553 kg)
