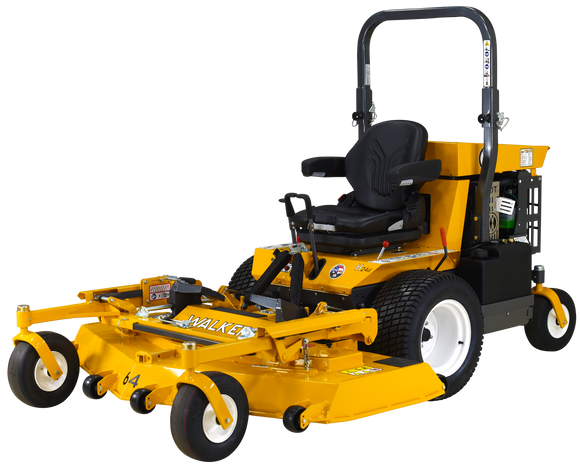

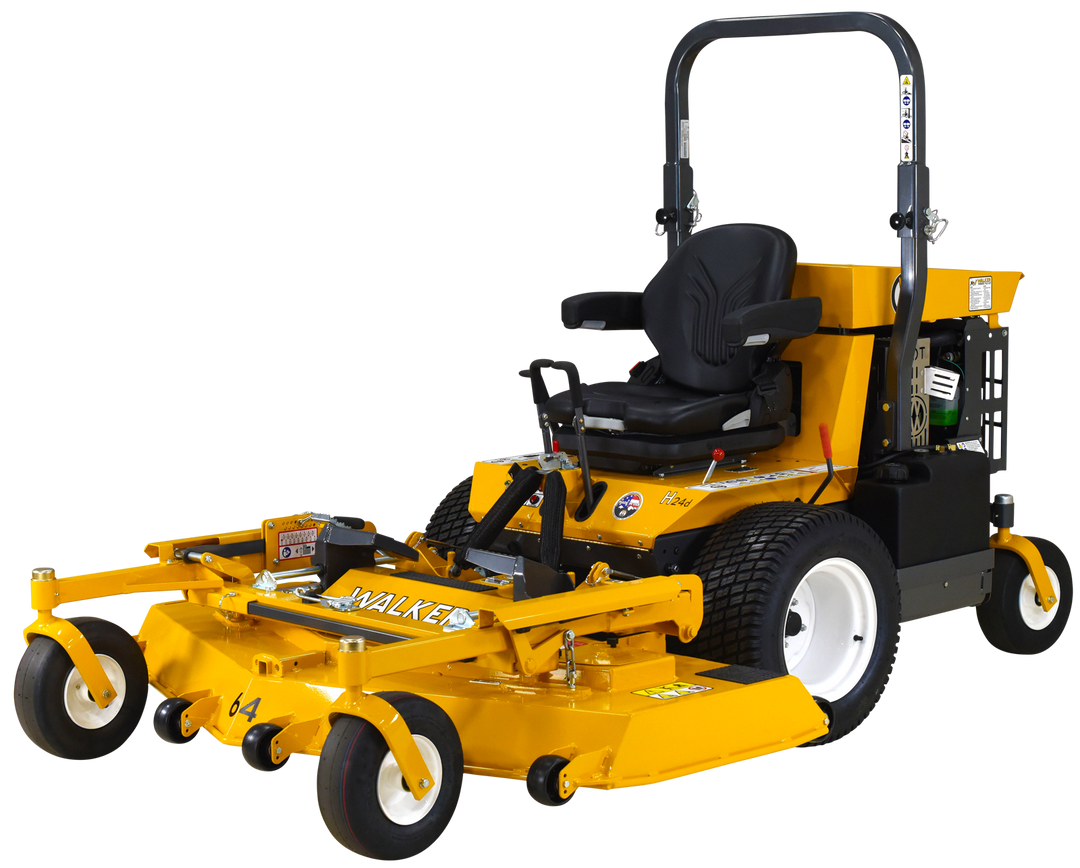

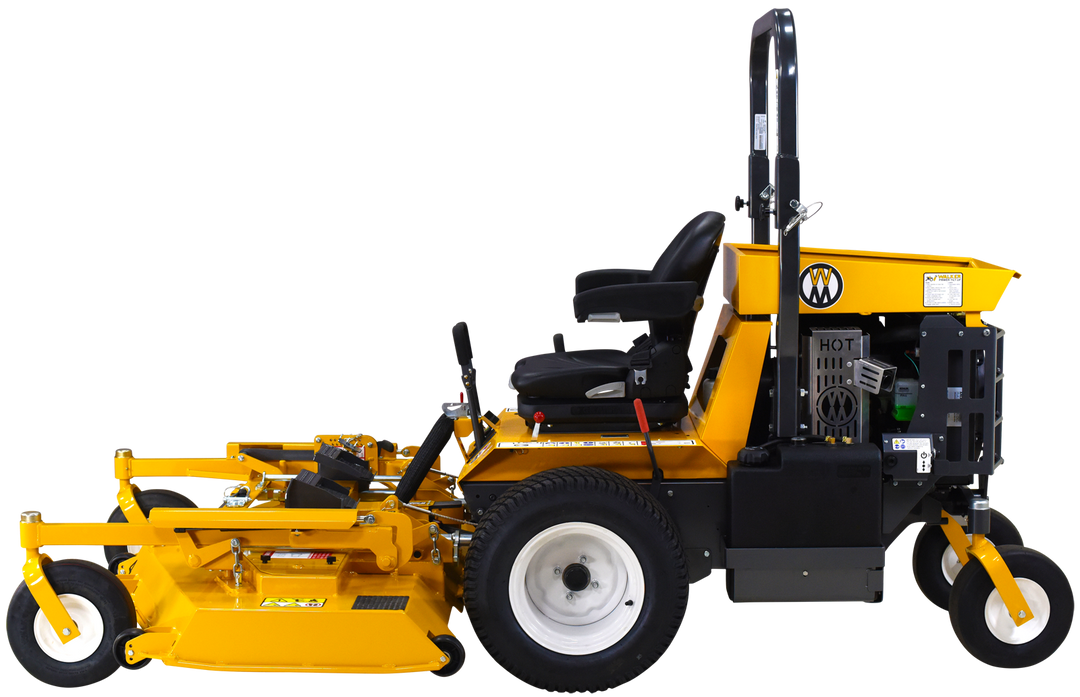

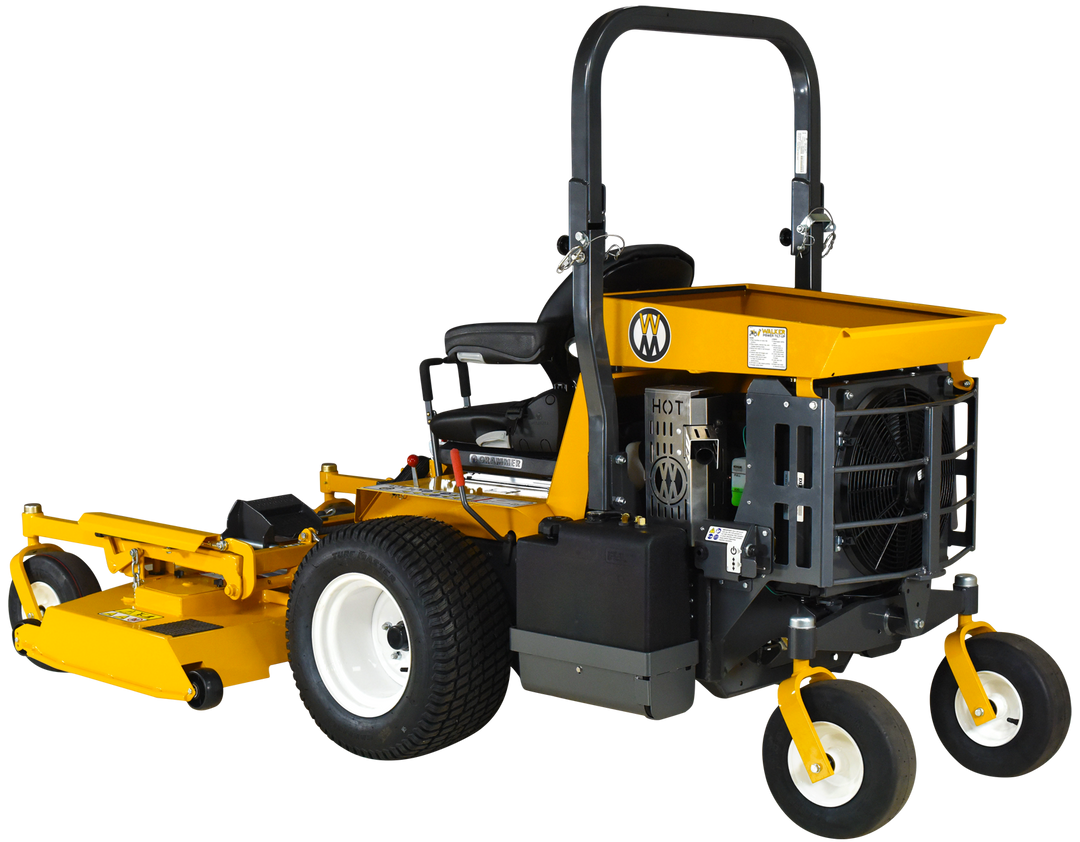

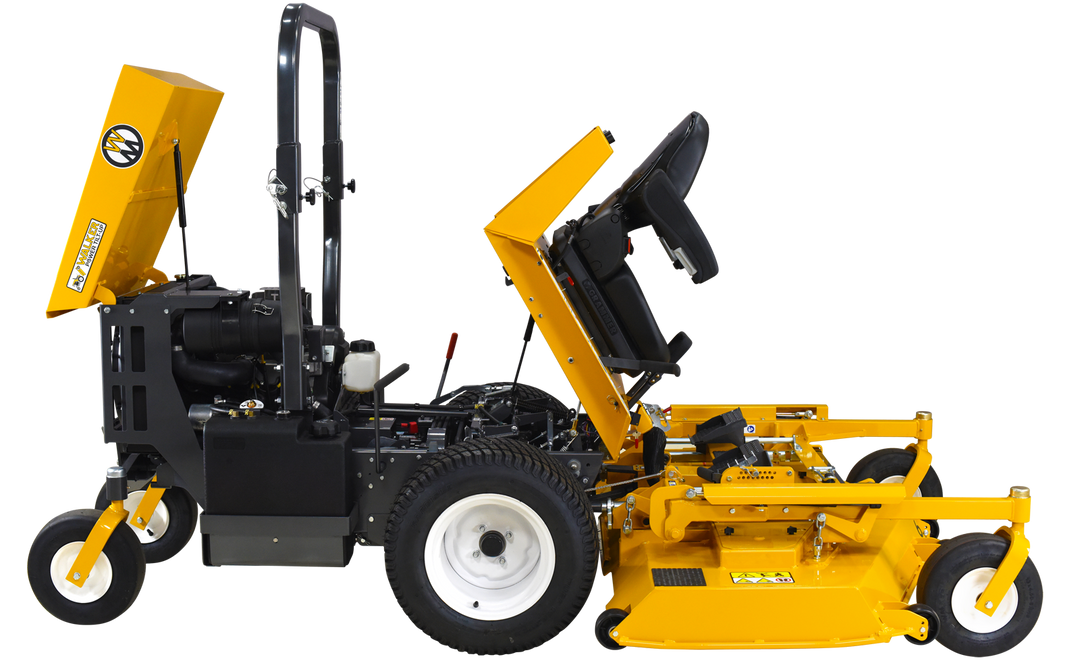

What is the Walker H24d?
The Walker H24d is a commercial front-mount diesel mower designed for high-production mowing, municipal work, institutional properties and year-round grounds maintenance.
Who is the Walker H24d designed for?
It is designed for commercial operators, municipalities, schools, hospitals, campuses, estates and other large properties that require efficient mowing, strong torque and long operating hours.
What engine does the Walker H24d use?
The H24d is powered by a Rehlko KDW1003 diesel engine.
What is the engine displacement?
The engine has 1,028cc, or 62.7 cubic inches, of displacement.
How much horsepower does the Walker H24d produce?
The engine produces up to approximately 23.7 HP at 3,600 RPM.
How much torque does the Walker H24d produce?
The engine produces up to approximately 36.8 ft-lb of torque.
What are the benefits of a diesel engine on the Walker H24d?
The diesel engine provides strong low-end torque, efficient fuel use and durable performance for long commercial mowing days.
Is the Walker H24d air cooled or liquid cooled?
The H24d uses a liquid-cooled engine with a radiator.
What are the benefits of liquid cooling?
Liquid cooling helps regulate engine temperature during extended operation and under changing loads.
Does the Walker H24d have a self-cleaning radiator?
Yes. The self-cleaning radiator is designed to help maintain cooling performance by reducing debris buildup.
Why is a self-cleaning radiator useful on a mower?
Grass, dust and debris can restrict radiator airflow. A self-cleaning design helps reduce overheating risk and the amount of manual cleaning required.
What type of fuel does the Walker H24d use?
It uses 2-D diesel fuel.
How much fuel does the Walker H24d hold?
The mower holds a total of 9.4 US gallons, or 35.6 litres.
How is the fuel capacity divided?
The H24d uses two independent 4.7-gallon fuel tanks with a selector valve.
What are the benefits of dual fuel tanks?
The dual-tank design provides extended operating time and allows the operator to switch between tanks during the workday.
Is the Walker H24d fuel efficient?
Yes. Diesel power and the mower’s high-production design make it well suited to operators focused on fuel efficiency and return on investment.
What battery does the Walker H24d use?
It uses a 12-volt battery rated at 340 cold-cranking amps.
What charging system does the H24d use?
It uses a regulated flywheel alternator.
What is the charging output?
The charging system produces up to 30 amps DC.
What transmission does the Walker H24d use?
It uses dual independent Hydro-Gear ZT-3400 integrated hydrostatic transaxles.
What are Hydro-Gear ZT-3400 transaxles?
ZT-3400 transaxles are commercial-grade hydrostatic drives designed for smooth control, durability and serviceability.
What are the benefits of dual independent transaxles?
Each drive wheel is powered separately, providing precise steering, zero-turn maneuverability and infinitely variable speed control.
Is the Walker H24d a zero-turn mower?
Yes. Its independent hydrostatic drive system allows tight zero-turn handling.
How is the Walker H24d steered?
It uses individual hand levers to control the left and right drive wheels.
Does the Walker H24d have cruise control?
Yes. It includes a precision friction-lock forward-speed control with cruise control and a neutral-park position.
How fast does the Walker H24d travel?
It can travel from 0 to approximately 10 mph, or 16 km/h.
What does infinitely variable speed mean?
It means the operator can select any forward speed within the mower’s range rather than choosing from fixed gears.
How is the parking brake operated?
A single lever engages an internal mechanical lockout in each transaxle.
Can the transaxles be released for manual movement?
Yes. Manual dump valves allow the drive system to be released when the mower must be moved without engine power.
What mowing deck widths are recommended for the Walker H24d?
Walker recommends a 60-inch side-discharge deck or a rear-discharge deck between approximately 52 and 64 inches.
How many discharge deck options are available?
The supplied information lists six discharge deck options.
How many mulching deck options are available?
The supplied information lists two mulching deck options.
Can the Walker H24d use a side-discharge deck?
Yes. A 60-inch side-discharge deck is listed as a recommended configuration.
Can the Walker H24d use a rear-discharge deck?
Yes. Compatible rear-discharge decks range from approximately 52 to 64 inches.
Can the Walker H24d mulch grass clippings?
Yes. Mulching is available with compatible Walker deck configurations.
Does the Walker H24d include a mowing deck?
Deck inclusion depends on the package. The tractor and selected deck may be configured or sold separately.
Which deck should I choose for the Walker H24d?
Choose a side-discharge deck for high-volume mowing or a rear-discharge deck when clipping control and trimming from both sides are priorities.
What is the cutting-height range?
Compatible decks adjust from approximately 1 inch to 5 inches.
How many cutting-height positions are available?
The mower provides 17 cutting-height positions.
How large are the cutting-height increments?
The deck adjusts in approximately 1/4-inch increments.
What type of deck suspension does the H24d use?
Compatible decks use a Torsion-Flex frame with caster wheels and counterweight springs.
What are the benefits of Torsion-Flex deck suspension?
It helps the deck follow changes in terrain independently from the tractor for a more consistent cutting height.
What do the counterweight springs do?
They help balance the deck and reduce the effort required to raise or tilt it.
What is the quick-disconnect PTO shaft?
It is a splined shaft with two high-speed universal joints that transfers engine power to the deck or attachment.
What are the benefits of the quick-disconnect PTO system?
It simplifies deck and attachment changes while providing a strong mechanical power connection.
How are the mower blades engaged?
The H24d uses a manual belt-tightener clutch.
Does the blade-drive system include a brake?
Yes. A band brake stops the blades within approximately five seconds of disengagement.
Why is a blade brake important?
It reduces the amount of time the blades continue rotating after the operator disengages the deck.
Does the Walker H24d include a suspension seat?
Yes. A Grammer suspension seat is included as standard equipment.
What are the benefits of the Grammer suspension seat?
The suspension seat helps absorb bumps and vibration, improving comfort during long commercial mowing sessions.
Is the Walker H24d comfortable for all-day use?
Yes. Its suspension seat, liquid-cooled engine and stable Model H chassis are designed for extended operation.
Does the Walker H24d include a utility bed?
Yes. A utility bed is included as standard equipment.
What can the utility bed be used for?
It can carry tools, supplies and compatible materials around the property, subject to Walker’s load limits.
Why is a utility bed useful on a commercial mower?
It reduces trips back to a truck or maintenance building and helps operators carry common tools during the workday.
What size drive tires does the Walker H24d use?
The drive tires measure approximately 23 inches by 10.5 inches on 12-inch rims.
What size tailwheel does the Walker H24d use?
The supplied specifications list a 23-inch by 10.5-inch tailwheel configuration.
What size deck caster tires are used?
Compatible decks use 13-inch by 5-inch pneumatic four-ply caster tires.
What are the benefits of pneumatic deck caster tires?
They provide cushioning and help the deck travel more smoothly across uneven ground.
Is the Walker H24d suitable for rough terrain?
Yes. Its large tires, heavy chassis, suspension seat and independent deck suspension make it suitable for moderately rough commercial properties.
Can the Walker H24d mow on slopes?
It may be used on appropriate slopes within Walker’s stated limits. Wet turf, loose soil and abrupt turns can reduce traction.
Does the Walker H24d have a ROPS?
The supplied dimensions include measurements with a ROPS installed and collapsed, indicating that a rollover protective structure is available or equipped depending on configuration.
What is a ROPS?
ROPS stands for rollover protective structure. It is designed to help protect the operator during a rollover when used with the proper seat belt.
Can the ROPS be folded down?
Yes. The listed dimensions include a collapsed ROPS height.
When should the ROPS be folded?
It should only be folded when necessary for low-clearance areas and according to Walker’s safety instructions.
What conditions can affect mower stability?
Slope angle, wet ground, hidden holes, tire condition, mowing direction, speed and operator technique can all affect control.
How long is the Walker H24d tractor?
The tractor alone is approximately 69 inches long.
How long is the H24d with an R64 deck?
With an R64 deck installed, the mower is approximately 107.75 inches long.
How long is the mower with the deck tilted?
With the deck tilted, the listed length is approximately 87.75 inches.
What is the wheelbase?
The wheelbase is approximately 45.25 inches.
How wide is the Walker H24d tractor?
The tractor is approximately 46.5 inches wide at the outside of the tires.
How wide is the H24d with an R64 deck?
With an R64 deck installed, the mower is approximately 66 inches wide.
What is the tread width?
The listed tread width is approximately 36.5 inches.
How tall is the Walker H24d?
The tractor is approximately 51.25 inches tall.
How tall is the H24d with the ROPS raised?
With the ROPS raised, the mower is approximately 66.3 inches tall.
How tall is the H24d with the ROPS collapsed?
With the ROPS collapsed, the listed height is approximately 51.25 inches.
How much does the Walker H24d weigh?
The tractor alone weighs approximately 997 pounds, or 452 kilograms.
How much does the H24d weigh with an R64 deck?
With an R64 deck installed, it weighs approximately 1,434 pounds, or 650 kilograms.
Why does the total mower weight vary?
The final weight depends on the selected deck, ROPS, attachments and other installed equipment.
Can the Walker H24d fit through a standard gate?
That depends on the installed deck. The tractor is 46.5 inches wide, while an R64 configuration is approximately 66 inches wide.
What should I measure before buying a Walker H24d?
Measure gates, pathways, trailer ramps, garage doors, storage areas and the narrowest spaces where the mower will operate.
Can the Walker H24d be transported on a trailer?
Yes. Use a trailer with enough width, payload capacity, ramp strength and secure tie-down points for the tractor, deck and attachments.
Is the Walker H24d suitable for commercial landscapers?
Yes. It is designed for professional operators who need high production, diesel efficiency and long-term durability.
Is the Walker H24d suitable for municipalities?
Yes. Its diesel engine, wide deck compatibility, utility bed and attachment options make it well suited to municipal grounds maintenance.
Is the Walker H24d suitable for schools and institutional properties?
Yes. It is a strong choice for campuses, hospitals, parks and other large institutional grounds.
Is the Walker H24d suitable for acreage owners?
Yes. It is well suited to large acreages where fuel efficiency, durability and attachment versatility are important.
Is the Walker H24d suitable for small residential yards?
It is generally too large and specialized for small residential lawns. It is best suited to commercial and large-property use.
Can the Walker H24d be used year round?
Yes. Its implement compatibility allows it to perform mowing, snow removal and other property-maintenance tasks.
What popular attachments are available for the Walker H24d?
Popular options include an implement hitch, 50-inch two-stage snowblower, 60-inch dozer blade and operator hard cab.
What is the Walker implement hitch?
The implement hitch allows compatible front-mounted attachments to be connected to the tractor.
Can the Walker H24d operate a snowblower?
Yes. A compatible 50-inch two-stage snowblower is available.
Can the Walker H24d plow snow?
Yes. A compatible 60-inch dozer blade is available.
Can the Walker H24d use an operator cab?
Yes. An optional hard cab is available.
Why is the hard cab useful?
It helps protect the operator from wind, snow and cold during winter maintenance.
What maintenance does the Walker H24d require?
Routine maintenance includes checking engine oil and coolant, servicing fuel and air filters, cleaning the radiator, maintaining the hydrostatic transaxles, inspecting belts and PTO components, sharpening blades and checking tires.
Does a diesel engine require different maintenance than a gasoline engine?
Yes. Diesel maintenance includes attention to the fuel system, fuel filters, glow-starting system where applicable and cooling system.
How often should the radiator be inspected?
It should be checked regularly, especially in dusty or debris-heavy mowing conditions, even with the self-cleaning system.
Do the Hydro-Gear ZT-3400 transmissions require maintenance?
Yes. Hydraulic fluid, filters and drive components should be serviced according to Walker and Hydro-Gear schedules.
How often should the mower blades be sharpened?
Inspect the blades regularly and sharpen them when cut quality declines, grass tips appear torn or visible wear is present.
Should the deck be cleaned after mowing?
Yes. Removing grass buildup helps maintain airflow, discharge performance and deck condition.
Is professional service recommended for the Walker H24d?
Yes. Regular professional service can help preserve diesel engine performance, cooling efficiency, transmission reliability and warranty compliance.
What are the main benefits of the Walker H24d?
Its main benefits include a high-torque diesel engine, liquid cooling, self-cleaning radiator, commercial ZT-3400 transaxles, suspension seat, utility bed and year-round attachment capability.
What is the difference between the Walker H24d and H27i?
The H24d uses a 23.7 HP diesel engine with liquid cooling and strong fuel efficiency, while the H27i uses a lighter 26.5 HP gasoline EFI engine.
Should I choose the Walker H24d or H27i?
Choose the H24d for diesel efficiency, long operating hours and high-torque commercial use. Choose the H27i for lighter weight, gasoline convenience and responsive EFI performance.
What is the difference between the Walker H24d and H38i?
The H24d focuses on diesel efficiency, torque and extended operation, while the H38i provides significantly more gasoline horsepower for the largest decks and attachments.
Why choose the Walker H24d instead of a traditional mid-mount zero turn?
The H24d offers an out-front deck design, improved trimming visibility, flexible deck selection, a utility bed and year-round attachment compatibility.
Where can I buy the Walker H24d in Canada?
The Walker H24d is available in store from Arns Equipment in Calgary or online across Canada at arns.ca.
