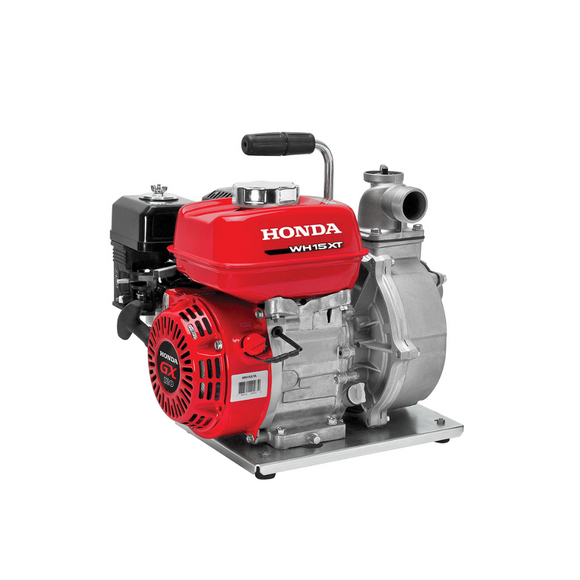

Honda® WH15XTC 1.5-Inch High-Pressure Water Pump

The Honda WH15XTC 1.5-inch high-pressure water pump is designed for acreage owners, landscapers, agricultural operators, contractors, and property-maintenance crews that need to move clean water with more outlet pressure than a standard transfer pump can provide.

Powered by a commercial-grade Honda GX120 four-stroke engine, the WH15XTC can move up to 400 litres per minute, or approximately 24,000 litres per hour, while producing up to 55 psi. Its combination of volume and pressure makes it particularly useful for irrigation, sprinkler systems, long discharge hoses, elevation changes, tank filling, and applications that use a compatible fire-hose-style nozzle.

Despite being listed on the Arns website as a “trash pump,” the WH15XTC is technically a high-pressure clean-water pump. It is not designed to handle rocks, gravel, mud, or the larger suspended debris accepted by Honda’s WT-series construction trash pumps. That distinction should be made clear in the product description so customers select the right pump for their water conditions.

Our Recommendation

We recommend the Honda WH15XTC to customers who need more pressure than the compact WX15TCX can provide but do not need the debris-handling construction of a WT-series trash pump.

It is an especially strong choice for:

• Acreage and agricultural irrigation
• Operating compatible sprinklers
• Moving water through longer discharge hoses
• Pumping water uphill
• Filling elevated or distant tanks
• Applying water through a compatible nozzle
• General dewatering where clean water and stronger outlet pressure are required
• Landscapers and contractors who need a portable high-pressure pump

The WH15XTC is not the model we recommend for muddy excavations, flooded ditches containing stones, construction runoff, or water with significant suspended solids. Those applications belong to the Honda WT20, WT30, or WT40 trash-pump family.

Customers who primarily need to empty a pool, move water between nearby tanks, or complete a small drainage job may also find the lighter WX15TCX easier to carry and more economical.

More Pressure for Irrigation and Longer Hose Runs

The main reason to choose the WH15XTC is pressure.

A conventional transfer pump is designed primarily to move water volume. The WH15XTC is engineered to maintain stronger discharge pressure, helping it overcome longer hose runs, elevation changes, restrictive fittings, and nozzle requirements.

Honda lists the WH15XTC with:

• Maximum flow of 400 litres per minute
• Approximately 88 Imperial gallons per minute
• Maximum pressure of 55 psi
• 1.5-inch suction and discharge connections

This makes it much better suited to irrigation and spraying applications than the lightweight WX15TCX.

The maximum flow and maximum pressure figures occur at different points on the pump curve. The pump will not deliver 400 litres per minute while simultaneously operating at maximum pressure. As discharge pressure and system resistance increase, available flow decreases.

What Is the Honda WH15XTC Designed to Pump?

The WH15XTC is designed for relatively clean water.

Appropriate applications may include:

• Ponds with a properly positioned suction strainer
• Irrigation reservoirs
• Rainwater tanks
• Cisterns
• Swimming pools
• Agricultural water storage
• Clean construction water
• Floodwater without significant debris
• Water transfer between tanks
• Sprinkler and nozzle applications

The supplied suction strainer should always be used. It helps prevent debris large enough to damage or obstruct the pump from entering the suction line.

When drawing from a pond, ditch, or dugout, the strainer should be suspended above the bottom rather than placed directly into silt, sand, weeds, or gravel.

What Should You Avoid Pumping?

The WH15XTC is not a solids-handling trash pump.

It should not be used to pump water containing significant amounts of:

• Stones
• Gravel
• Mud
• Sand
• Sticks
• Leaves
• Wood chips
• Construction debris
• Thick sludge
• Sewage

It is also not intended for gasoline, diesel fuel, solvents, corrosive chemicals, saltwater, or other liquids unless Honda has specifically approved the application.

Using the wrong pump for contaminated water can damage the impeller, volute, mechanical seal, and engine-driven pump assembly. For water containing rocks or larger debris, choose one of Honda’s WT-series construction pumps instead. Honda describes that family as being designed specifically for water containing rocks and unwanted debris.

Honda GX120 Commercial-Grade Engine

The WH15XTC is powered by a Honda GX120T2 four-stroke OHV engine.

Honda GX engines are widely used in commercial pumps, compactors, generators, construction equipment, and other applications where dependable starting and long service life matter. The WH15XTC uses recoil starting and carries approximately 2 litres of fuel.

Because it is a four-stroke engine, gasoline and engine oil remain separate. The operator must not mix two-cycle oil into the fuel.

Routine engine care includes:

• Checking engine oil before operation
• Using fresh gasoline
• Inspecting and cleaning the air filter
• Checking the spark plug
• Keeping the cooling system clear
• Changing oil at the recommended intervals
• Preparing the fuel system properly before seasonal storage

The engine should always be operated on firm, level ground to maintain correct lubrication and stable pump operation.

Honda Oil Alert Protection

Honda equips the WH15XTC with its Oil Alert system.

If engine oil drops below a safe operating level, Oil Alert is designed to shut the engine down before insufficient lubrication causes more serious damage.

This is an important protective feature, but it does not replace checking the oil before each use. If the engine stops unexpectedly or refuses to start, the oil level should be one of the first things inspected.

Oil Alert protects the engine. It does not monitor whether the pump housing has been primed or whether the suction hose is receiving water.

Self-Priming Centrifugal Pump

The WH15XTC uses a mechanical centrifugal pump connected directly to the engine.

Although it is described as self-priming, the pump housing still needs to be filled with clean water before startup. Self-priming means the pump can evacuate air from a properly sealed suction hose after the housing has been filled.

It does not mean the pump can be safely run dry.

Running without priming water can overheat and damage the mechanical seal. Before starting:

1. Position the pump close to the water source.
2. Connect a reinforced suction hose.
3. Install the suction strainer.
4. Confirm that all suction fittings are airtight.
5. Connect and secure the discharge hose.
6. Fill the pump housing through the priming port.
7. Check engine oil and fuel.
8. Start the engine according to Honda’s procedure.
9. Confirm that the pump establishes water flow.

If the pump does not begin moving water, shut it down and inspect the priming level, suction connections, strainer, and hose placement.

1.5-Inch Suction and Discharge Ports

The WH15XTC uses 40 mm or 1.5-inch suction and discharge ports.

A complete pumping setup may require:

• Reinforced 1.5-inch suction hose
• Compatible suction strainer
• 1.5-inch discharge hose
• Hose clamps
• Threaded adapters
• Camlock fittings
• Sprinkler or irrigation connections
• A compatible nozzle when higher-pressure spraying is required

The suction hose must be designed to resist collapse under vacuum. Lightweight lay-flat or ordinary discharge hose should not normally be used on the intake side.

Every restriction reduces performance. Long hoses, sharp bends, undersized fittings, partially closed valves, and restrictive nozzles increase system resistance and reduce available water flow.

Designed for Sprinklers and Compatible Nozzles

Honda specifically positions the WH15XTC for use with irrigation systems and compatible fire-hose-style nozzles.

This makes it useful for:

• Watering larger acreages
• Supplying temporary irrigation systems
• Running compatible sprinklers
• Applying water across landscaped areas
• Directing water farther from the pump
• Moving water to elevated tanks or fields

The actual number and size of sprinklers the pump can support depends on their combined flow and pressure requirements.

Before building an irrigation system, compare:

• Required litres per minute
• Required operating pressure
• Hose length
• Hose diameter
• Elevation gain
• Number of fittings
• Sprinkler or nozzle restrictions

A pump may have enough maximum pressure for an application but still lack the required flow once the complete system resistance is considered.

Maximum Head and Real-World Output

High-pressure pump performance is affected by total dynamic head.

Total head includes:

• Vertical suction lift
• Vertical discharge rise
• Friction inside hoses
• Restrictions from valves and fittings
• Pressure required by sprinklers or nozzles

As total head increases, flow decreases.

For best performance, place the pump:

• Close to the water source
• On firm, level ground
• With the shortest practical suction hose
• With as few suction-side bends as possible
• Below or near the water level when the site allows

Centrifugal pumps are better at pushing water than pulling it. Reducing suction lift can improve priming time and delivered flow considerably.

Portable Full-Frame Construction

The WH15XTC weighs approximately 22 kg or 48.5 lb and includes a convenient carrying handle and steel base.

It is heavier than the 9 kg WX15TCX, but the larger frame supports the GX120 engine and higher-pressure pump assembly.

The frame helps:

• Protect major components
• Provide a secure lifting point
• Stabilize the pump during operation
• Keep the engine and pump assembly above the ground
• Simplify loading into a truck or trailer

One person may be able to carry it for short distances, but a two-person lift may be safer when loading it into a high truck bed or moving it across difficult terrain.

Honda Water and Trash Pump Comparison

The WH15XTC belongs to Honda’s high-pressure pump family, not its WT construction trash-pump family. Honda separates its pumps into transfer, high-pressure, and construction categories because each is designed around a different type of work.

Honda WH15XTC vs WX15TCX

The WH15XTC and WX15TCX both use 1.5-inch hose connections, but their working priorities are different.

Choose the WX15TCX when the pump needs to be carried frequently and the job involves moving clean water over a relatively short distance.

Choose the WH15XTC when pressure, irrigation performance, elevation, or discharge distance matters more than minimum weight.

The WH15XTC is not simply the more powerful option. For a homeowner emptying a pool or filling a nearby tank, its added weight and pressure may provide little practical advantage.

Honda WH15XTC vs WH20XTC

The WH20XTC is the larger two-inch high-pressure model.

The WH15XTC is generally easier to transport and requires a smaller hose package.

The WH20XTC becomes the stronger option when larger hose capacity, higher overall water demand, or broader commercial irrigation work justifies the step up. Honda currently lists both models together in its Canadian high-pressure pump lineup.

Honda WH15XTC vs WT20XK4C

The WH15XTC and WT20XK4C may both be used for dewatering, but they are not interchangeable.

Choose the WH15XTC when the water is reasonably clean and pressure is important.

Choose the WT20XK4C when the water contains mud, stones, or construction debris. Arns lists the WT20XK4C as a two-inch trash pump capable of moving up to 710 litres per minute.

Buying a trash pump for clean-water irrigation adds considerable weight and cost. Using a high-pressure pump in dirty construction water risks damage and downtime. The water conditions should determine the choice.

High-Pressure Pump vs Trash Pump

The difference matters enough that customers should see it directly on the product page.

High-Pressure Pump

A high-pressure pump is designed to move relatively clean water against greater resistance.

Typical applications include:

• Irrigation
• Sprinklers
• Long hoses
• Elevation changes
• Watering with compatible nozzles
• Filling distant or elevated tanks

The WH15XTC and WH20XTC belong to this category.

Trash Pump

A trash pump uses larger internal passages and durable components to move dirty water containing solids.

Typical applications include:

• Construction excavations
• Muddy floodwater
• Ditches
• Gravel and stones
• Commercial dewatering
• Water containing unwanted debris

Honda’s WT20, WT30, and WT40 belong to this category.

Calling the WH15XTC a trash pump may cause a customer to use it in water it was not designed to handle. I would recommend changing the Arns product title to:

Honda WH15XTC 1.5-Inch High-Pressure Water Pump

The existing “Trash Pump” wording could still be mentioned in backend search terms or redirected metadata if necessary, but the visible page should accurately identify the equipment.

What to Know Before Buying the WH15XTC

It is not a trash pump

The WH15XTC is intended for relatively clean water. It does not have the solids-handling design of Honda’s WT construction pumps.

Its main advantage is pressure

Customers completing simple nearby water transfer may not benefit enough from the added weight compared with the WX15TCX.

Maximum flow and maximum pressure are not simultaneous

Delivered flow decreases as elevation, friction, and outlet pressure increase.

The pump housing must be primed

Self-priming does not mean dry-running. Fill the housing with clean water before starting.

The suction system must be airtight

Even a small suction-side air leak can prevent priming. Reinforced hose, secure clamps, clean sealing surfaces, and correct fittings are essential.

Hoses and fittings may be separate

Confirm whether the pump includes couplers, clamps, strainer, suction hose, discharge hose, and nozzle before purchase.

It is not a certified firefighting system

Honda notes that the pump can be used with a fire-hose-style nozzle for spraying, but that does not make it a certified firefighting pump. Always follow local rules and use approved equipment for emergency fire protection.

Building the Right Hose Package

A high-pressure pump needs a hose package suited to both vacuum and outlet pressure.

The suction side should include:

• Reinforced 1.5-inch suction hose
• Correct coupler or threaded adapter
• Secure clamps
• Honda-compatible suction strainer
• Airtight seals

The discharge side may include:

• Pressure-rated 1.5-inch hose
• Irrigation adapters
• Valves
• Sprinkler connections
• Compatible nozzles
• Camlock couplers

Do not use a lightweight hose above its rated working pressure.

Before ordering, confirm:

• Port thread type
• Hose diameter
• Required hose length
• Maximum operating pressure
• Intended fittings
• Elevation change
• Water source condition

The Arns water-pump collection provides a starting point for pump and accessory selection.

Operating Safety

Portable gasoline pumps combine water, fuel, hot exhaust, pressure, and moving equipment.

Operators should:

• Run the pump outdoors only
• Keep exhaust away from people, doors, windows, and vents
• Place the pump on firm, level ground
• Allow the muffler and engine to cool before refuelling
• Keep fuel away from ignition sources
• Secure discharge hoses
• Release system pressure before disconnecting fittings
• Keep children and pets away
• Wear eye protection, hearing protection, gloves, and suitable footwear
• Avoid standing in unstable or contaminated water
• Never drink water that has passed through the pump

A pressurized hose can move violently if a fitting comes loose. Couplings, clamps, and nozzles should be inspected before every use.

Maintenance

Routine maintenance helps preserve engine reliability, pumping pressure, and priming performance.

Important tasks include:

• Checking engine oil before use
• Changing oil at Honda’s recommended intervals
• Inspecting the air filter
• Checking the spark plug
• Using fresh gasoline
• Inspecting the suction strainer
• Checking hoses and fittings
• Cleaning the pump housing
• Inspecting the mechanical seal for leakage
• Keeping engine cooling openings clear
• Checking mounting hardware
• Draining the pump after use in freezing conditions

A sudden loss of pressure may be caused by:

• An air leak
• A blocked strainer
• Excessive suction lift
• An obstructed nozzle
• A collapsed suction hose
• Low engine speed
• Impeller wear
• Mechanical-seal problems
• Insufficient priming water

The pump should be shut down if it develops unusual vibration, severe leakage, abnormal noise, or a sudden loss of output.

Winter Storage in Canada

Any water left inside the pump, hoses, fittings, or nozzle can freeze and cause damage.

Before winter storage:

• Drain the pump housing completely
• Drain all hoses and accessories
• Clean the suction strainer
• Follow Honda’s fuel-storage instructions
• Inspect or change engine oil
• Clean the air filter
• Check for leaks
• Protect open ports from dirt and pests
• Store the pump in a dry location
• Keep it away from ignition sources

A pump used during freezing weather should be drained promptly after shutdown rather than left outside with water inside the housing.

Why Buy Your Honda WH15XTC From Arns?

Arns Equipment is a family-owned Honda Power Equipment dealer serving Calgary, Southern Alberta, and customers across Canada. Our team brings more than 80 years of outdoor power equipment experience to pump selection, service, and parts support.

Our team can help you:

• Confirm whether you need a transfer, high-pressure, or trash pump
• Compare the WH15XTC with the WX15TCX and WH20XTC
• Determine whether dirty water requires a WT-series construction pump
• Estimate the effect of hose length and elevation
• Select compatible suction and discharge hoses
• Match strainers, clamps, adapters, and camlocks
• Review irrigation and sprinkler requirements
• Source Honda maintenance and repair parts
• Arrange local Honda warranty support and professional service
• Avoid purchasing a pressure pump for an application that requires solids handling

Honda backs its pump lineup through its Canadian dealer network, with genuine parts and trained service support available to help maintain original operating specifications.

For acreage owners, landscapers, agricultural operators, and contractors who need strong clean-water flow combined with pressure for irrigation, longer hoses, or compatible nozzles, the Honda WH15XTC offers an excellent balance of portable GX power, 1.5-inch capacity, and up to 55 psi of high-pressure performance.
